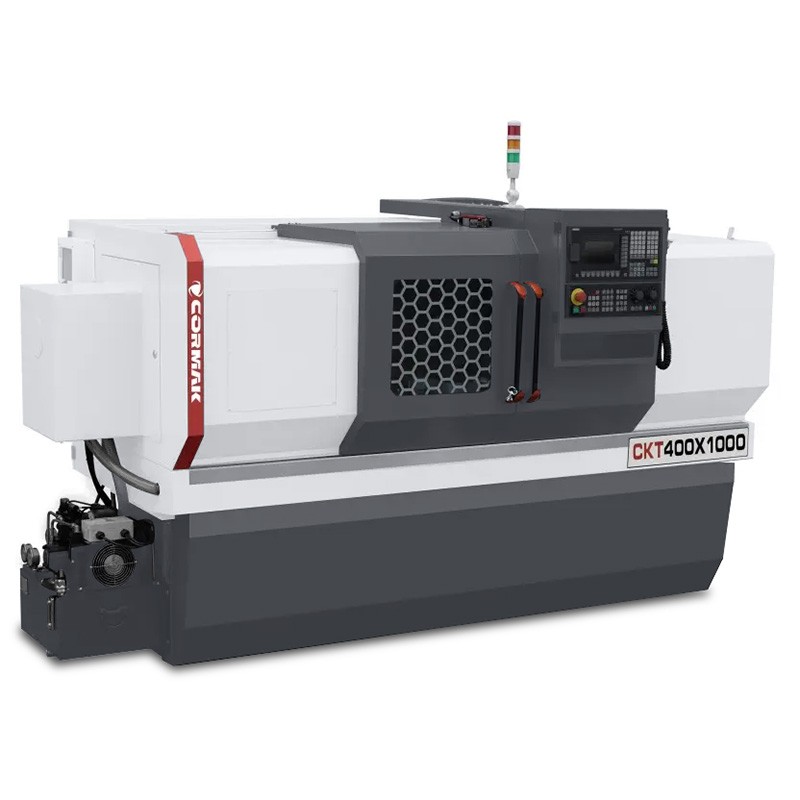

CKT 400x1000 CNC lathe with driven tool – precision and efficiency in metal machining

CKT 400x1000 CNC lathe is an advanced numerically controlled lathe designed for precision machining of metal workpieces in medium and large production plants. Equipped with Siemens Sinumerik 808D control, it offers reliability, high accuracy and ease of operation, meeting the requirements of modern industrial processes.

Main advantages of the CKT 400x1000 CNC lathe

with driven tool

CKT 400x1000 CNC metal lathe is a professional solution for industry, combining advanced technology with solid construction, dedicated to plants requiring precision machining. As an industrial lathe, it enables complex operations such as turning external, internal and spherical surfaces, threading, drilling, plunge cutting and contouring, ensuring the highest workpiece quality. Its key benefits include:

• High machining precision: Maximum turning diameter over the bed of 400 mm and over the carriage of 210 mm, with a minimum setting unit of 0.001 mm on the X and Z axes, guarantees exceptional workpiece accuracy.
• Flexible spindle: Speed range of 0-2000 rpm, spindle bore of 52 mm with the option of 72 mm and MT6 taper enable machining of a wide range of materials, from steel to light alloys.
• Intuitive control: The Siemens Sinumerik 808D system with Siemens servo drives offers a dedicated mode for users of conventional machines, minimising the entry barrier to CNC work.
• Rigid construction: Net weight of 2000 kg and packaging dimensions of 2640x1500x1770 mm ensure stability when machining workpieces up to 1000 mm long.
• Tooling efficiency: 4-position tool post with the option of 6 or 8 positions, 20x20 mm tools with the option of 25x25 mm, and a driven tool head speed up tool changes, shortening the production cycle time.
• Quick setting: Enables convenient setting of tools and zero points, as well as corrections without the need to write a programme, ideal for one-off production.
• Increased safety: Jog movements and speed limitation allow precise and safe machine manoeuvring, minimising the risk of errors.
• Component durability: The automatic lubrication system for the gearbox and guideways reduces wear, extending the machine’s service life.
• Optimal cooling: The cooling system ensures thermal stability, protecting tools and workpieces during intensive machining.
• Versatile applications: Designed for precision turning in the mechanical, automotive and toolmaking industries, both in series and small-batch production.
• Operating economy: The main motor with 5.5 kW power and 6 Nm feed motors combines high performance with low energy consumption.
• Integration with technological cycles: Cooperation with machining cycles such as facing, taper turning, threading or drilling requires only basic parameters to be entered, without knowledge of G-codes.
• Personalisation option: A wide range of options, such as Fanuc Oi-TF control, hydraulic chuck, bar feeder or CAD/CAM software, allows the machine to be adapted to specific requirements.
• European safety standards: The CE declaration of conformity confirms compliance with strict occupational safety standards.

Construction and technology of the CKT 400x1000 CNC lathe

with driven tool

CKT 400x1000 industrial CNC lathe has been designed for reliability and precision in demanding production conditions. Key construction elements include:

• Solid machine bed: Rigid construction with a net weight of 2000 kg minimises vibration, ensuring stability during machining.
• High-performance spindle: Bore of 52 mm with the option of 72 mm, MT6 taper and speed of 0-2000 rpm enable machining of various workpieces
• Tool post: 6-position with the option of 8, with 25x25 mm tools, ensures quick tool changes and operational flexibility.
• Hydraulic tailstock: With sleeve taper MT5 and maximum travel of 120 mm, supports precise workpiece support.
• Manual lathe chuck: Ensures secure workpiece clamping, with a hydraulic option for increased efficiency.
• Siemens servo drives: Guarantee smooth movement and high positioning accuracy (0.001 mm).
• Automatic lubrication system: Central lubrication of the gearbox and guideways reduces component wear.
• Cooling system: Maintains the optimum temperature, improving machining quality and tool life.
• 24V halogen lighting: Provides excellent visibility of the working area, increasing safety and precision.

Precision and work efficiency

CKT 400x1000 numerically controlled lathe offers exceptional precision thanks to Siemens Sinumerik 808D control and Siemens servo drives with a torque of 6 Nm on the X and Z axes. Advanced fixed cycles, such as facing, taper turning, threading, plunge cutting and contouring, simplify programming and shorten machining time. Positioning accuracy of 0.001 mm on the X and Z axes, X-axis movement speed (8 m/min) and Z-axis movement speed (10 m/min), as well as integration with technological cycles, ensure high-quality workpieces up to 400 mm in diameter and 1000 mm in length.

Application of the CKT 400x1000 CNC metal lathe

CNC metal lathes such as the CKT 400x1000 are used in various industrial sectors, including:

• Mechanical industry: Production of shafts, sleeves, flanges and precision components.
• Automotive industry: Machining of engine, gearbox and suspension system components.
• Toolmaking industry: Producing threads, grooves and workpieces with complex geometries.
• Series and small-batch production: Ideal for medium-series production and quick manufacture of single workpieces in R&D plants.

The machine is an excellent choice for plants looking for a versatile and reliable CNC lathe.

Standard equipment

• Control SIEMENS SINUMERIK 808 Advanced
• Siemens servo drives
• Manual lathe chuck
• 4-position tool post + driven tool
• Set of soft jaws
• Hydraulic tailstock with MT5 sleeve
• Cooling system
• Automatic gearbox and guideway lubrication system
• 24V halogen lighting
• User manual
• CE declaration of conformity

Optional equipment

• Hydraulic lathe chuck
• 6- and 8-position tool post
• Travelling steady rest
• Fixed steady rest
• Additional soft jaws
• Hard jaws
• Tool holders
• CAD/CAM software

*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.

Technical parameters

CNC controls – Siemens Sinumerik 808D, SINUMERIK 828D and Fanuc Oi-TF

CORMAK 400x1000 LT1 CNC lathes are equipped with professional control systems from renowned manufacturers Siemens, Fanuc and GSK. They provide precision, reliability and flexibility in adapting to various production requirements, from simple operations to complex machining processes.

Siemens Sinumerik 808D – compact CNC control for basic applications

Siemens Sinumerik 808D is an economical CNC control dedicated to entry-level lathes and milling machines, ideal for small and medium-sized plants. Its key features include:

• Intuitive operation: The graphical interface and Teach-In function make programming easier, reducing operator learning time to a minimum.
• High reliability: Durable construction resistant to dust and moisture, ensuring stability in difficult workshop conditions.
• Compatibility: Dedicated to machines with standard requirements, with easy integration of SIEMENS servo drives.
• Cost optimisation: Low energy consumption and minimal servicing requirements, ideal for beginner CNC users.

CNC controls – Siemens and Fanuc

CORMAK 400x1000 LT1 CNC lathe offers advanced CNC control systems such as SIEMENS SINUMERIK 808 Advanced, Siemens Sinumerik 828D, and Fanuc Oi-TF, which provide precision, reliability and ease of operation:

SIEMENS SINUMERIK 808 Advanced

• Intuitive interface: Easy to use, ideal for smaller workshops and beginner users.
• Reliability: Durable construction resistant to difficult industrial conditions.
• Economy: Dedicated to basic turning and milling applications.

Siemens Sinumerik 828D

• High computing power: Enables dynamic machining and handling of complex cycles.
• CAD/CAM integration: Facilitates cooperation with design software.
• Advanced functions: Tool path optimisation and the possibility of expansion with additional modules.

Fanuc Oi-TF

• Stability: Reliability in series production and long-term operation.
• Advanced turning cycles: Ideal for precise cutting operations such as thread turning and grooving.
• Intuitive operation: Clear interface speeds up programming.

User manuals

SIEMENS SINUMERIK 828/840

Download manual

SIEMENS SINUMERIK 808

Download manual

Trust CORMAK’s experience

With over 20 years of experience in supplying industrial machines, CORMAK offers reliable CNC metal lathes and comprehensive technical support. Our machines meet European safety standards, while professional warranty and post-warranty service ensures production continuity.

• 16 years of experience in servicing Siemens CNC controls.
• Approximately 12,000 machines and devices are available across more than 15,000 m² of warehouse space.
• We provide professional warranty and post-warranty service.
• By choosing CORMAK, you can be confident you are purchasing a machine with European safety approvals.
