Main advantages of the machine – practical benefits in everyday work. Laser indicator – clear guidance along the cutting line, faster workpiece positioning and reduced operator errors.
- Quick blade tensioning / release lever – efficient blade replacement and reduced servicing downtime.
- Cast-iron work table – stable material support and reduced vibration, directly improving edge quality.
- Table tilt adjustment 0–45° – enables angled cuts while maintaining cutting geometry.
- Cutting range 220/335mm – enables convenient work with larger-section components such as squared timber, beams and blanks.
- 230V power supply – easy installation in the workshop without requiring a three-phase power supply.
Construction and technology – detailed technical section

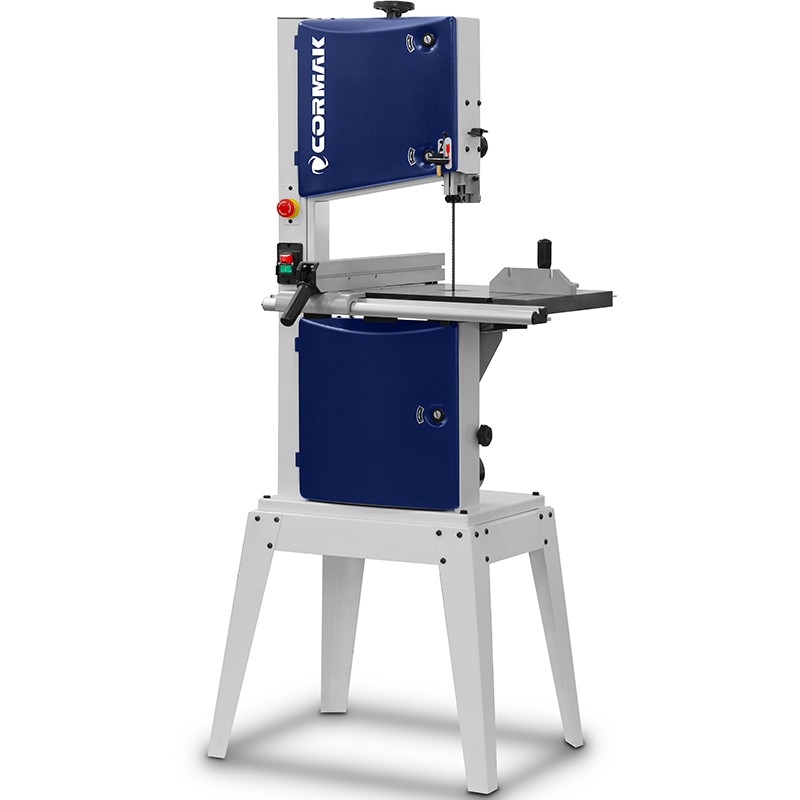

The CORMAK HBS321 vertical wood bandsaw operates in a vertical configuration, giving the operator full control over guiding the material across the table. A key component is the stable frame, which maintains the geometry of the wheel and guide system, resulting in smooth blade travel and a repeatable cutting line. In practice, this means a lower risk of the blade wandering, which is particularly important when cutting harder types of wood and when working at greater cutting heights.
350mm wheels and blade tracking control
The use of wheels with a diameter of 350mm improves blade stability and reduces localised blade stress. Combined with correct tensioning, this contributes to:
- better surface quality after cutting (less tear-out and edge waviness),
- greater repeatability when producing series of components,
- longer blade service life thanks to more stable operation.
Cast-iron work table and angle settings
The wood bandsaw has a work table measuring 545 x 400mm, providing an adequate support surface for the workpiece, which is essential for precise straight and angled cuts. The table can be tilted within a range of 0–45°, enabling angled cuts without the need for additional attachments. Cast iron effectively dampens vibration, helping the bandsaw maintain stable operating parameters.
Drive and operating parameters
The woodworking bandsaw has a motor with a total power of 1.1kW, providing stable operation for typical woodworking tasks such as ripping, trimming, preparing components for gluing and assembly, and contour cutting. The use of blades with widths from 6–15mm allows the blade to be selected according to the type of work – from precise curved cuts to straight cuts requiring greater guidance stability.
Laser – improved control and reduced material waste
The laser indicator supports quick material positioning and helps maintain the cutting path. In practice, this means fewer test cuts, reduced material consumption and easier work with components requiring precise guidance, such as profiled parts and shaped cut-outs.
Precision and work efficiency
In professional applications, not only cutting capability but also repeatability is important. The rigid construction, stable table and quick blade adjustment reduce machine set-up time and the number of corrections required during subsequent processing stages such as planing, sanding and fitting. As a result, the CORMAK HBS321 bandsaw supports a smooth workflow and improves process efficiency.
Applications
The HBS321 wood bandsaw has been designed for a wide range of woodworking tasks involving wood and wood-based materials, including:
- cutting boards, squared timber, beams and glued components,
- trimming furniture and joinery components,
- angled cutting using the table tilt,
- cutting shapes and profiled components,
- workshop use in joinery shops, craft workshops and training workshops.
Technical specifications
| Wheel diameter [mm] |
350 |
| Maximum cutting height [mm] |
175 |
| Maximum cutting width [mm] |
300 |
| Work table dimensions (L x W) [mm] |
500 x 400 |
| Work table tilt [°] |
0 to +45 |
| Blade width [mm] |
6 to 15 |
| Blade length [mm] |
2240 |
| Blade speed [m/s] |
6 / 12 |
| Dimensions (L x W x H) [mm] |
750 x 650 x 1730 |
| Gross weight [kg] |
88 |
| Motor power [kW] |
S1 – 0.75kW / S6 – 1.1kW |
| Power supply [V] |
230 |
| User manual |
|
| CE Declaration |
yes |
Standard equipment
- on/off switch with undervoltage release
- quick blade tensioning / release lever
- precision fence
- saw blade
Looking for a reliable bandsaw for woodworking in your workshop? Choose the HBS321 wood bandsaw by CORMAK and match the accessories to your type of work. Contact us – we will prepare an offer, help you select the appropriate blade and advise on a configuration for specific applications.
