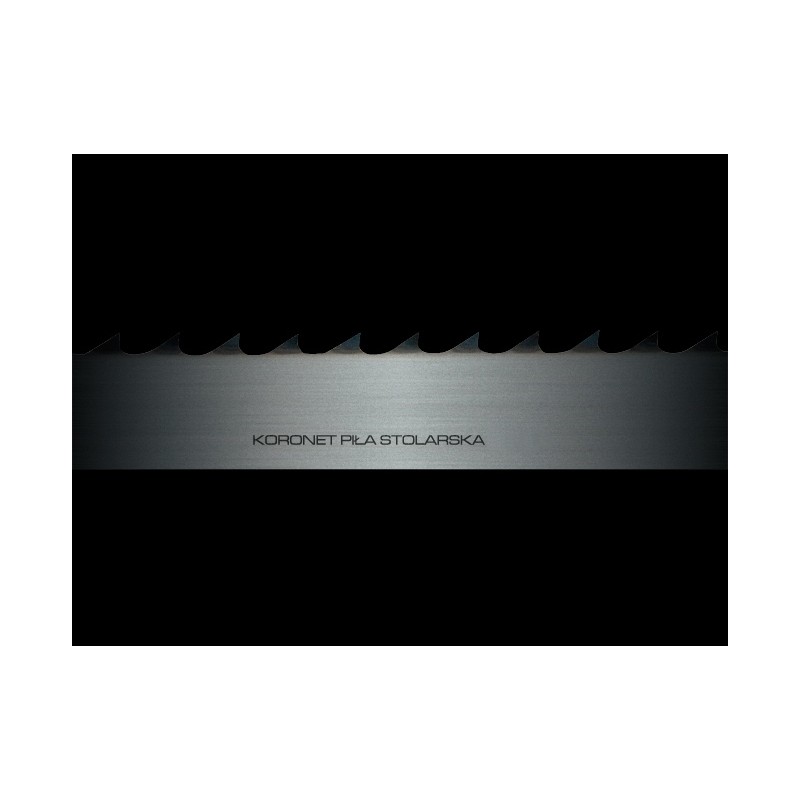

Woodworking Bandsaw Blade

The bandsaw blade is made of alloy steel with added chromium and vanadium.

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

To use the VIES group, you must have a VAT number.

Yes - show prices with VAT 0%

Product available on request. Please contact our sales department.

Are you interested in this product?

Ask for price

I agree to the terms and conditions and the privacy policy

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Application

The blade is designed for cutting all types of wood both along and across the grain. Recommended for cutting softwood and hardwood, plywood, chipboard and fibreboard (version with hardened teeth).

Blade Characteristics

Blade tension	100–120 MPa
Stress	approx. 10 tonnes
Tooth set	0.3–0.8/side (set at half the height measured from the tip)
Blade operating time	5–7 hours + 12 hours blade rest
Cutting speed	20–35 m/s
Sharpening	recommended grinding wheels: dry – ceramic wheel 95A80K (or L) wet – resin wheel 95A80L (or N)
Hardened tooth hardness	58–60 HRC
Unhardened tooth hardness	41–44 HRC
Backing strip hardness	41–44 HRC

The thickness of the cutting band is calculated using the formula: s = diameter of driving wheel (mm) / 1000

			tooth set			minimum
b [mm]	s [mm]	t [mm]	hard	medium	soft	radius [mm]
10	0.6	6.3	0.3–0.4	0.4–0.5	0.5–0.6	50
15	0.7	6.3	0.3–0.4	0.4–0.5	0.5–0.6	100
20	0.7	8	0.3–0.4	0.4–0.5	0.5–0.6	150
25	0.7	8	0.3–0.4	0.4–0.5	0.5–0.6	200
30	0.8	10	0.3–0.4	0.4–0.6	0.5–0.7	300
35	0.8	10	0.3–0.4	0.4–0.6	0.5–0.7	400
