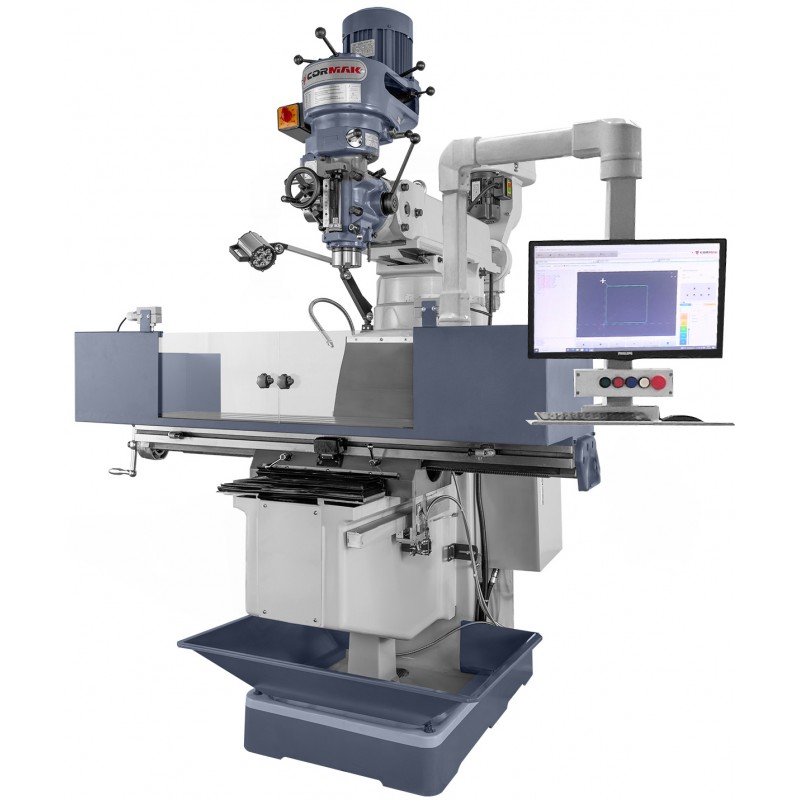

CNC Milling Machine CORMAK MILL 854
The CNC milling machine is based on a solid construction, designed for precise metal machining with full numerical control. The machine is equipped with axis drives and a modern CNC controller that allows generating, editing, and executing machining programs (G-code). Thanks to its rigid structure and tilting head, it is ideal for unit and small-batch production, both in toolrooms and production workshops.
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€21,094.50
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Main Technical Parameters
|
Technical Specifications | |
|---|---|
|
CNC control |
3-axis (X/Y/Z), linear and circular interpolation |
|
Axis drives |
Servo drives |
|
Travel of X axis |
850 mm |
|
Travel of Y axis |
400 mm |
|
Travel of Z axis |
420 mm |
|
Worktable |
1370 × 254 mm |
|
Spindle taper |
ISO 40 |
|
Spindle speed range |
(16 gears) 65–4500 rpm |
|
Spindle power |
2.25 kW / 3 kW |
|
Head tilt |
±90° (left/right), ±45° (front/back) |
|
Lubrication |
Central, automatic |
|
Cooling system |
Coolant pump with adjustable flow |
|
Feed motions |
Automatic on all axes |
|
Machine dimensions |
1960 × 1750 × 2250 mm |
|
Weight |
1550 kg |
|
Power supply |
400 V / 50 Hz |
Equipment and CNC Functions
- Automatic feed on all axes
- Possibility to import programs from external sources (USB/LAN – depending on controller type)
- Technological cycle functions: facing, pocketing, drilling, tapping, contouring
- Tool cooling with coolant pump
- Central lubrication of guideways and ball screws
- Electronic and mechanical limit switches
Applications
The machine is widely used for the production of precision steel, aluminium and plastic components — especially in prototyping and small-batch production where setup flexibility and high accuracy are crucial. CNC control makes this design significantly more efficient than the manual version, with full automation of operation and elimination of errors associated with manual handling.
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
Related categories
Are you interested in this product?
Contact with us
phone: +48 501 944 934
export@cormak.pl
phone: +48 609 939 400
export@cormak.pl
phone: +48 609 939 051
export@cormak.pl
phone: +48 609 939 741
export@cormak.pl
You might also like
Milling Machine Starter Tool Set ISO40
Comprehensive starter tool set designed for milling machines with ISO40 spindle taper . The kit includes a complete range of essential tools for machining, drilling, threading, and milling operations. Perfect for workshops and production facilities starting work with ISO40 milling machines. ...More
Cobalt Drill Bit Set CORMAK HSSE TiN 1–13mm 25pcs
The HSSE TiN cobalt drill bit set (1–13mm, 25 pieces) is a complete toolkit for drilling steel, cast iron and hard-to-machine materials. The TiN (titanium nitride) coating increases wear resistance and extends drill life. Ideal for workshops and industrial applications — ensuring precision and durability in everyday work. ...More
Tilting and Swivel Machine Vice CORMAK QHK100
The CORMAK QHK100 vice is made of high-grade cast iron. Its precise guidance makes this tilting and swivel machine vice ideal for precision engineering. The 360° swivel base allows horizontal rotation, while the 90° tilting cradle enables vertical adjustment. The hardened (55±3 HRC) and ground ...More
Tilting and Swivel Machine Vice CORMAK QHK160
The CORMAK QHK160 vice is made of high-grade cast iron. Its precise guiding system makes this tilting and swivel machine vice ideal for precision engineering. The 360° swivel base enables full horizontal rotation, while the 90° tilt allows accurate vertical adjustment. Hardened (55±3 HRC) and ...More
Tilting and Swivel Machine Vice CORMAK QHK125
The CORMAK QHK125 vice is made of high-grade cast iron. Its precise guiding system makes this tilting and swivel machine vice ideal for precision mechanics. The 360° swivel base allows horizontal rotation, and the 90° tilting cradle enables vertical adjustment. The tool-steel jaws are hardened ...More
7 other products in the same category:

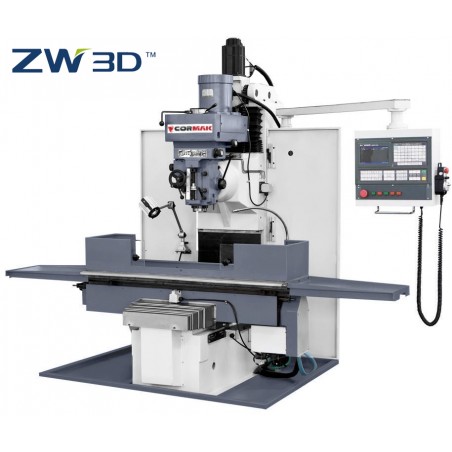

CNC Milling Machine CORMAK VM1370
The CORMAK VM1370 CNC Milling Machine is an industrial-grade universal milling machine designed for heavy-duty applications, workshops, toolrooms and maintenance departments. Equipped with a horizontal spindle and a swivelling vertical head, it provides excellent flexibility in machining. The ...More

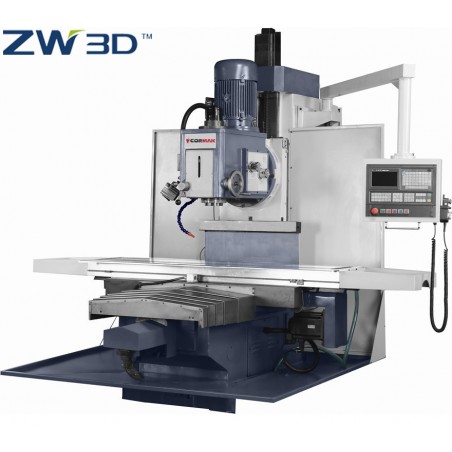

CNC Milling Machine CORMAK MILL 1500++ with Swivelling Head
