Laser cutting machines are modern devices that stand out for their numerous advantages. They are not only an excellent and much more cost-effective alternative to CO2 technology but also have many benefits that allow production to increase by up to 70% and improve quality. FIBRE technology enables cutting sheets and other materials of various thicknesses – from very thin to very thick. The wavelength in the FIBRE laser is 1.064 micrometres, providing an intensity 100 times greater than that of CO2 devices of comparable power.
MAIN ADVANTAGES OF THE LASER
- maintenance-free fibre source
- no wearing components
- fibre laser source takes up around one-third less space
- high energy efficiency – 100,000 h of operation
- universal application (special steels, mild and stainless steel, copper, brass, aluminium, titanium)
Fibre laser
- increases productivity by 80%
- reduces maintenance costs by 70%
- saves 80% of energy
- minimises gas consumption
- saves 30% of workshop space
Dual Functionality and Cost Efficiency

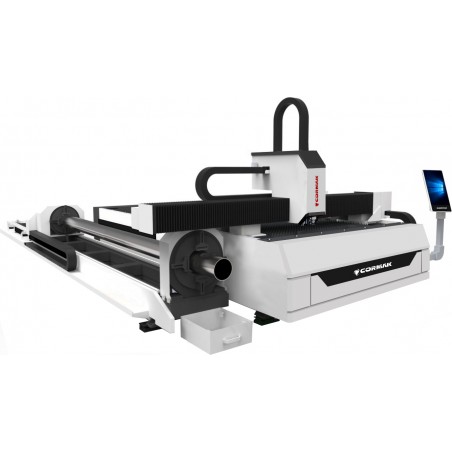

The LF3015EPR fibre laser cutting machine not only cuts sheet metal but also tubes and profiles. It offers a wide range of applications and saves over 50% of floor space, effectively increasing productivity.
Electric Clamping Chuck
The chuck holds the profile in two directions and automatically aligns it. The diagonal adjustment range is 20–170 mm.
Welded Bed Made of Rectangular Profiles
The bed structure features an internal honeycomb design made of welded rectangular tubes. Stiffeners inside the tubes enhance the bed’s strength and improve rigidity and guide rail stability, effectively preventing deformation. High tensile strength and stability ensure up to 20 years of use without distortion.
Automatic Tube Support
The intelligent tube support system eliminates deformation problems during the cutting of long pipes.
Raytools Cutting Head
- Automatic Focus Adjustment – Autofocus – The software automatically adjusts the focusing lens during the cutting of materials of varying thicknesses. The autofocus speed is ten times faster than manual adjustment.
- Extended Manual Adjustment Range – Adjustment range: -10 mm to +10 mm, accuracy 0.01 mm, suitable for materials of 0–20 mm thickness – for powers below 1500W.
- Long Service Life – Collimating and focusing lenses are equipped with water-cooled radiators to reduce head temperature and extend the cutting head’s lifetime.
Technical Parameters
| WORKING AREA |
1500x3000
|
| POWER |
2000W
|
| REPEATABLE POSITIONING ACCURACY |
±0.02 mm/m |
| MAXIMUM SPEED |
50 m/min |
| POWER SUPPLY |
400V 50Hz |
Cutting Parameters
Actual parameters may vary depending on technical conditions and materials used.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
