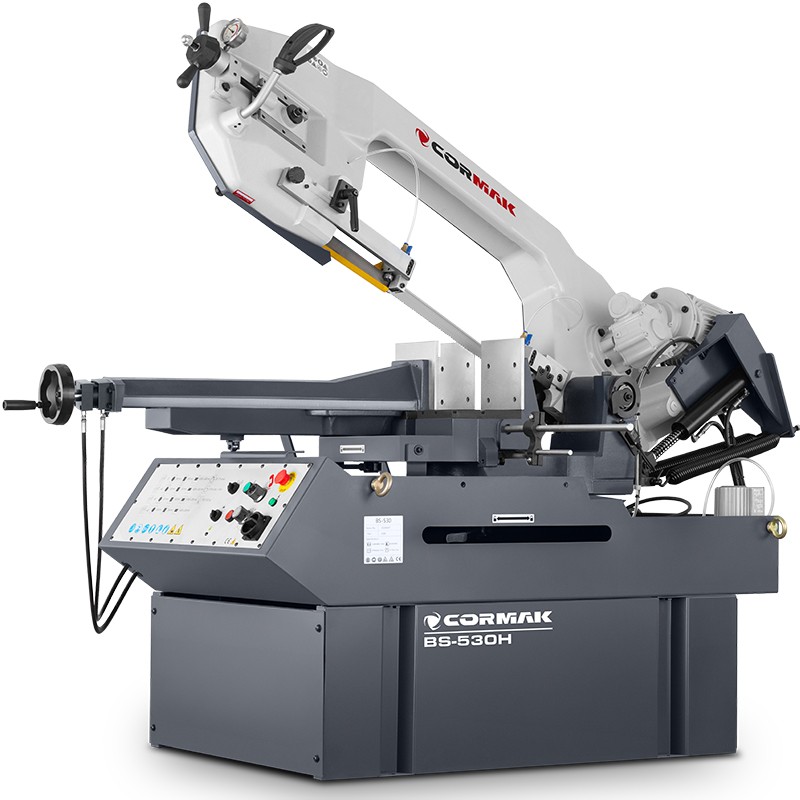

CORMAK BS-530H semi-automatic band saw

The outstanding features of the cutter are:

• The cutting band tensioner wheel is equipped with a dial strain gauge that indicates the appropriate band tension, which translates into optimal work results and blade durability.
• Stable cutter arm made of cast iron, resistant to torsion, with high-quality drive wheels.
• Precise power transmission thanks to high-quality hardened and ground gear.
• Powerful engine, adapted to cutting various materials of various sizes.
• High-quality hydraulic system that allows you to raise and lower the arm.
• Integrated roller-carbide system, ensuring safe guidance of the cutting band, with an adjustable guide adapted to the width of the cut detail.
• Convenient control panel with clear buttons, including: main switch, on/off, cutting speed adjustment, clamp/vise and arm raise/lower. Additionally, the device is equipped with an emergency switch that meets the latest EU safety standards.
• Massive vice with quick opening adjustment, can be moved to both sides.
• The saw arm can be tilted from -45° to +60° with a reading on the scale.
• The set includes a removable roller that holds the workpieces in front of the vice, as well as strong springs supporting the movement of the saw arm and a material stop for cutting.
• Possibility of clamping the vice manually or hydraulically using the control panel.
• Solid body made of cast iron, which guarantees stiffness and the highest cutting quality.
• Effective cooling system built into the base of the saw.
• Cutting arm lock for extra safety.
• An additional panel allows smooth control of the saw arm lowering speed and is equipped with an additional safety switch.
• A stable base allows you to work at a comfortable height of approximately 95 cm.

Additional advantages of a band saw are:

• Stepless belt speed regulation (20 / 70 m/min).
• The tape guides are equipped with special carbide plates and bearings, which guarantee high cutting precision.
• Semi-automatic mode, ideal for series production.
• Possibility to choose cutting mode, manual or semi-automatic.
• Quick-clamping vice adjustable manually or hydraulically.
• This is a professional device with an excellent price-quality ratio.
• The solid construction ensures precise and quiet operation without vibrations.
• A precise worm gear guarantees perfect power transmission.
• Saw arm adjustment using a hydraulic cylinder.

Working in semi-automatic mode includes hydraulic vice clamping, hydraulic saw arm lowering and saw arm raising, which makes using this saw really convenient and efficient.

Technical data

Cutting parameters
