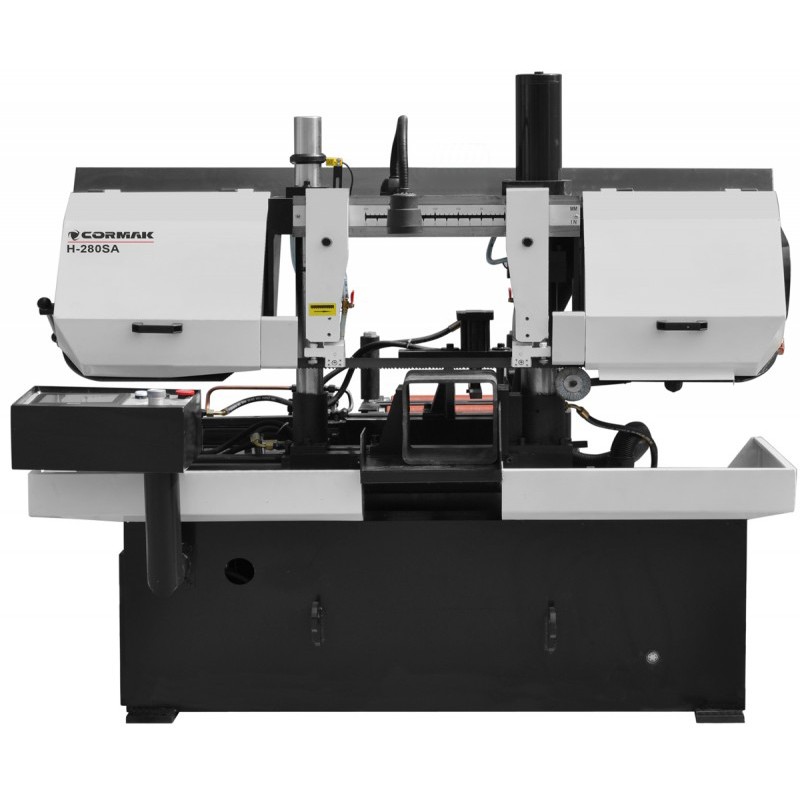

Automatic Bandsaw CORMAK H280SA
The CORMAK H280SA automatic bandsaw is a precision industrial machine designed for cutting metals with round, rectangular and closed profiles. Its robust double-column structure provides high rigidity of the cutting system, ensuring long service life without loss of accuracy. The machine offers a full automatic cycle, ideal for serial production, fabrication shops and steel processing plants.
Main Advantages
- Automatic operation allowing cutting without operator supervision
- Double-column bandsaw ensuring stable cutting performance
- Accurate blade guidance with bearings and carbide guides
- Hydraulic feed system providing ±0.2 mm precision
- Rigid construction with cast-iron base and welded frame
Design and Technology
The construction of the saw is based on a heavy-duty steel frame and a solid cast-iron body, ensuring vibration resistance and durability. The hydraulic lifting and lowering system of the saw arm enables smooth and precise operation. An integrated chip removal and coolant system further extends the lifespan of the bandsaw blade.
Precision and Efficiency
The CORMAK H280SA automatic bandsaw features a quick-feed mechanism and an LCD electronic control panel. Programming of cut length and piece quantity is intuitive, and stored cutting parameters allow for production repeatability. The machine automatically stops after completing the programmed batch, in the event of blade breakage, or in case of an error, which reduces downtime and improves operational efficiency.
Applications
The H280SA model is the perfect solution for companies engaged in serial production of steel components, cutting of profiles and structural tubes, steel beams, aluminium, and non-ferrous metals. This metal bandsaw performs excellently in industrial facilities and specialist workshops where repeatability and cutting accuracy are essential.
Technical Data
| Cutting range |
Ø260 mm or 260 × 260 mm |
| Blade size |
3150 × 27 × 0.9 mm |
| Blade speed |
40 / 60 / 80 m/min |
| Total power |
3 kW |
| Hydraulic motor |
0.75 kW |
| Coolant pump |
0.09 kW |
| Feeder stroke |
500 mm |
| Load capacity |
1500 kg |
| Machine dimensions |
1600 × 1800 × 1550 mm |
| Weight |
1000 kg |
Standard Equipment
- Full automatic cycle
- Hydraulic vice and arm system
- Touchscreen LCD control panel
- Arm and vice position memory
- Powered blade cleaning brush
- Coolant circulation system
- Bimetal bandsaw blade
- CE Declaration of Conformity
- Technical and Operation Manual (User Manual)
Optional Equipment
- Adjustable-height roller conveyors
The CORMAK H280SA automatic bandsaw is an investment in precision, efficiency and reliability. Contact us to configure the machine according to your production requirements.
