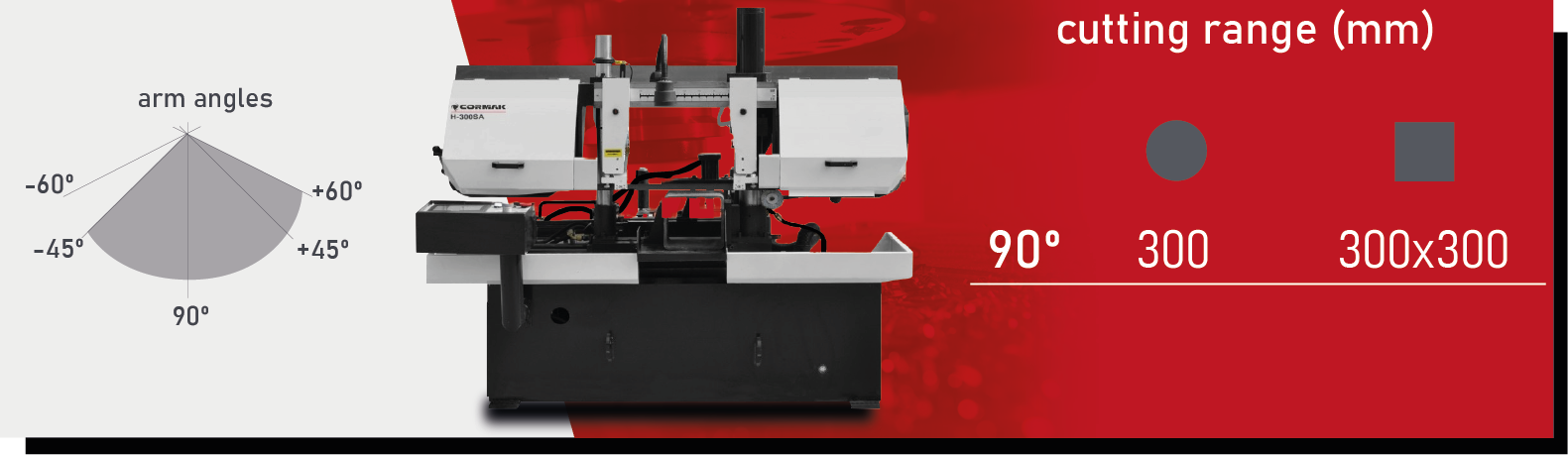

Automatic Bandsaw CORMAK H300SA – Precision and Efficiency in Metal Cutting
The CORMAK H300SA automatic bandsaw is an advanced industrial-grade machine for professional cutting of solid materials, steel profiles and tubes. Featuring a rigid structure, top-quality components and a fully automated cutting process, this model is perfectly suited for production facilities, metalworking shops and machining centres where repeatability, precision and productivity are essential.
Main Advantages
- Fully automatic operation – the entire cutting cycle runs without operator involvement.
- Hydraulic vice and material feed – enhanced efficiency and safety.
- Double-column design – ensures high rigidity and cutting precision.
- Position memory system for arm and vice – reduces cycle time and improves repeatability.
- Cooling and cleaning brush system – extends blade life and improves cutting quality.
Construction and Technology
The saw body is made of cast iron mounted on a rigid frame. The frame is inclined by 3°, which improves cutting performance when working with closed profiles. The carbide and bearing-based blade guides ensure stability and accuracy. The hydraulic feed system enables smooth and precise material movement of up to 500 mm per stroke.
Precision and Performance
The H300SA model features a hydraulic arm feed with stepless adjustment, allowing optimal cutting parameters for each material type. The integrated cooling system and powered cleaning brush significantly reduce blade wear, increase performance and minimise downtime. The automatic cutting cycle enables precise serial cutting with minimal operator supervision.
Applications
The CORMAK H300SA automatic bandsaw is an excellent solution for:
- Manufacturing companies cutting steel, cast iron and non-ferrous metals
- Steel construction workshops
- Steel stockholders and logistics centres
- Pipe and profile fabrication facilities
Standard Equipment
- Automatic operating mode
- Hydraulic vice and feed system
- Arm and vice position memory
- Powered blade cleaning brush
- Cooling system
- Bimetal bandsaw blade
- CE Declaration of Conformity
- Technical and Operation Manual (CE)
Technical Data
| Cutting range |
Ø 300 mm / 300 × 300 mm |
| Bundle cutting |
max 260 × 90 mm |
| Blade dimensions |
3505 × 27 × 0.9 mm |
| Blade speeds |
40 / 60 / 80 m/min |
| Arm feed |
hydraulic, stepless |
| Main motor power |
3.8 kW |
| Hydraulic power unit |
0.75 kW |
| Coolant pump |
0.09 kW |
| Feeder stroke |
500 mm |
| Load capacity |
1500 kg |
| Machine dimensions (L × W × H) |
1750 × 1950 × 1550 mm |
| Weight |
1200 kg |
Order the CORMAK H300SA automatic bandsaw and increase the productivity of your workshop. Contact our technical advisor or place your order online today!
