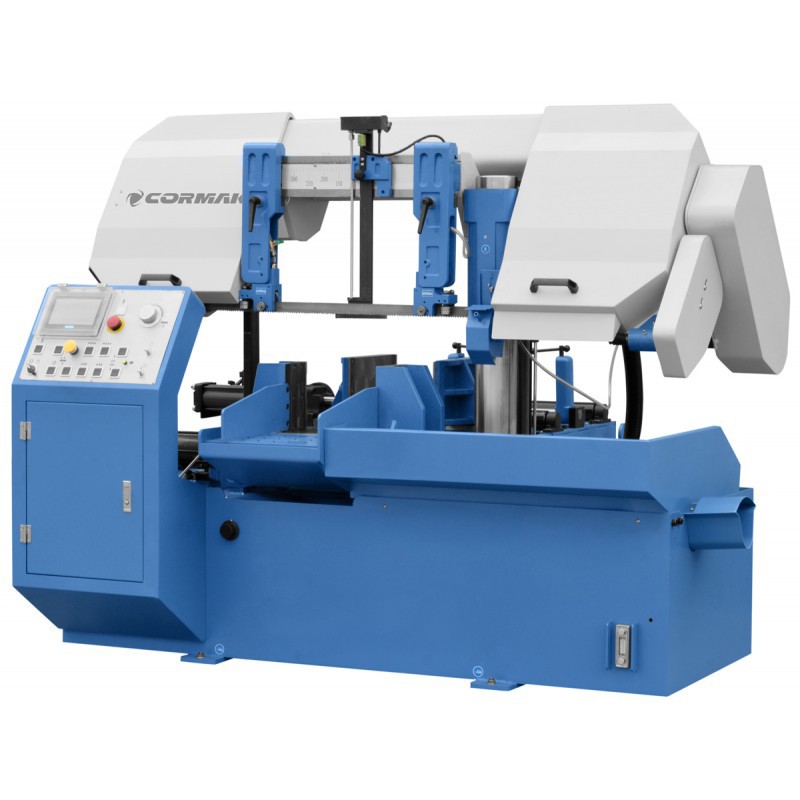

Automatic Double-Column Metal Bandsaw CORMAK C33
The CORMAK C33 automatic bandsaw is an advanced industrial-grade machine designed for precise and efficient metal cutting in both automatic and manual modes. Its double-column design ensures stability, while thoughtful construction and automation features provide accuracy, repeatability and reduced production downtime.
Variant
Automatic Metal Bandsaw CORMAK S200RHA
Automatic Metal Bandsaw CORMAK BS370SA
Automatic Double-Column Metal Bandsaw CORMAK H260SA
Automatic Double-Column Metal Bandsaw CORMAK H280SA
Automatic Double-Column Metal Bandsaw CORMAK H300SA
Automatic Double-Column Metal Bandsaw CORMAK H400SA
Automatic Double-Column Metal Bandsaw CORMAK H500SA
Automatic Double-Column Bandsaw CORMAK HR350SA
Automatic Double-Column Metal Bandsaw CORMAK HR500SA
Automatic Column-Type Metal Bandsaw CORMAK HR600SA
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€16,500.00
The lowest price of this product in the last 30 days before the discount was €16,500.00 gross
Shipping time:
7 working days after receipt of payment
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Automatic Bandsaw CORMAK C33
The CORMAK C33 automatic bandsaw is a technologically advanced industrial machine designed for precise and efficient metal cutting in both automatic and manual operation. The double-column structure ensures stability, and its robust design combined with automation functions delivers repeatability, precision and reduced production downtime.
Main Advantages of the Machine
- Automatic cutting cycle with programmable number and length of cut pieces
- Touchscreen LCD control panel for intuitive operation
- Material feed accuracy up to 0.2 mm with a 500 mm feed stroke
- Double-column design ensuring stable arm movement and smooth cutting action
- Hydraulic feed and fixed vices for a firm and secure grip
Design and Technology
The body of the CORMAK C33 automatic bandsaw is made of a cast-iron frame mounted on a rigid spatial base. The 3° inclined saw frame allows for more efficient cutting of tubes and profiles. The hydraulic blade tensioning system ensures optimal cutting conditions, while precision guides with bearings and carbide inserts guarantee top cutting quality.
Precision and Work Efficiency
The quick feed system, adjustable arm descent, and advanced control system enable fast and repeatable cutting even in large production series. The cooling system and powered blade cleaning brush effectively extend the lifespan of the cutting tool.
Applications
The C33 model is a versatile metal bandsaw designed for serial production and steel structure workshops. It is ideal as a bandsaw for pipes and profiles, solid materials, and serial cutting in automated operation.
Technical Data – CORMAK C33 Bandsaw
| Type | automatic double-column |
| Arm lifting and lowering | hydraulic with stepless adjustment |
| Blade speed | 25 / 40 / 58 / 80 m/min |
| Feed and fixed vice | hydraulic |
| Minimum cutting diameter | 5 mm |
| Minimum material length in vice | 30 mm |
| Vice base height | 780 mm |
| Blade size | 34 × 1.1 × 4115 mm |
| Total power | 6 kW |
| Hydraulic unit power | 1.5 kW |
| Coolant pump power | 0.75 kW |
| Machine dimensions (L × W × H) | 2300 × 2400 × 1650 mm |
| Weight | 1900 kg |
Standard Equipment
- Automatic operation cycle
- Touch control panel with LCD display
- Memory for up to 5 cutting programs
- Programming of number and length of cut pieces
- Electronic blade speed readout
- Hydraulic vices with position memory
- Powered blade cleaning brush
- Cooling system
- Bimetal bandsaw blade
- CE Declaration of Conformity
- Technical and Operation Manual (User Manual)
Choose professionalism and reliability. Opt for the CORMAK C33 automatic bandsaw and optimise your company’s cutting processes!
