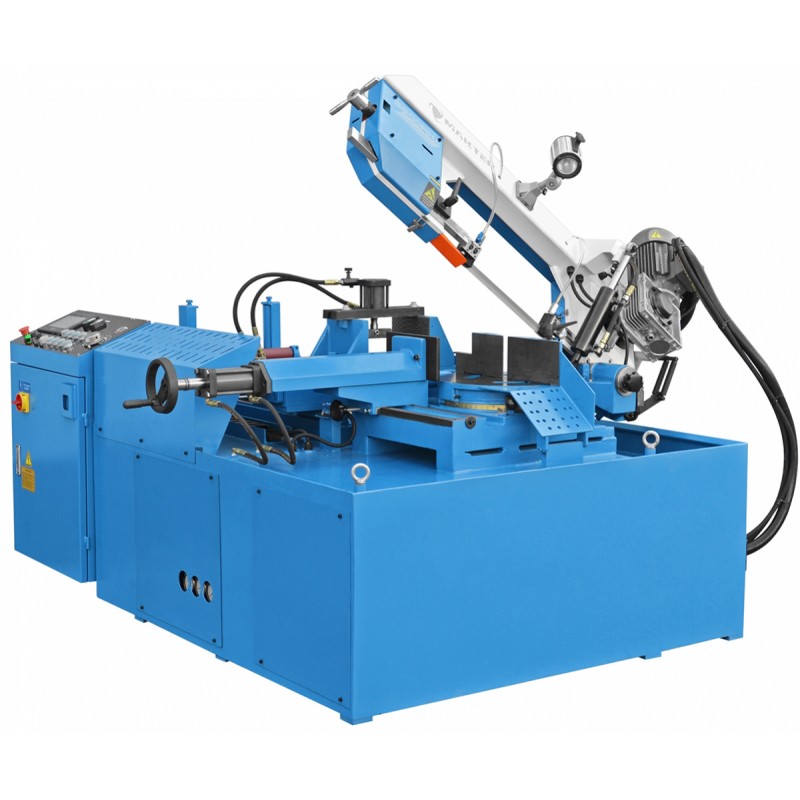

Automatic Metal Bandsaw CORMAK S200RHA
The CORMAK S200RHA model is an advanced automatic metal bandsaw designed for efficient serial cutting of tubes, profiles and solid materials with various geometries. A precise, compact and fully automated industrial machine, ideal for serial production, tool workshops and metalworking facilities that demand repeatability, accuracy and reliability.
Variant
Automatic Metal Bandsaw CORMAK BS370SA
Automatic Double-Column Metal Bandsaw CORMAK C33
Automatic Double-Column Metal Bandsaw CORMAK H260SA
Automatic Double-Column Metal Bandsaw CORMAK H280SA
Automatic Double-Column Metal Bandsaw CORMAK H300SA
Automatic Double-Column Metal Bandsaw CORMAK H400SA
Automatic Double-Column Metal Bandsaw CORMAK H500SA
Automatic Double-Column Bandsaw CORMAK HR350SA
Automatic Double-Column Metal Bandsaw CORMAK HR500SA
Automatic Column-Type Metal Bandsaw CORMAK HR600SA
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€11,654.25
Shipping time:
7 working days after receipt of payment
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Automatic Metal Bandsaw CORMAK S200RHA
The CORMAK S200RHA model is an advanced automatic metal bandsaw designed for efficient serial cutting of tubes, profiles and solid materials of different shapes. It is a precise, compact and fully automated industrial machine, perfect for serial production, tool workshops and metalworking facilities requiring repeatability, accuracy and reliability.
Main Advantages of the Machine
- Automatic cutting cycle: clamping, material feed, cutting and arm return take place without operator intervention.
- Angle cutting in automatic mode (0°–45°) and manual mode (–30° to +60°).
- Inverter control allows stepless blade speed adjustment in the range of 0–90 m/min.
- Hydraulic control of the arm and vice ensures high precision and operator comfort.
- Controller with LCD display: cutting parameter programming, piece count control and error indication.
Design and Technology
The CORMAK S200RHA metal bandsaw is built on a rigid cast-iron and welded frame, ensuring high stability and vibration reduction. The integrated hydraulic unit, fast feed system and adjustable arm descent mechanism with a throttle valve ensure safe and optimal operation. The cutting blade is guided by precision carbide and roller guides.
Precision and Work Efficiency
High-quality components and inverter technology allow achieving the ideal cutting speed for different materials. Hydraulic blade tensioning and precise guide adjustment extend blade life and maintain dimensional repeatability of workpieces.
Applications
This machine is recommended for workshops and production facilities engaged in serial manufacturing of steel, aluminium and non-ferrous components. It is ideal as a bandsaw for cutting pipes and profiles in steel structure fabrication, prefabrication and precision production industries.
Standard Equipment
- Control console on a separate stand
- Hydraulic control of vice and arm
- Arm position memory after cutting
- Blade cleaning brush
- Cooling system with pump
- Bimetal bandsaw blade
- CE Declaration of Conformity and User Manual
Technical Specifications
| Type | automatic |
| Arm lifting and lowering | hydraulic, steplessly adjustable |
| Blade speed | 0–90 m/min (inverter) |
| Angle cutting | automatic 0°–45°, manual –30° to +60° |
| Vice | hydraulic |
| Minimum cutting diameter | 5 mm |
| Minimum clamping length | 30 mm |
| Vice base height | 780 mm |
| Blade dimensions | 27 × 0.9 × 2910 mm |
| Total power | 4.1 kW |
| Machine dimensions | 2250 × 1600 × 1600 mm |
| Weight | 1100 kg |
