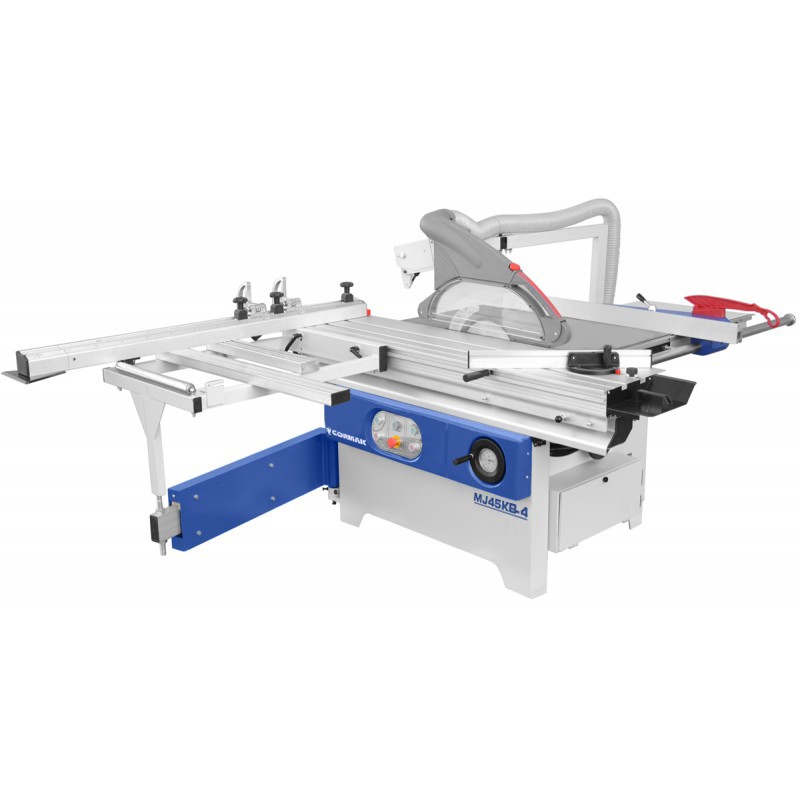

Sliding Panelsaw with Scoring Unit CORMAK MJ45-KB4 – 1600
Sliding Panelsaw CORMAK MJ45-KB4 – 1600 is a professional panelsaw with scoring unit designed for precise wood processing in joinery, production and service workshops. The machine combines industrial performance with cutting accuracy required when working with furniture boards, MDF and plywood. Its rigid construction, independent scoring drive and carefully engineered guiding systems ensure repeatability and professional-level precision.
Main features
- Aluminium sliding table of 1600 mm length guarantees smooth travel and accurate material guidance.
- Independent scoring motor with 0.75 kW power eliminates chipping on the underside of panels.
- Powerful main saw – 5.5 kW (9 HP) motor ensures efficient cutting of hard materials.
- Cast iron frame – vibration-resistant, improves precision and operator safety.
- Telescopic crosscut fence with scale and two stops for precise positioning of workpieces.
- Cutting width up to 1250 mm – ideal for large-format boards.
- Angle and height adjustment via ergonomic knobs – quick, tool-free settings.
Construction and technology
The MJ45-KB4 – 1600 model is built on a heavy cast iron frame, providing torsional rigidity and long-term stability. The cutting unit operates within a solid block assembly, ensuring reduced vibration and extended blade life. The sliding table guidance system is based on hardened bars and precision linear bearings, guaranteeing smooth, backlash-free motion. The machine is also equipped with a roller support table for convenient handling of large boards.
Precision and efficiency
With blade speeds up to 6000 rpm and a precise guiding system, the CORMAK MJ45-KB4 panelsaw delivers perfectly straight, clean cuts even in layered materials. The scoring blade operating at 8000 rpm efficiently prevents laminate tear-out. Cutting angles from 0–45° enable complex cutting operations with full control and repeatability.
Applications
The MJ45-KB4 – 1600 model is a sliding panelsaw with scoring unit designed for heavy-duty use in:
- joinery and woodworking workshops,
- furniture manufacturing plants,
- prototype and R&D departments,
- architectural and modelling studios.
Perfect for processing MDF, HDF, OSB, plywood, laminates and solid wood. Its construction allows for quick setup and short-run or one-off production without compromising quality.
Standard equipment
- 1600 mm aluminium sliding table
- independent scoring unit 0.75 kW
- telescopic crosscut fence with scale and two stops
- roller support table
- folding parallel fence
- telescopic rip fence
- angle and height adjustment knobs
Optional equipment*
- set of specialist saw blades
- industrial dust extraction system
- digital angle readout
- sliding table length 2000 mm or 3200 mm
*The price quoted is for the machine only, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.
Technical specifications
| Sliding table length |
1600 mm |
| Cutting width |
1250 mm |
| Blade tilt |
0–45° |
| Cutting height at 90° |
80 mm |
| Cutting height at 45° |
56 mm |
| Maximum blade diameter |
315 mm |
| Maximum scoring blade diameter |
125 mm |
| Main blade speed |
4000 / 6000 rpm |
| Scoring blade speed |
8000 rpm |
| Main motor power (S1/S6) |
5.5 kW / 9 HP |
| Scoring motor power (S1/S6) |
0.75 kW / 1.2 HP |
| Machine weight |
460 kg |
Order now
If you are looking for a reliable sliding panelsaw with scoring unit that meets professional workshop requirements, the CORMAK MJ45-KB4 – 1600 is a proven choice. Contact our technical advisor or add the product to your cart to enhance your production precision and efficiency.
