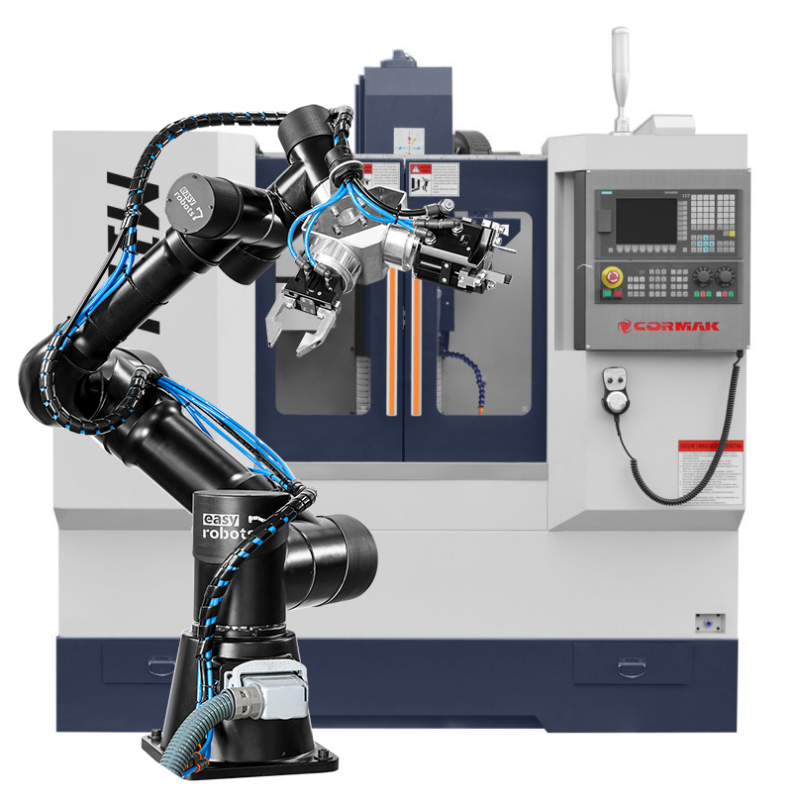

CNC Machining Centre CORMAK MILL500 ECOLINE + Robot

CNC Machining Centre CORMAK MILL500 ECOLINE + Robot -
  • CNC Machining Centre CORMAK MILL500 ECOLINE + Robot -
  • CNC Machining Centre CORMAK MILL500 ECOLINE + Robot -
  • CNC Machining Centre CORMAK MILL500 ECOLINE + Robot -
  • CNC Machining Centre CORMAK MILL500 ECOLINE + Robot -
  • CNC Machining Centre CORMAK MILL500 ECOLINE + Robot -

The CNC centres from the ECOLINE series, equipped with a 4th axis, are designed using proven components that ensure long-term reliability. The rigid body guarantees efficient and precise machining. The sealed working chamber provides safety and cleanliness at the workplace. The hardened table surface allows the machining of components without loading the machine structure. Each machine in this series is equipped with an efficient cooling system ensuring optimal cutting conditions.
4TH AXIS INCLUDED

Have questions? Call us!

+48 25 631 00 27 ext.105

Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.

Are you interested in this product?

Ask for price

  • CE
  • Instructions in Polish
  • Service
  • Warranty 12/24 months
  • Delivery
    Free

Technical parameters of the lathe

TABLE DIMENSIONS 800x260 mm
SPINDLE TAPER BT30 (option BT40)
X-AXIS TRAVEL 450 mm
Y-AXIS TRAVEL 320 mm
Z-AXIS TRAVEL 420 mm
DISTANCE FROM SPINDLE NOSE TO TABLE SURFACE 90–470 mm
RAPID TRAVERSE SPEEDS 10/10/8 m/min
SERVO DRIVE TORQUE X/Y/Z 6/6/7.7 Nm
POSITIONING ACCURACY ±0.02 mm
POSITIONING REPEATABILITY ±0.01 mm
MAX. SPINDLE SPEED 8000 rpm
MOTOR POWER 3.7 kW
CONTROL SYSTEM SINUMERIK 808D
WEIGHT 2100 kg
DIMENSIONS 2100x1800x2200 mm

Available equipment

  • SIEMENS 808D
  • 4th axis
  • chuck
  • tailstock
  • SIEMENS servo drives
  • 8000 rpm spindle
  • 10-tool magazine
  • three-colour warning lights
  • lighting
  • sealed machine enclosure
  • automatic lubrication system
  • pneumatic system

Optional equipment*

  • Siemens 828 / FANUC control system
  • Spindle speeds 10,000 / 12,000 rpm
  • Through-spindle cooling
  • Chip conveyor with container

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.

Robot technical parameters

Payload 5 kg
Weight 27 kg
Repeatability ±0.1 mm
Mounting position floor, wall, ceiling
Power supply 230V 50Hz 6A
Power consumption average power 500W, maximum power 1000W
Maximum reach 921 mm
Control cabinet dimensions 500x500x200 mm
Operating temperature 7–40°C
Humidity max 80%
Noise level <86 dB
IP rating IP44
Software EScontrol
Control panel panel with 10.1’’ touch screen
Compliance and safety standards

Machinery Directive 2006/42/EC

Electromagnetic Compatibility Directive 2014/30/EU

Low Voltage Directive 2014/35/EU
Absolute encoders

no need for homing
I/O ports

digital 8/8 (optionally analogue, voltage, current, temperature, resistance and thermal sensors, incremental and SSI encoders, RS232/422/485 communication, IO-Link Master)

Manufacturer: Cormak

CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
