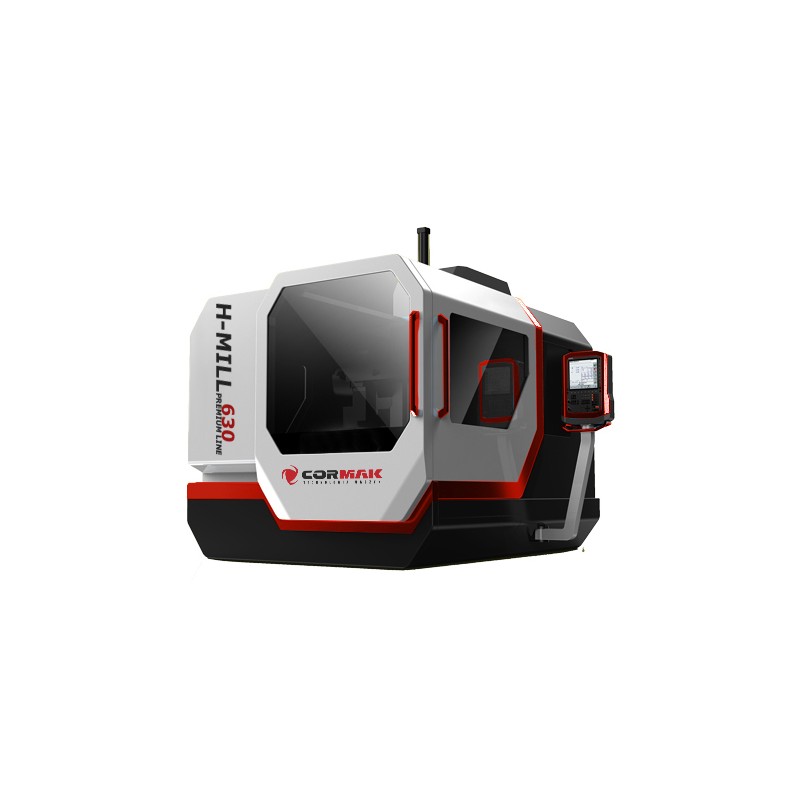

H-MILL630 Horizontal Machining Centre
Machining centres equipped with horizontal spindle axis provide precise and quick machining of various elements both in the automated series production and in the constant production of metal pieces and parts of devices. Machines from the PREMIUM LINE series were created in order to fulfill the requirements of the most demanding users. The high quality and reliability of components ensure higher precision and efficiency of machining with the usage of multiple tools. Machining centres are built with parts from the best Taiwanese, German, Japanese and Chinese manufacturers, such as HIWIN, POSA, SIEMENS, FANUC, OMRON, PRAGATTI, SHNAIDER, CHANDOX, FAG, BOSCH REXROTH.
Are you a member of the VIES group?
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Technical data
|
X/Y/Z axes travel |
800×700×750 mm |
|
Table dimensions |
630×630 mm |
|
Table load capacity |
1000 kg |
|
X/Y/Z quick feed |
32/24/32 m/min |
|
Spindle speed |
2400–6000 rpm |
|
Spindle taper |
BT50 |
|
Motor power |
15/18.5 kW |
|
Tools magazine |
24 |
|
Maximum weight of tools |
15 kg |
|
Positioning accuracy |
±0.0025mm JIS |
|
Positioning repeatability |
±0.0015mm JIS |
|
Weight |
8500 kg |
|
Dimensions |
2900x3200x2650 mm |
Available equipment
- SIEMENS 808D
- SIEMENS 2-year warranty
- 8000 RPM spindle
- Linear guides
- 24-tools magazine
- 3-colour alarm indicators
- Lighting
- Hermetic body of the machine
- Automatic lubrication system
- Pneumatic system
Optional equipment
- SIEMENS 828D / FANUC 0i Mate control systems
- Rotary table
- Screw shavings transporter
- Automatic tool setting probe
- Optical transmission probe
- Oil haze absorber
- Cooling via spindle
- A starting kit of tools
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
