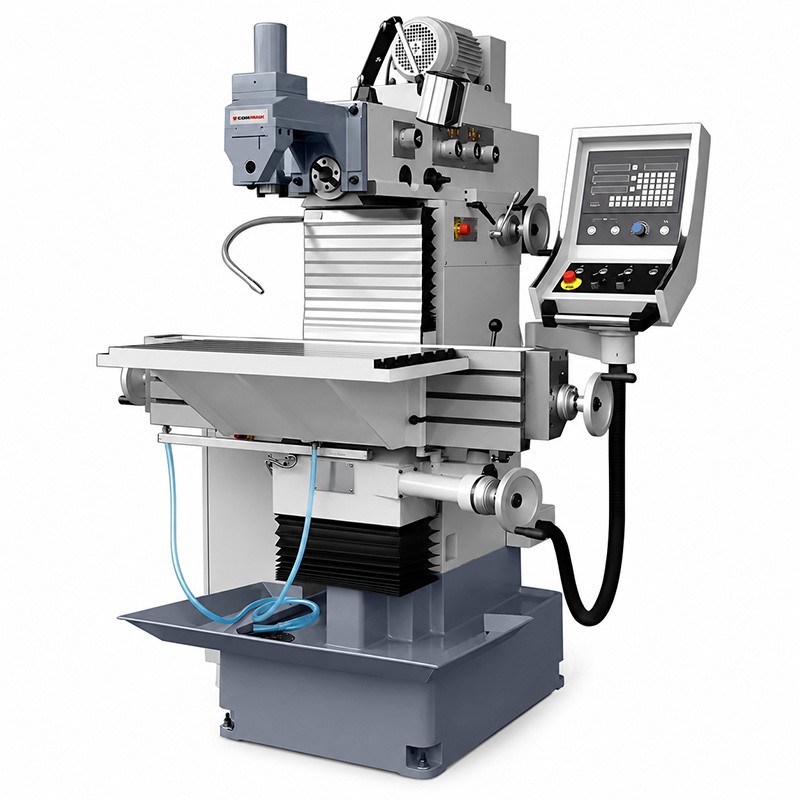

The CORMAK XN830 Toolroom Milling Machine is designed for precision and versatility. Equipped with a swivelling vertical head and a horizontal milling system, it allows for efficient machining of large workpieces within a compact workspace. Perfect for toolrooms and production workshops requiring high accuracy and performance.
When equipped with the appropriate tooling, the milling machine can perform operations such as:
| Table dimensions | 750 mm x 320 mm |
| Number of T-slots | 5 |
| T-slot dimensions | 14 mm |
| Manual longitudinal travel | 405 mm |
| Automatic longitudinal feed | 395 mm |
| Manual cross travel | 390 mm |
| Automatic cross feed | 380 mm |
| Maximum table load | 200 kg |
| Spindle taper | ISO40 |
| Distance between vertical spindle and table | 105 - 495 mm |
| Distance between horizontal spindle and table | 135 - 535 mm |
| Head swivel | ±60° |
| Spindle speed range | 40 - 1600 rpm |
| Overall dimensions | 1820 x 1640 x 1710 mm |
| Motor power | 4 kW |
| Weight | 2200 kg |
