The CORMAK XL8145 Toolroom Milling Machine is an indispensable machine for professional toolrooms and workshops that demand precision and quality. Equipped with a vertical swivelling milling head and a horizontal milling setup, it enables machining of complex parts with accuracy up to ±60°. Despite its compact design, the machine can efficiently handle relatively large workpieces, making it an ideal solution for manufacturing high-quality precision components.
When equipped with the appropriate tooling, the milling machine can perform the following operations:
| Horizontal worktable dimensions (L × W) | 850 × 450 mm |
| Number of T-slots on horizontal table | 7 |
| T-slot width on horizontal table | 14 mm |
| T-slot spacing on horizontal table | 63 mm |
| Vertical worktable dimensions (L × W) | 1190 × 250 mm |
| Number of T-slots on vertical table | 3 |
| T-slot width on vertical table | 14 mm |
| T-slot spacing on vertical table | 63 mm |
| Travel (X-axis) | 600 mm |
| Travel (Y-axis) | 450 mm |
| Travel (Z-axis) | 450 mm |
| Spindle taper | ISO40 |
| Spindle speed range | 40 – 2000 rpm |
| X-axis feed rate (stepless) | 10 – 1000 mm/min |
| Y-axis feed rate (stepless) | 10 – 1000 mm/min |
| Z-axis feed rate (stepless) | 10 – 1000 mm/min |
| Rapid feed rate (X/Y/Z) | 1200 mm/min |
| Distance from spindle face to table surface | 75 – 525 mm |
| Distance from horizontal spindle axis to table surface | 170 – 620 mm |
| Distance from vertical spindle axis to column | 175 – 625 mm |
| Main motor power | 5.5 kW |
| Machine weight | 1750 kg |
| Overall dimensions | 1600 × 1800 × 2000 mm |
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
phone: +48 501 944 934
export@cormak.pl
phone: +48 609 939 400
export@cormak.pl
phone: +48 609 939 051
export@cormak.pl
phone: +48 609 939 741
export@cormak.pl
Milling Machine Starter Tool Set ISO40
Comprehensive starter tool set designed for milling machines with ISO40 spindle taper . The kit includes a complete range of essential tools for machining, drilling, threading, and milling operations. Perfect for workshops and production facilities starting work with ISO40 milling machines. ...More
Tilting and Swivel Machine Vice CORMAK QHK100
The CORMAK QHK100 vice is made of high-grade cast iron. Its precise guidance makes this tilting and swivel machine vice ideal for precision engineering. The 360° swivel base allows horizontal rotation, while the 90° tilting cradle enables vertical adjustment. The hardened (55±3 HRC) and ground ...More
Tilting and Swivel Machine Vice CORMAK QHK125
The CORMAK QHK125 vice is made of high-grade cast iron. Its precise guiding system makes this tilting and swivel machine vice ideal for precision mechanics. The 360° swivel base allows horizontal rotation, and the 90° tilting cradle enables vertical adjustment. The tool-steel jaws are hardened ...More
Tilting and Swivel Machine Vice CORMAK QHK160
The CORMAK QHK160 vice is made of high-grade cast iron. Its precise guiding system makes this tilting and swivel machine vice ideal for precision engineering. The 360° swivel base enables full horizontal rotation, while the 90° tilt allows accurate vertical adjustment. Hardened (55±3 HRC) and ...More
Toolroom Milling Machine CORMAK XN830
The CORMAK XN830 Toolroom Milling Machine is designed for precision and versatility. Equipped with a swivelling vertical head and a horizontal milling system, it allows for efficient machining of large workpieces within a compact workspace. Perfect for toolrooms and production workshops requiring high accuracy and performance. ...More
Toolroom CNC Milling Machine CORMAK XN830
The CORMAK XN830 CNC Toolroom Milling Machine is designed for precision machining in toolrooms and production workshops. Featuring a swivelling vertical head with a ±60° range and a horizontal milling setup, it provides versatile machining capabilities for complex operations. ...More

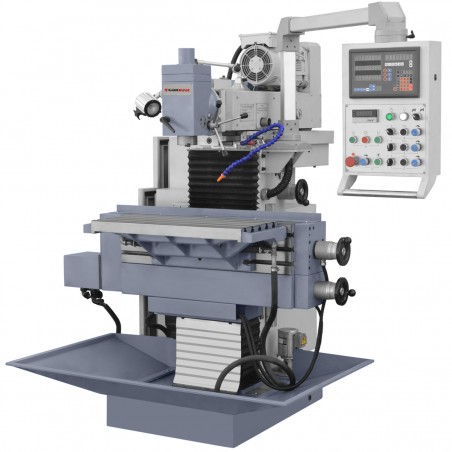

Toolroom Milling Machine CORMAK XN835 SERVO
