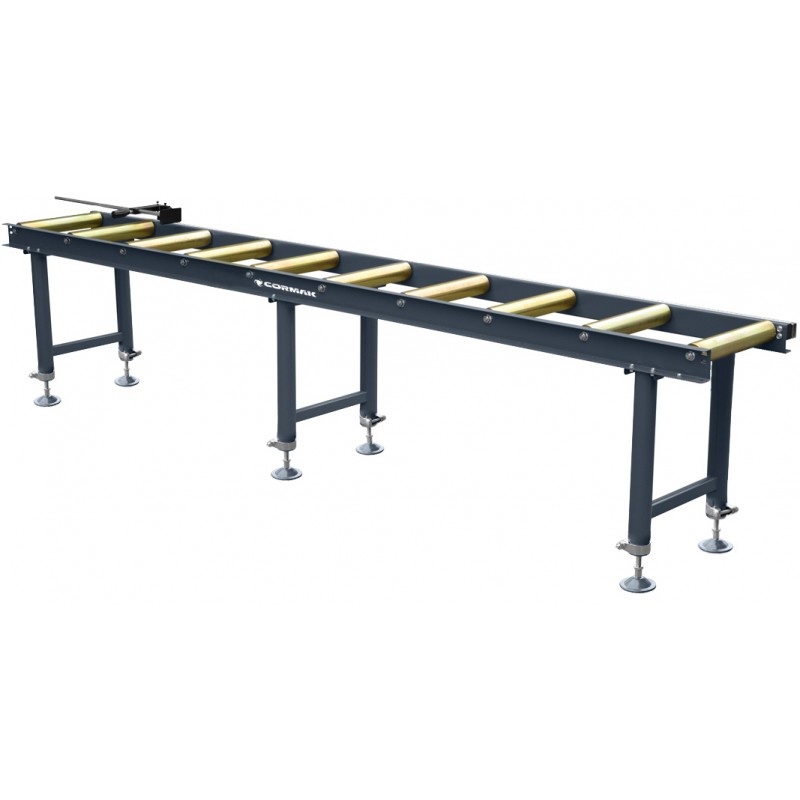

Roller Conveyor 3m with Length Stop – Precision Roller Track for Feeding Heavy Components in Cutting Processes
Roller Conveyor 3m with Length Stop is a durable roller conveyor designed for professional feeding and collection of materials during machining operations. With an integrated length stop and ten bearing-mounted steel rollers, it delivers high positioning accuracy, smooth movement and excellent load resistance. Perfectly suited as a roller track for band saws, circular saws and steel profile cutting centres.
Main Advantages
- Integrated length stop – fast and precise setting of cutting length without additional tools
- 10 bearing-mounted steel rollers (60 × 360mm) – smooth, stable transport of even heavy components
- Load capacity up to 900kg – designed for heavy and irregularly shaped materials
- Height adjustment range 650–1,100mm – adaptable to various machining equipment
- Expandable modular system – enables flexible configuration of production lines
- Reinforced steel frame with cross braces – exceptional rigidity, stability and vibration resistance
Construction and Technology
The conveyor features a welded steel frame reinforced with crossbars and height-adjustable legs with a locking mechanism. The steel rollers are mounted on precision ball bearings, ensuring reliable and smooth transport of workpieces of various shapes – from pipes and profiles to plates and shafts. The mechanical length stop, mounted parallel to the transport direction, allows precise measurement of the workpiece length without external gauges or laser systems.
Precision and Efficiency
With the integrated length stop and accurately aligned rollers, the 3m roller conveyor significantly reduces setup time and eliminates positioning errors. This directly improves machining precision and reduces material waste. High load capacity ensures safe operation with heavy structural elements without risk of deformation or misalignment of the roller track.
Applications
- Cutting pipes, steel profiles and shafts
- Steel construction and fabrication plants
- Machining and metalworking workshops
- Production lines integrating cutting and transport systems
Standard Equipment
- 10 steel rollers (60 × 360mm)
- Reinforced steel frame with stable legs
- Height adjustment range 650–1,100mm
- Length stop with clear measurement scale
Technical Data
| Roller diameter |
60mm |
| Roller length |
360mm |
| Number of rollers |
10 |
| Conveyor length |
3,000mm |
| Conveyor width |
450mm |
| Height adjustment range |
650–1,100mm |
| Maximum load capacity |
900kg |
| Weight |
50kg |
Choose Precision and Efficiency – Invest in the CORMAK Roller Track with Length Stop
Roller Conveyor 3m with Length Stop provides reliable support for every metal-cutting operation requiring accuracy and repeatability. Choose CORMAK for quality and productivity trusted by professionals across Europe. Contact our technical team or place your order online to configure your perfect cutting and feeding setup.
