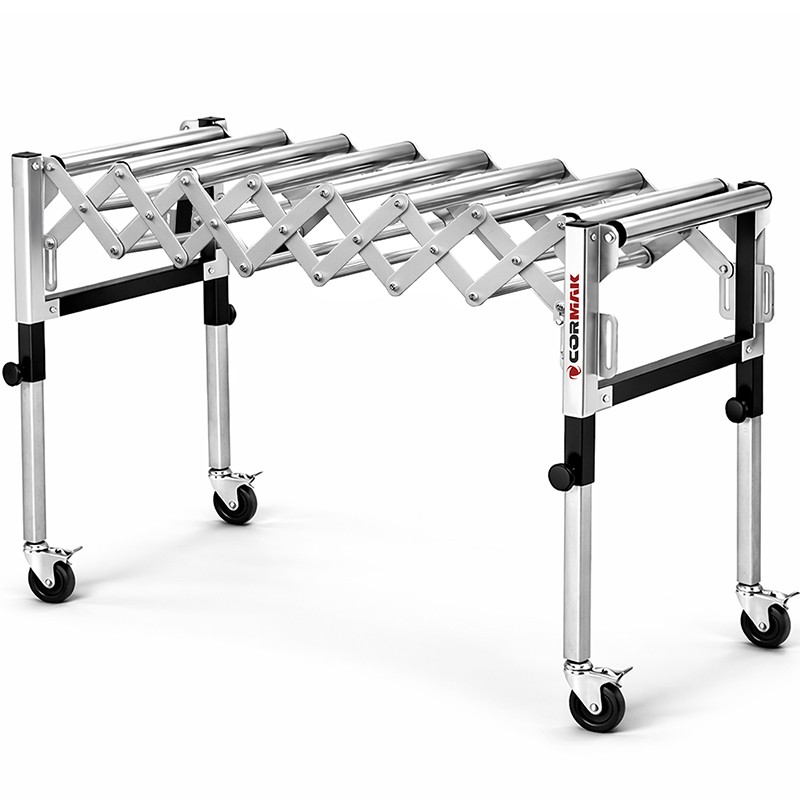

Scissor Roller Conveyor CORMAK HRN50130

The compact roller conveyor CORMAK HRN50130 is a mobile conveyor designed for the efficient movement of loads with a smooth bottom in warehouse, production and logistics environments. Thanks to the adjustable length 570–1470 mm, height adjustment 600–920 mm and a load capacity of up to 130 kg, the unit can be precisely adapted to the workstation and the type of transported material. The CORMAK HRN50130 model has been designed for facilities that require a durable and flexible solution for internal transport. It is a steel roller conveyor that improves material flow, enhances operator ergonomics and allows quick configuration of the transport layout.

Main advantages of the machine

• Adjustable length 570–1470 mm – easy adaptation to the available working space and workstation layout.
• Adjustable height 600–920 mm – the ability to set the optimum working height.
• Load capacity up to 130 kg – safe transport of boxes, crates, wood and other materials with a smooth bottom.
• Steel rollers with a diameter of 50 mm – a durable conveying surface resistant to intensive use.
• Steel construction – high rigidity and resistance to working loads.
• 4 lockable castors – quick movement of the unit and stabilisation during operation.
• Bracing between the legs – additional reinforcement and improved operational safety.
• Possibility of connecting several modules – expansion of the conveying layout in line with process requirements.
• Delivered assembled – quick preparation for operation without time-consuming assembly.

Construction and technology

Steel supporting structure for industrial operation

The compact roller conveyor CORMAK HRN50130 is made of durable steel, which ensures stable operation and resistance to everyday use in industrial environments. The rigid frame provides secure support for the transported load and reduces the risk of deformation during operation under load.
The unit is equipped with steel rollers with a diameter of 50 mm, which enable smooth movement of goods

Length and height adjustment

The length adjustment range of 570–1470 mm allows the conveyor to be adapted to spatial conditions and the course of the transport process. Height adjustment in the range of 600–920 mm makes it possible to set the unit at a level suited to operator ergonomics and to integrate it with other items of equipment, such as work tables, picking stations, shelving or sections of a conveyor line.

Mobility and workstation stability

CORMAK HRN50130 is equipped with four castors, thanks to which the unit can be easily moved between workstations. Once the conveyor has been set in the working position, the wheels can be locked to prevent uncontrolled movement of the structure. Additional bracing between the legs increases the rigidity of the entire system and improves stability when working with heavier loads.

Precision and work efficiency

The roller conveyor CORMAK HRN50130 improves internal transport in facilities where loads must be moved quickly and safely between workstations.

The possibility of adjusting the basic operating parameters increases the flexibility of the unit’s application. In practice, this means easier adaptation of the conveyor to changing production, packing or order-picking conditions.

• better organisation of material flow between workstations,
• improved ergonomics thanks to height adjustment,
• quick adaptation to the hall layout thanks to the adjustable length,
• easy movement of the unit thanks to the mobile base,
• stable operation under load thanks to the steel construction and lockable wheels.

Application

The compact roller conveyor CORMAK HRN50130 is used wherever reliable transport of loads with a flat, smooth underside is required. This is a solution intended for facilities that need a durable and easy-to-use element of an internal transport system.

• production plants,
• warehouses and logistics centres,
• packing and picking areas,
• assembly lines,
• transport of boxes and crates,
• transport of wood, boards and other materials with a smooth bottom.

Thanks to the possibility of connecting several modules, the roller conveyor CORMAK HRN50130 can operate as a single transport station or as part of a larger, custom conveyor layout.

Standard equipment

• steel supporting structure,
• 9 non-powered steel rollers,
• length adjustment,
• height adjustment,
• 4 castors,
• wheel lock,
• reinforcing bracing between the legs,
• unit delivered assembled.
