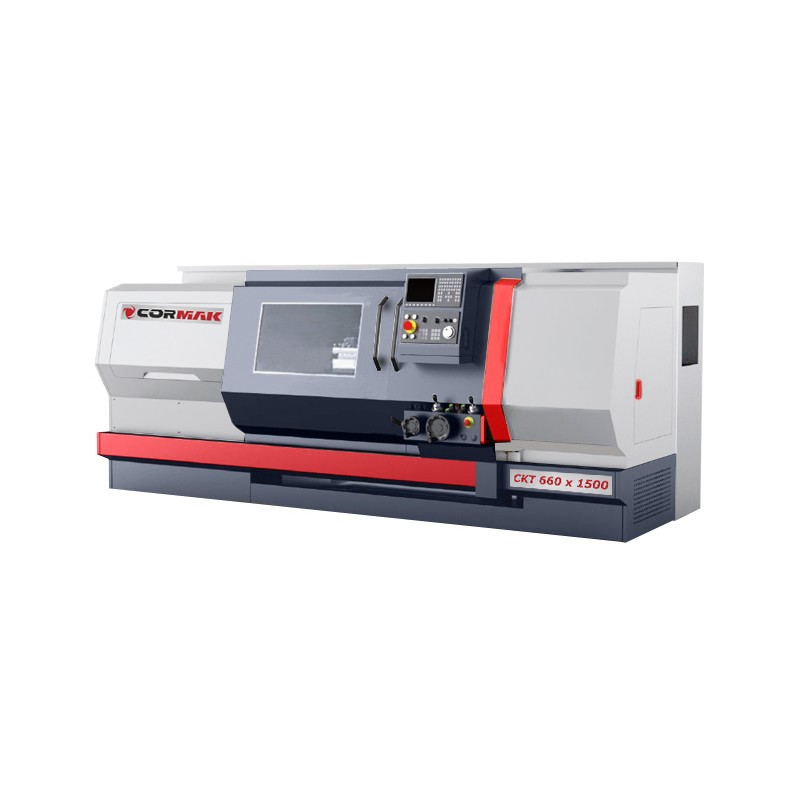

660x1500 CNC Lathe

660x1500 CNC Lathe - CNC lathe 660x1500
  • 660x1500 CNC Lathe - CNC lathe 660x1500
  • 660x1500 CNC Lathe - CNC lathe 660x1500

This lathe saves the actions of its operator and automatically converts them into G-code. Afterwards, the operator can press the playback button in order to achieve an identical copy of the workpiece. This cuts the amount of time required to configure the CNC lathe in half, and increases efficiency by 62%. Standard CNC lathe functions extended by the capabilities of a conventional lathe. Manual feed of the X/Z axes via 2 electronic knobs with a semi-automatic transition achieved by defining individual cycles.

Have questions? Call us!

+48 25 631 00 27 ext.105

Are you a member of the VIES group?

Are you interested in this product?

Ask for price

  • CE
  • Instructions in Polish
  • Service
  • Warranty 12/24 months
  • Delivery
    Free

Machine characteristics

  • Semi-automatic transition achieved by defining individual cycles: taper turning, threading
  • SINUMERIK 808D entry-level CNC control system
  • Manual feed of X/Z axes via 2 electronic knobs
  • Interface of cycles adapted to the user for easy programming of parts — broad programming possibilities, from setting turning cycles to full programming of parts
  • Inductively tempered guides
  • A dynamic main spindle drive thanks to actuators
  • 200 mm serial clamping chuck with regulated force
  • The machine requires low maintenance due to the intelligent central lubrication unit.
  • Longitudinal and cross feed with high quality lead screws
  • 6-times turret gun — increases the automation degree and efficiency, while decreasing the time needed for complex elements

Technical data

Maximum turning length

1500 mm

Swing over bed

660 mm

Swing over cross slide

520 mm

Bed width

600 mm

Spindle bore

130 mm

Spindle speed

22–108,60–300,240–1200 rpm

X/Z axes maximum travel

420/1350, 2850 mm

X/Z axes quick feed speed

4/8 m/min

X/Z axes positioning accuracy

0,03/0,04 mm

X/Z axes repeatability

0,012/0,02; 0,025 mm

Tailstock spindle diameter

100 mm

Maximum tailstock spindle travel

250 mm

Tailstock spindle taper

MT5

Load capacity

1500 kg

MOTOR POWER

15 kW

WEIGHT

6100 kg

DIMENSIONS

4307×2040×1855 mm

Optional equipment

  • 6-piece tool holder
  • manual knobs
  • 3-jaw 650 mm chuck
  • hydraulic chuck and tailstock
  • SINUMERIK 828D, FANUC, FAGOR control systems

Manufacturer: Cormak
