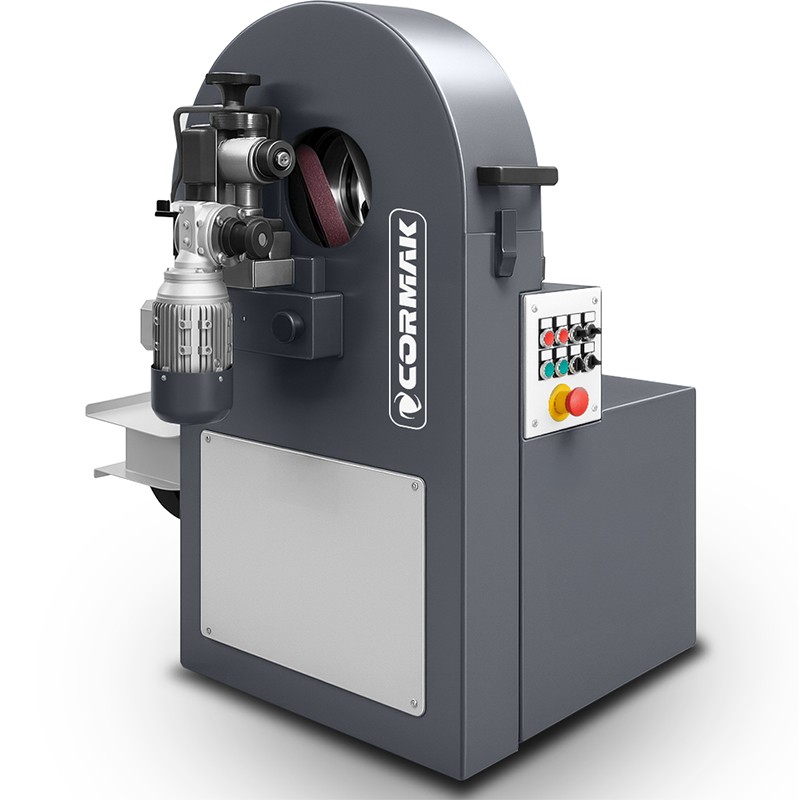

Planetary Pipe Grinding Machine CORMAK SPS150
The CORMAK SPS150 Planetary Pipe Grinder (orbital grinder, tube polisher) is designed for industrial grinding, satin-finishing, and polishing of round and elliptical pipes. Its orbital head with an endless abrasive belt wraps around the workpiece, ensuring uniform 360° surface finishing and efficient removal of burrs or imperfections.
Main advantages
- Uniform 360° finish – the orbital head with abrasive belts wraps around the pipe, ensuring consistent surface finishing along the entire circumference.
- Variable speed control – smooth adjustment of speed through an inverter allows optimisation for different materials and belt grits.
- High repeatability – the workpiece remains axially guided and does not rotate by itself, improving quality control and reducing operator fatigue.
- Versatile applications – suitable for carbon steel, stainless steel, aluminium, and brass; compatible with both rigid and flexible belts.
- Industrial reliability – built for continuous, heavy-duty operation.
Applications
- Grinding, satin-finishing, and polishing of pipes with diameters from approximately 10 to 150 mm.
- Straight and curved elements – railings, constructions, and decorative components.
- Surface preparation for painting, coating, or welding.
- Removal of small burrs and surface imperfections.
Key technical features
| Type |
Planetary pipe grinder / orbital belt polisher |
|---|
| Pipe diameter range |
approx. 10–150 mm (round and elliptical pipes) |
|---|
| Workpiece materials |
carbon steel, stainless steel, aluminium, brass |
|---|
| Abrasive belt |
Endless belt with tensioning and tracking system; compatible with rigid or flexible belts |
|---|
| Speed control |
Inverter-controlled variable speed |
|---|
| Operating mode |
Continuous, industrial use |
|---|
| Workpiece support |
Support rollers coated with wear-resistant material |
|---|
| ABRASIVE BELT DIMENSIONS (L x W) |
1100 x 50 mm |
| BELT SPEED |
10 / 25 m/s |
| MINIMUM PIPE DIAMETER |
10 mm |
| MAXIMUM PIPE DIAMETER |
150 mm |
| MOTOR POWER |
5.5 kW |
| WEIGHT |
210 kg |
| DIMENSIONS (L x W x H) |
1200 x 650 x 1250 mm |
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
