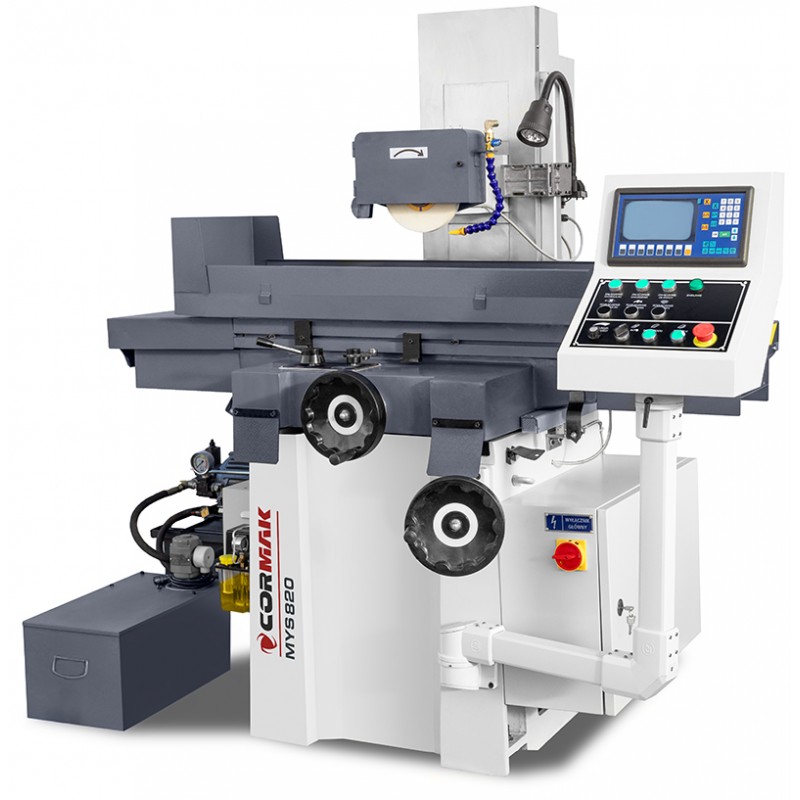

Magnetic surface grinder 200x480 MYS820 – Precision in a compact form

Magnetic surface grinder 200x480 MYS820 – Compact precision for the industry

The magnetic surface grinder 200x480 MYS820 is an advanced machine designed for precise grinding of small and medium metal components. Its compact design and modern technologies ensure high processing accuracy and reliability in industrial environments.

Main advantages of the magnetic surface grinder 200x480 MYS820

The magnetic surface grinder 200x480 MYS820 is the ideal solution for industrial plants that require precision processing in a compact form. Designed for professionals, it combines advanced technologies such as automatic feeds in two axes and precise guides with a robust construction, ensuring reliability and efficiency. Its compact dimensions (1680x1140x1800 mm) and weight of 800 kg make it an excellent choice for smaller workshops and facilities with limited space. Key benefits include:

• High grinding precision: Precise guides and automatic feeds enable processing accuracy of 0.01 mm in vertical movement, ensuring excellent surface finish.
• Compact working area: The table size of 400x200 mm is ideal for processing small and medium details, increasing versatility of applications.
• Smooth automatic feed: The two-axis feed system provides precise movements at speeds of up to 530 mm longitudinally and 220 mm transversely, ensuring efficient processing.
• Stability and durability: The massive construction weighing 800 kg minimizes vibrations, ensuring stability during intensive operation.
• Ease of maintenance: Central lubrication of guides reduces the need for manual maintenance, increasing the machine's lifespan.
• Ready to work: Equipped with a digital readout and fully prepared for immediate production start, minimizing downtime.

Construction and technology of the grinder

Solid construction and precise components

The magnetic surface grinder 200x480 MYS820 features a massive construction weighing 800 kg, providing stability during processing. Hardened and ground linear guides eliminate vibrations, guaranteeing smooth table movement and high surface finish quality. The spindle driven by a 1.1 kW motor works with a grinding wheel measuring 200x19x32 mm, enabling effective processing of various materials.

Advanced feed system

The machine is equipped with automatic feeds in two axes, with a maximum stroke of 530 mm longitudinally and 220 mm transversely. The precise transverse feed per spindle rotation is 2.5 mm, and vertical 1.25 mm, allowing for accurate adjustment of processing parameters to specific requirements.

Cooling system and magnetic table

The magnetic surface grinder features an efficient cooling system that protects the workpiece and grinding wheel from overheating. The magnetic table measuring 400x200 mm ensures secure clamping of components, enhancing safety and precision, especially when processing small parts.

Precision and work efficiency

The magnetic surface grinder 200x480 MYS820 provides excellent surface finish quality thanks to precise feed control and stable construction. The maximum distance from the table to the spindle (490 mm) allows for processing parts of varying sizes. Precise guides and automatic feeds enable achieving smooth surfaces with minimal tolerances, which is crucial in the production of precision components.

Applications of the surface grinder

The magnetic surface grinder 200x480 MYS820 is designed for industrial plants that require precision processing of small and medium components. It finds applications in:

• Tool industry: Production and regeneration of cutting tools and small injection molds.
• Machine industry: Grinding of machine elements such as base plates or precision components.
• Repair shops: Regeneration of small machine components requiring high precision.
• Precision industry: Processing of components for electronics, optics, or small automotive parts.

Technical specification

Technical parameters

Standard equipment

• Magnetic table
• Digital readout
• Grinding wheel
• Grinding wheel holder
• Cooling system
• Halogen lighting system
• DTR in Polish
• CE declaration

Optional equipment

• Automatic grinding wheel truing system: Increases precision and tool lifespan.
• Advanced CNC control system: Allows programming of complex machining cycles.
• Additional magnetic table: Expands clamping capabilities for components.
• Larger capacity coolant set: Designed for intensive grinding processes.

Order your surface grinder today

Increase your production efficiency with the magnetic surface grinder 200x480 MYS820. Contact us for a detailed offer or to schedule a machine demonstration. Choose precision and reliability – opt for surface grinders from Cormak!
