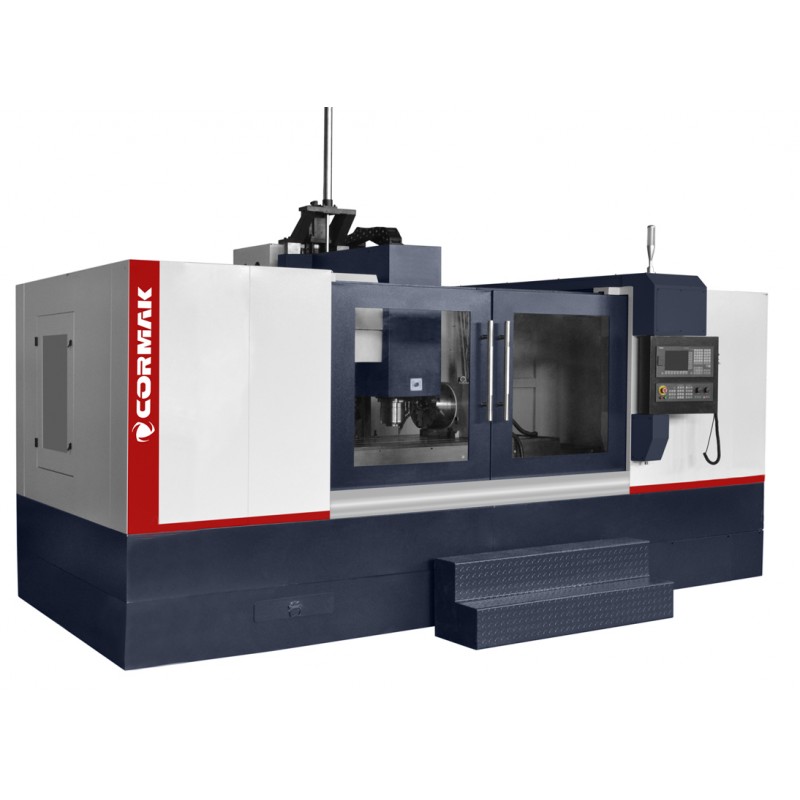

copy of MILL 1470 machining center
High-quality components used in the machine guarantee reliable operation for a long time. The machine is able to efficiently perform many operations such as milling, drilling, threading and reaming while maintaining high processing precision. Each machine in this series is equipped with an efficient cooling system ensuring optimal cutting conditions.
Are you a member of the VIES group?
VAT included
€91,942.50
The price has not changed
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Description
- Highest quality guides for each and every axis
- 4-truck guide system implemented into the bed of the machine for a heavy load capacity
- Rigid body of the machine with spaced out, tempered and ground rectangular guides
- Hermetic chamber provides work safety
- Maximum precision due to lead screws in 3 axes
Technical data
| A choice of control system | SIEMENS 808 ADVANCED |
| Table dimensions | 1700×800 mm |
| T-slots | 5×22×135 mm |
| Table load capacity | 960 kg |
| X/Y/Z axes | 1500 x 800 x 700 mm |
| Distance from spindle to table surface | 200–900 mm |
| Distance from spindle to column | 830 mm |
| Spindle taper | BT50 |
| Spindle speed | 100–8000 rpm |
| Spindle drive | Belt |
| Spindle motor | 15 kW |
| X/Y/Z engine axes | 22/22/22 Nm |
| X/Y/Z ball screws (diameter x stroke) | 40×08/40×08/40×08 mm |
| X/Y/Z quick feed speed | 15/15/12 m/min |
| X/Y/Z incision feed | 8 m/min |
| Magazine capacity | BT50–24 |
| Maximum length of tool | 300 mm |
| Maximum weight of tool | 7.5 kg |
| Power supply | 25 KVA |
| Air pressure | 5–7 kilogram-force/cm2 |
| Positioning accuracy | +/– 0.01 mm |
| Dimension | 4220x2800x2810 mm |
| Weight | 13300 kg |
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
