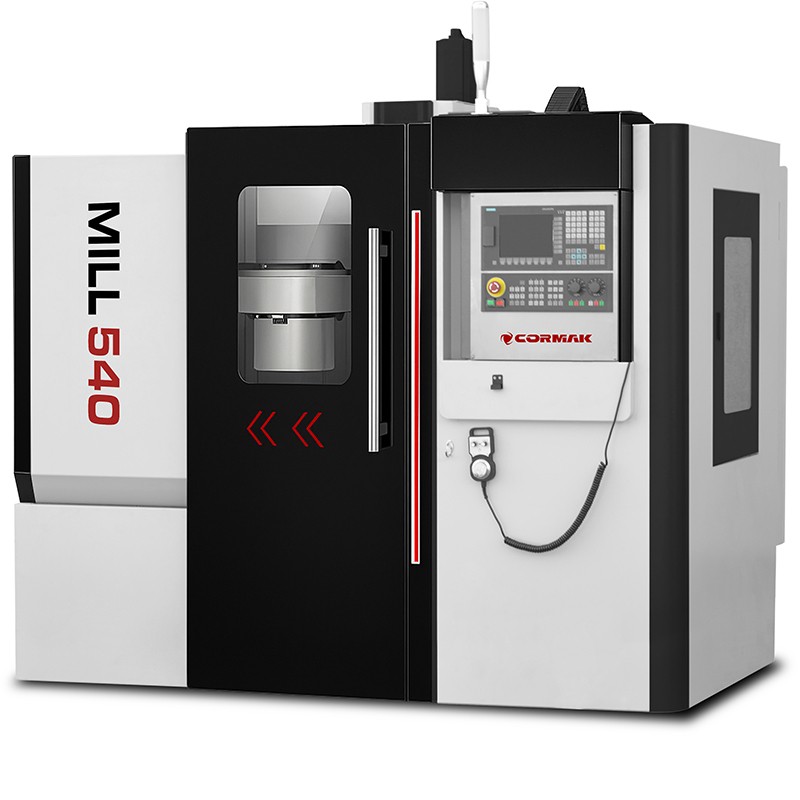

MILL540 Machining Centre
CNC centers have been designed based on proven components that guarantee reliability for a long time of use. The massive machine body ensures efficient and precise machining. The hermetic chamber ensures safety and cleanliness at the workplace. A table with a hardened surface can receive workpieces without stressing the mechanical components of the structure. Each machine in this series is equipped with an efficient cooling system ensuring optimal cutting conditions.
Variant
MILL500 Machining Centre
MILL400 Machining Centre
MILL500 Machining Centre
MILL 530 900 X 400 machining center
Are you a member of the VIES group?
VAT included
€38,406.75
The lowest price of this product in the last 30 days before the discount was €38,406.75 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Description
Linear guides
- Top quality guides for all axes
- Massive machine body
- Good accessibility of the workbench
- Hermetic working chamber ensuring work safety
- SIEMENS SINUMERIK 808D CNC control
Technical data
| Range of motion | |
| X-axis | 550 mm |
| Y-axis | 400 mm |
| Z-axis | 450 mm |
| Distance from the spindle nose to the worktable | 100–550 mm |
| Distance from the center of the end piece to the column guide | 450 mm |
| Feed | |
| X axis rapid traverse | power | moment | 12 m/min | 1 kW | 4,78 Nm |
| Y axis rapid traverse | power | moment | 12 m/min | 1 kW | 4,78 Nm |
| Z axis rapid traverse | power | moment | 10 m/min | 2 kW | 9,55 Nm |
| Worktable | |
| Working table surface | 650 X 400 mm |
| Load capacity | 300 kg |
| Distance of the table surface from the bottom of the bed | 800 mm |
| T-slot | 3–18–115 mm |
| Spindle | |
| Rotation speed | 100–8000 RPM (option 10000 RPM) |
| Spindle taper bore | BT40 |
| Coolant pump | 120W |
| Main engine power | 5,5 kW |
| Tool magazine | |
| Tool diameter | 100 mm |
| Tool length | 300 mm |
| Tool weight | 7 kg |
| Tool change time | ok. 15s. |
| Other parameters | |
| Dimensions | 2300 x 2000 x 2750 mm |
| Weight | 2200 kg |
Standard equipment
- CNC control
- spindle 8,000 revolutions
- 16 tool magazine
- 3-color alarm lights
- lighting
- closed cooling system
- hermetic machine housing
- automatic lubrication system
- pneumatic system
Optional equipment
- SINUMERIK 828D control
- FANUC control
- Horizontal Tool Magazine (24)
- Cooling through the spindle
- 12,000 rpm spindle
- Chip collection
- Tool measurement probe
- Workpiece measurement probe
- 4 axis
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
