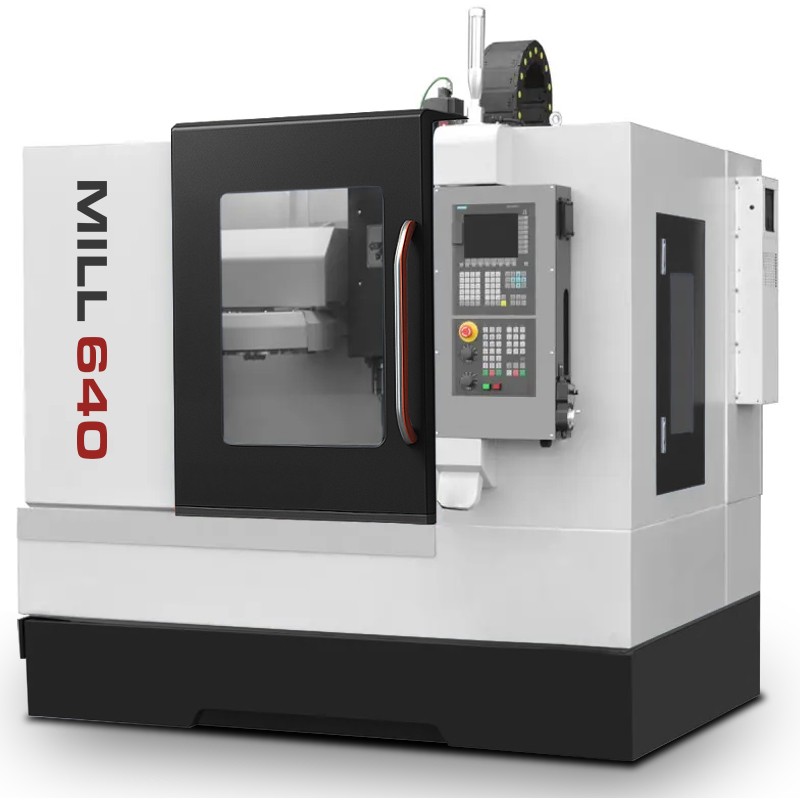

MILL640 Machining Centre
High-quality components used in the machine guarantee reliable operation for a long time. Machine is perfect to efficiently perform many operations such as milling, drilling, threading or reaming while maintaining high precision of machining. Each machine from this series has been equipped with an efficient cooling system to ensure optimal cutting conditions.
Linear guides
- Top quality guides for all axis
- Massive machine structure
- Well accessibility of the worktable
- Hermetic working chamber ensuring safety work
- SIEMENS CNC SINUMERIK 808D control system
Variant
MILL650 Premium Line Machining Centre
MILL1040 Machining Centre
Are you a member of the VIES group?
VAT included
€36,222.50
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Technical data
| Table dimensions | 700x400 mm |
| Spindle from table surface distance | 120 - 520 mm |
| Spindle axis to column distance | 450 mm |
| Table passage | 600 x 400 mm |
| Z axis travel range | 400 mm |
| Spindle taper | BT40 |
| Spindle speed | to 8 000 RPM (optional 10 000 RPM) |
| Number / width / distance of T-slots | 4 / 18 / 85 mm |
| Working feed | 1-10000 mm/min |
| Power (torque) of the feed drives | 1,5 / 1,5 / 2,5 kW |
| Spindle power | 4 kW (optional 5 kW or 7,5 kW) |
| Maximum table load | 300 kg |
| Weigth | 3500 kg |
Available equipment
- SINUMERIK 808D control system
- Spindle 8 000 RPM
- 16 tools magazine
- 3-colour alarm indicator
- Lighting
- Closed cooling system
- Hermetic body of the machine
- Automatic lubrication system
- Pneumatic system
Optional equipment
- SINUMERIK 828D control system
- Fanuc control system
- Horizontal tool magazine (24)
- Cooling by spindle
- Spindle 10 000 RPM
- Chip collection
- Tool measurement probe
- Workpiece measurement probe
- 4th axis
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
