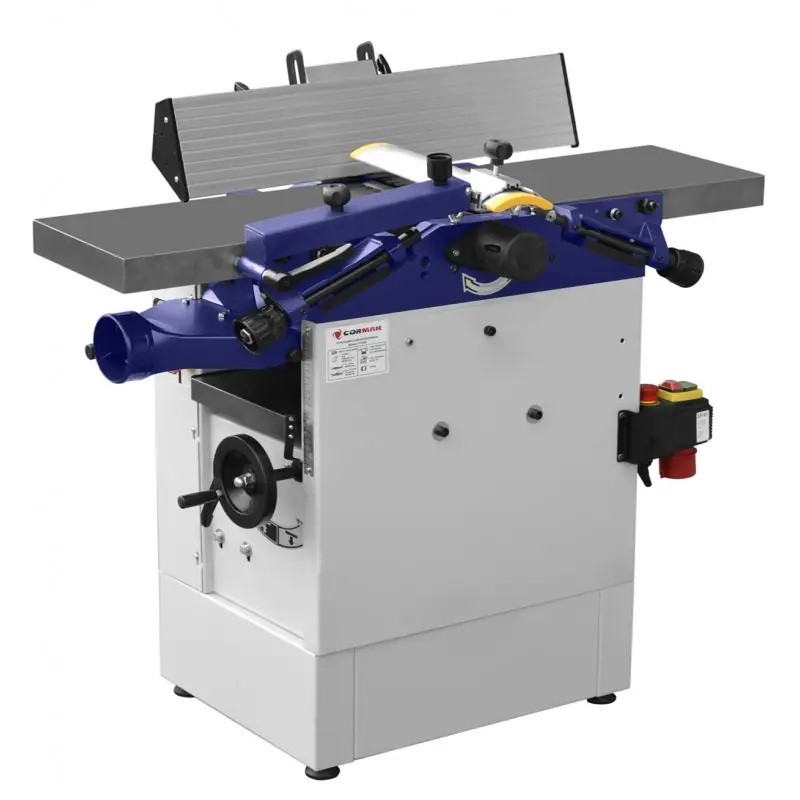

A planer-thicknesser, also known as a jointer, is a device designed for the initial processing of raw and hardwood as well as softwood (sawn timber). Its task is to level, give the wood the appropriate thickness and smoothness using mechanical processes. This tool is particularly useful in carpentry and furniture production, where precision and repeatability are key.
Stable construction with increased mass resistant to vibrations
The machine's weight of up to 170 kg combined with wide 260 mm cast iron polished tops guarantees great stability, which ensures safe work.
The additional rubber feet used allow for work without the slightest vibrations.
VERSION with the most powerful engine with a total power of S6: 2.6kW
The PT265 planer-thicknesser is distinguished by an exceptionally powerful engine with a total power of S6 2.6 kW (S1 2.2 kW). This is much more than competitive devices offer, which translates into greater efficiency and stability of work.
A more powerful engine means stable work and easy processing of hard materials: Hardwood requires more force for processing. The powerful engine will handle it without a problem.
Easy conversion from planer to thicknesser.
The conversion from planer to thicknesser is very quick and easy. It consists of unlocking the eccentrics and lifting the tables and moving the chip extraction cover.
Precision of work.
- Smooth height adjustment of the tops with a scale.
- The thicknessing table mounted centrally on the column has a knob for adjusting the setting up and down
- Aluminum pendulum ruler (700x150 mm) with a scale bar allowing for precise setting at an angle of 90-45 degrees.
Technical data:
| Knife shaft diameter [mm] |
75 |
| Knife shaft speed [rpm] |
4000 |
| Suction nozzle diameter [mm] |
100 |
| Swing ruler tilt angle [°] |
90 - 45 |
| Quantity knives |
3 |
| Knife dimensions [mm] |
250x30x3 |
| Table dimensions [mm] |
1100x250 mm |
| Thicknesser table [mm] |
600x248 mm |
| Maximum planer width [mm] |
250 |
| Maximum planer processing thickness [mm] |
5 |
| Maximum thickness of the thicknesser [mm] |
2.5 |
| Maximum cutting depth of the thicknesser [mm] |
3 |
| Maximum height for the thicknesser [mm] |
180 |
| Feed speed of the thicknesser [m/min] |
6 |
| Fence dimension [mm] |
700 x 150 |
| Machine dimensions (length x width) [mm] |
1100x250 |
| Weight [kg] |
170 |
| Total engine power |
S6:2.6 kW |
| Power supply |
400V |
| Instructions (DTR) |
Polish language |
| Declaration CE |
yes |
Optional equipment:
- Drilling and chiseling attachment
- Shaft and sawdust extraction
- Knife setting device
- Single-roll stands
