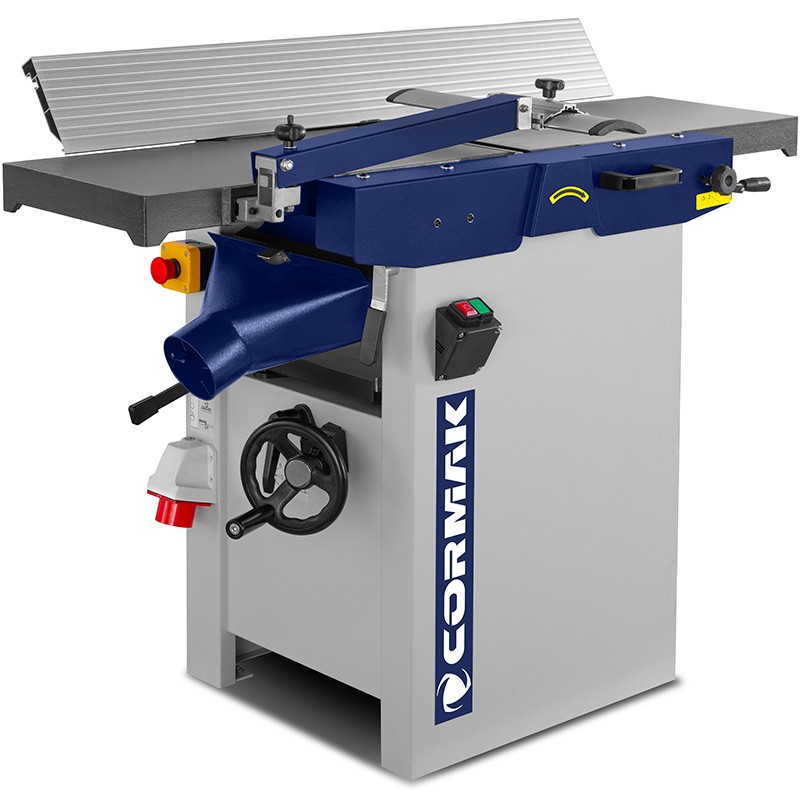

Thickness and surface planer CORMAK PT310ECO with cutter block
Model PT310ECO is a modern thickness planer for wood, designed for users seeking maximum efficiency with optimized capital costs. It excels in planing beams, slats, boards, and other elements. Equipped with robust cast‑iron work tables and a cutter block, it provides precise and repeatable material processing, regardless of wood type.
access_time
Shipping time:
7 working days after receipt of payment
Instructions in Polish
Service
Warranty 12/24 months
Delivery 100,00 PLN
Thickness and Surface Planer CORMAK PT310ECO with Cutter Block – Precision Machining and Work Efficiency
The CORMAK PT310ECO is a modern planer‑thicknesser engineered for high-quality finish, reliability, and low noise levels. Thanks to its cutter block, it is an advanced woodworking machine combining jointing and thickness functionality in a single robust structure. The stable build and powerful motor make it a versatile solution for professional woodworking—ideal for both carpentry shops and artisan workshops.
Key Machine Advantages
Cutter-block shaft – three HSS knives 310 × 25 × 3 mm ensure long service life, precise planing, and reduced noise.
Massive work tables – cast iron construction minimizes vibration and ensures stable material feed.
High power – motor rated at 2.2 kW (S1) / 2.6 kW (S6) provides consistent performance even under heavy loads.
Large working area – 310 mm width and up to 180 mm thickness capacity accommodate various workpieces.
Efficient chip extraction – Ø100 mm port enables seamless connection to a dust‑extraction system.
Construction and Technology
The PT310ECO is equipped with a 75 mm diameter cutter block that ensures smooth operation and superior durability compared to conventional knives. The planer/thicknesser features cast‑iron tables sized 1290 × 310 mm (surface planer) and 540 × 310 mm (thicknesser), both highly wear‑resistant. Additionally, the machine offers fence angle adjustment from 90° to 45°, enabling precise angled milling.
Precision and Performance
Maximum planing depth
Jointing mode: 3 mm
Thicknessing mode: 4 mm
Cutter-block rotational speed: 5,500 rpm
Stable structure enables finishes ready for gluing, coating, or further processing.
A reliable thicknesser for both serial production and smaller‑scale projects.
Applications
Ideal for:
Professional carpentry and furniture workshops
Prototyping labs and training centers
Maintenance departments in industrial plants
Technical schools and vocational institutions
Standard Equipment
Three‑knife cutter block
Cast‑iron work tables
Cutter head guard
Ø100 mm chip extraction port
Feed‑in switch and safety shutdown
Optional Equipment
Mobile trolley for the machine
Chip‑extraction unit
Technical Data
Specification
Value
Surface‑planing table size
1,290 × 310 mm
Thicknessing table size
540 × 310 mm
Cutter-block diameter
75 mm
Cutter-block speed
5,500 rpm
Number/dimensions of knives
3 knives / 310 × 25 × 2.5 mm
Fence angle adjustment
90°–45°
Chip outlet diameter
100 mm
Max. thicknessing height
180 mm
Max. cut depth: planing/thickness
3 mm / 4 mm
Motor power (S1/S6)
2.2 kW / 2.6 kW
Max. workpiece width
310 mm
Gross weight
200 kg
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI street Brzeska 120, 08-110 Siedlce, Poland
