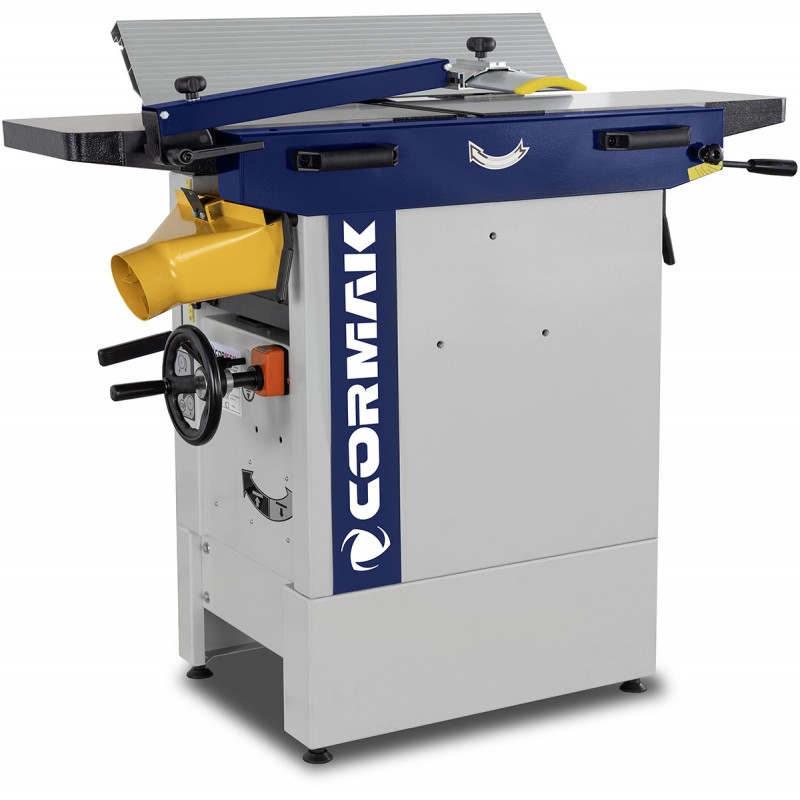

CORMAK PT265 230V planer-thicknesser NEW VERSION

The Cormak PT265 planer-thicknesser is a solid and well-thought-out design that offers a wide range of adjustments and mechanical processing of both hard and soft wood. The adjustment itself is simple and changing the planer to a thicknesser takes a few seconds.

Variant

PT310 Planer and Thicknesser

PT410 Planer and Thicknesser

CORMAK PT265 400V planer-thicknesser NEW VERSION

Have questions? Call us!

+48 25 631 00 27 ext.130

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

€1,197.50

The lowest price of this product in the last 30 days before the discount was €1,222.50 gross

access_time Shipping time: 7 working days after receipt of payment

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

The latest version of the machine with an innovative tabletop opening system:

❌ Competitive old-style machines have "butterfly" tops. Before each start of work, the feed and receiving tops must be calibrated with each other. Even small differences between them lead to damage in the material, giving undesirable effects.

✔️ The new solution of connected tops allows precise adjustment of both tables at the same time! Thanks to this, once set, the tops are permanently calibrated. When changing the planing height, both tops move simultaneously.

✔️ This solution not only saves time, makes working with the machine more convenient, but also increases the precision of planing by 30% compared to the old solution. This is very important, especially when working with thinner materials.

Stable, vibration-resistant construction

The machine's weight of up to 170 kg combined with wide 265 mm cast iron polished tops guarantees great stability, which ensures safe work.

The additional rubber feet used allow you to work without the slightest vibration.

VERSION with the most powerful engine with a total power of S6: 2.6kW

The PT265 planer-thicknesser is distinguished by an exceptionally powerful engine with a total power of S6 2.6 kW (S1 2.2 kW). This is much more than competitive devices offer, which translates into greater efficiency and stability of work.

A more powerful engine means stable operation and easy processing of hard materials: Hardwood requires more force to process. A powerful engine will handle this without a problem.

Easily convert your planer into a thicknesser.

The change from planer to thicknesser is very quick and easy. It involves unlocking the eccentrics and lifting the tables and moving the chip extraction cover.

Precision work.

- Smooth height adjustment of table tops with scale.

- The thicknessing table mounted centrally on the column has a knob for adjusting the setting up and down

- Aluminum swinging ruler (700x150 mm) with a scale allowing for precise setting at an angle of 90-45 degrees.

Technical data:

Knife shaft diameter [mm]	75
Knife shaft revolutions [rpm]	4000
Suction port diameter [mm]	100
Pendulum ruler tilt angle [°]	0 - 45
Number of knives	3
Shaft length [mm]	262
Knife dimensions [mm]	250x30x3
Maximum planer width [mm]	265
Maximum thicknesser width [mm]	265
Maximum planing height [mm]	180
Maximum cutting depth of thicknesser [mm]	3
Maximum cutting depth of the planer [mm]	2.5
Thicknesser feed speed [m/min]	6
Size of the fence [mm]	700x150
Machine dimensions (length x width) [mm]	1080x269
Weight [kg]	170
Total engine power	S6:2.6kW
Power supply	230V
Instruction Manual (DTR)	Polish
CE declaration	Yes
