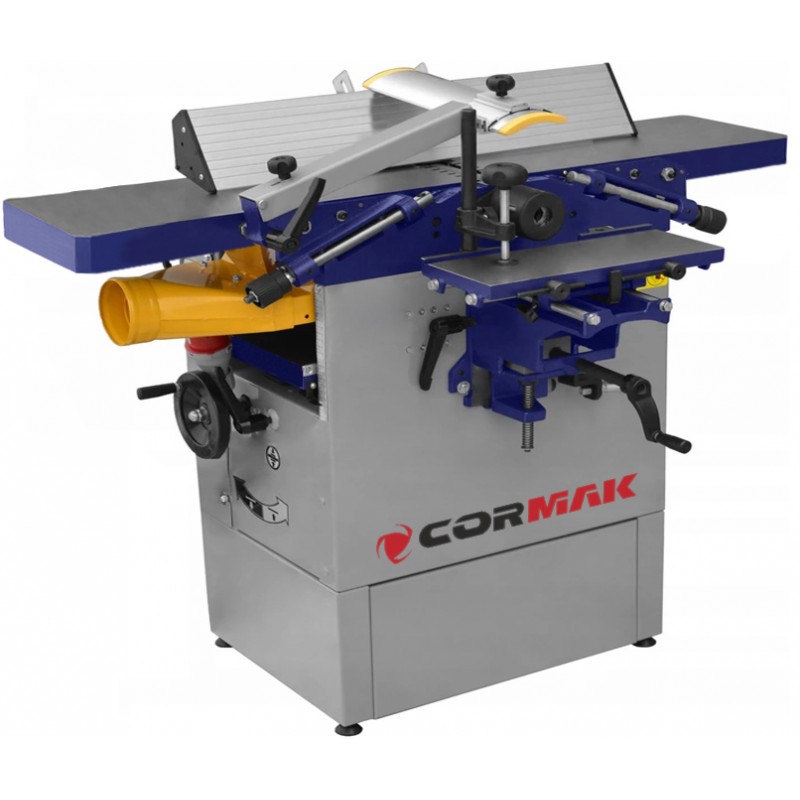

PT250 230V Planer and Thicknesser
This planer is designed for soft and hard wood. Its robust cast iron design ensures silent and vibration-free operation due to the high-quality knives.
Are you a member of the VIES group?
VAT included
€1,047.50
The lowest price of this product in the last 30 days before the discount was €1,020.27 gross
Shipping time:
7 working days after receipt of payment
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
150,00 PLN
Machine features
This planer and thicknesser is a well-designed machine, providing large adjustment and mechanical machining possibilities of hard and soft wood. Adjustment itself is relatively simple and transforming the planer into a thicknesser takes only a couple of seconds. Relatively high weight (148 kg) ensures stability, and work safety, reducing vibrations with additional anti-vibration feet.
Advantages of the planer
- Both tables of the planer are made of high-quality cast iron, with ground and Ra 1.6 polished surface
- Shaft guard can be freely set, adjusting its height, angle as well as extension
- Angular guide can be smoothly adjusted in the 90° – 45° range
- Planer tables involve additional sound dampeners decreasing noise
Advantages of the thicknesser
- Thicknesser table is made of high-quality cast iron, with ground and polished surface
- Height is adjusted through a large and convenient handwheel, which, after adjustment, can be locked with an additional eccentric
- Its table is supported in 3 places
- Thicknessing can be lowered down to 190 mm
- Machine equipped with rollers (driving and receiving) which are located very close to the shaft, allowing for machining even short elements
- Roller feed drive is based on a belt, ensuring slip-free work (no "tooth marks" on the workpiece)
Technical data
|
Knife shaft diameter |
75 mm |
|
Knife shaft speed |
4800 rpm |
|
Extracting connector diameter |
100 mm |
|
Swinging rule tilt angle |
0–45° |
|
Number of knives |
3 |
|
Maximum surface planer width |
250 mm |
|
Maximum thickness planer width |
248 mm |
|
Maximum surface planing height |
180 mm |
|
Maximum thickness planer machining depth |
3 mm |
|
Maximum surface planer machining depth |
2.5 mm |
|
Thickness planer feed speed |
6 m/min |
|
Dimensions (L×W) |
1080×260 mm |
|
Weight |
150 kg |
|
Motor power |
2.0 kW |
|
Power supply |
230V |
|
User manual |
yes |
|
EC declaration |
yes |
Optional equipment
- Support table with rollers
- Drill-chisel attachment
- Chip and sawdust extractor
- Instrument for setting knives
- One-roller stand
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
See online videos
Related categories
Are you interested in this product?
Contact with us
phone: +48 501 944 934
export@cormak.pl
phone: +48 609 939 400
export@cormak.pl
phone: +48 609 939 051
export@cormak.pl
phone: +48 609 939 741
export@cormak.pl
You might also like
TS-150 Grinder and Sharpener for Planer Knives, Drills, Chisels
Universal sharpener, grinder, for planer knives, chisels, drills, etc. It is characterized by massive and stable construction as well as simple technical solutions. It has great possibilities of sharpening tools depending on the application. Knife length up to 650 mm. ...More
- Reduced price
FM300 230V Portable Dust and Fume Collector & Extractor 2530 m3/h
FM300 extractor is a simple machine for extracting chips and sawdust. Capability of quick bag replacement and portability due to the wheeled base make our extractor very practical. Additionally, absorber's metal rotor ensures quiet operation. Despite providing such great features as failure-free ...More
FM300 400V Portable Dust and Fume Collector & Extractor 2530 m3/h
FM300 extractor is a simple machine for extracting chips and sawdust. Capability of quick bag replacement and portability due to the wheeled base make our extractor very practical. Additionally, absorber's metal rotor ensures quiet operation. Despite providing such great features as failure-free ...More
FM300S Portable Dust and Fume Collector & Extractor 3900 m3/h Double Bag
All CORMAK company extractors feature easy operation and quick bag replacement. Wheeled base ensures portability. Extractor's quiet and failure-free operation is provided by a metal rotor. Affordable price with high efficiency. ...More
- Reduced price
Mobile roller with 4 locking wheels M900 for machines
Mobile base for M900 machines is an innovative solution for the industrial sector. It is a portable and easy-to-use base that allows safe and stable placement of various types of machinery and equipment. Thanks to its construction and high-quality materials, the M900 mobile base is very durable ...More
Reviews
10 other products in the same category:
CORMAK PT265 230V planer-thicknesser NEW VERSION
The Cormak PT265 planer-thicknesser is a solid and well-thought-out design that offers a wide range of adjustments and mechanical processing of both hard and soft wood. The adjustment itself is simple and changing the planer to a thicknesser takes a few seconds. ...More
CORMAK PT265 400V planer-thicknesser NEW VERSION
The Cormak PT265 planer-thicknesser is a solid and well-thought-out design that offers a wide range of adjustments and mechanical processing of both hard and soft wood. The adjustment itself is simple and changing the planer to a thicknesser takes a few seconds. ...More
Planer-thicknesser CORMAK PT260 230V NEW VERSION
The thicknesser is a versatile woodworking tool for levelling, thickness and smoothness of wood. Ideal for carpentry and furniture making, it enables precise planing, surface smoothing, edge working, board making, production of joinery components and preparation of materials for gluing. It is a ...More
- Reduced price
Planer-thicknesser CORMAK PT260 400V NEW VERSION
The thicknesser is a versatile woodworking tool for levelling, thickness and smoothness of wood. Ideal for carpentry and furniture making, it enables precise planing, surface smoothing, edge working, board making, production of joinery components and preparation of materials for gluing. It is a ...More
- Reduced price

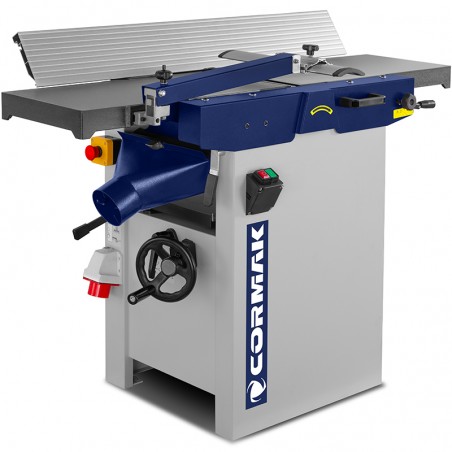

Thickness and surface planer CORMAK PT310ECO with cutter block
