Planer-Thicknesser CORMAK PT260Q 400V

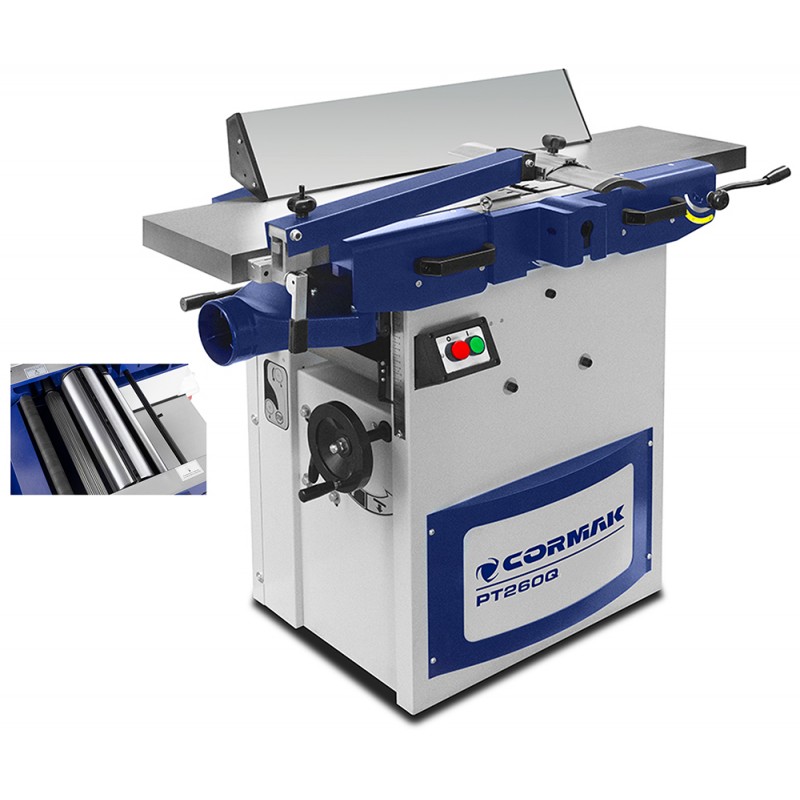

Planer Thicknesser CORMAK PT260Q 400V NEW VERSION – precision woodworking machine in a modern design

The CORMAK PT260Q 400V planer thicknesser is a professional machine combining the functionality of a surface planer and a thicknesser. Equipped with an advanced integrated table system and a powerful three-phase motor, it ensures reliability and high precision when processing both hardwood and softwood. The machine is perfect for carpentry shops, production workshops, and all environments where efficiency, repeatability, and accuracy are crucial.

Main features

• Three-phase motor S6: 2.6kW – enables long and stable operation with demanding materials without speed loss.
• Integrated working tables – innovative lifting system allows simultaneous table adjustment, eliminating the need for recalibration.
• Stable cast iron construction – 175kg weight and precision-made components guarantee vibration elimination and high accuracy even with thin workpieces.
• Instant mode switching – intuitive mechanism for quick transition between surface planer and thicknesser modes.
• Efficient chip extraction – Ø100mm dust port ensures smooth operation with extraction systems.

Construction and technology

The CORMAK PT260Q is built on a rigid cast iron frame and worktables resistant to deformation. The main tables are interconnected and adjusted simultaneously, eliminating alignment errors typical of split-table constructions. This technology not only speeds up setup but also increases machining precision by up to 30% compared to older solutions. The tilting fence (700 × 150mm) adjustable between 90°–45° allows precise angled machining.

Precision and performance

The machine features a Ø75mm cutterhead with three 250mm knives rotating at 4,000rpm, delivering perfectly smooth surfaces. The maximum working width is 250mm and the maximum thicknessing cutting depth is 3mm. The centrally mounted thicknessing table allows precise height adjustment, while the 6m/min feed rate ensures efficient processing of larger volumes of material.

Applications

The CORMAK PT260Q planer thicknesser is designed for demanding users:

• Carpentry and furniture workshops – for serial production from solid wood.
• Craft workshops – for precision machining of structural and finishing elements.
• Technical schools – as a training machine for learning planing and thicknessing.

Standard equipment

• Ø75mm cutterhead with 3 knives 250 × 30 × 3mm
• Integrated surface planer and thicknesser tables
• Adjustable fence 700 × 150mm (90–45°)
• Precision table height adjustment mechanism
• Ø100mm dust extraction port
• User manual
• CE declaration of conformity

Optional equipment

• Mortising and drilling attachment
• Chip and dust extraction system
• Roller stands
• Knife setting device

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

Choose proven technology – select the CORMAK PT260Q 400V NEW VERSION planer thicknesser and optimise your woodworking process.

Technical data
