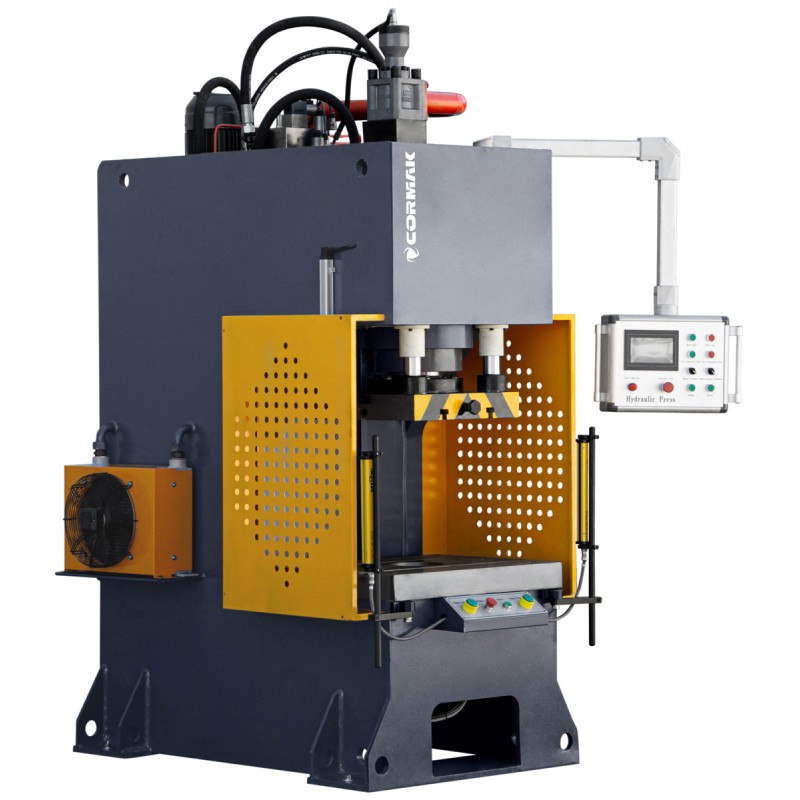

CORMAK 60T Hydraulic Eccentric Press
A robust and efficient 60 ton hydraulic press, ideal for bending, stamping, punching and straightening metal elements. The "C" type design provides easy access to the workspace and high rigidity of the entire machine. The press is equipped with a precise PLC controller with a touch HMI panel, which allows easy programming and control of the work cycle. The hydraulic system based on reliable components guarantees smooth and safe operation, and position sensors ensure high repeatability and accuracy of the operation.
THE MACHINE MEETS ALL SAFETY STANDARDS AND HAS A CE CERTIFICATE
| Nominal pressure (kN) | 600 |
| Stroke adjuster (mm) | 10–120 |
| Maximum Stroke (mm) | 130 |
| Loading height (mm) | 160–270 |
| Number of passes (l/min) | 30–60 |
| Quick speed (mm/s) | 220 |
| Working speed (mm/s) | 8 |
| Return speed (mm/s) | 180 |
| Workbench - width (mm) | 650 |
| Workbench - depth (mm) | 450 |
| Blinding hole (mm) | 150 |
