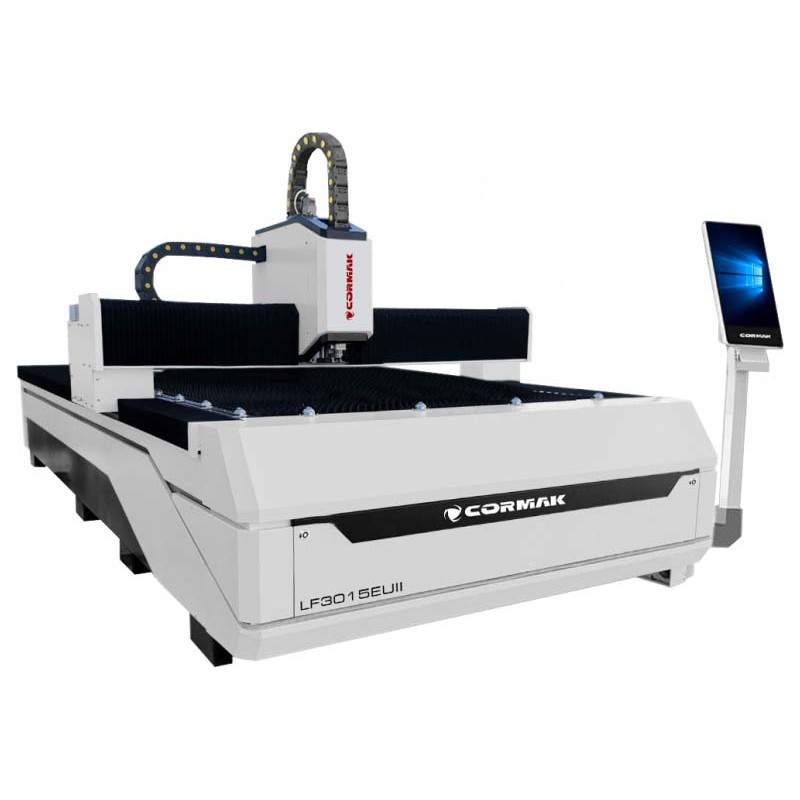

Fibre Laser Cutter CORMAK FIBER LF3015EP4 6000W

Fibre laser cutting machines are modern devices that stand out for their numerous advantages. They are not only an excellent and much more cost-effective alternative to CO₂ technology but also feature many benefits that allow up to 70% production growth and improved quality. The FIBER technology enables cutting of sheets and other materials of various thicknesses, from very thin to very thick. The wavelength of the FIBER laser is 1.064 micrometres. These properties provide an intensity 100 times higher than CO₂ systems of comparable power.

MAIN ADVANTAGES OF THE LASER

• Long service life. The collimating and focusing lenses are equipped with a water-cooling radiator, which reduces the cutting head temperature to extend its service life.
• Wider adjustment range. Adjustment range -10 mm ~ +10 mm, precision 0.01 mm, suitable for different plate types 0 ~ 20 mm.
• Automatic focus adjustment (above 1500W) – Autofocus – The software automatically adjusts the focusing lens while cutting sheets of different thicknesses. The autofocus speed is ten times faster than manual adjustment.








Design Screen

The screen features a vertical display with fast response time, higher contrast, wider viewing angle, low power consumption, and high resolution. It also offers high brightness, lower reflectivity, and increased durability.

Welded Bed Frame Made of Rectangular Profiles

The bed structure features an internal honeycomb-like design made of welded rectangular tubes. Reinforcements inside the tubes increase the bed’s strength, rigidity, and stability of the guide rail, effectively preventing deformation. High strength, stability, and tensile resistance ensure 20 years of use without deformation.

Technical Specifications

Cutting Parameters

Actual parameters may vary depending on technical conditions and materials used.

1. RAYTOOLS head
2. Linear guides: HIWIN
3. Gears and racks: YYC
4. DELTA servomotors
5. MOTOREDUCER gearbox
6. Pneumatic components: SMC
7. Electrical components such as contactors, relays, sensors from: Schneider, OMRON, IDEM
8. CypCut software
9. Chiller (water cooler): S&A
10. Voltage stabiliser: TNS

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
