Laser cutting machines are modern devices that stand out for their numerous advantages. They are not only an excellent and far more cost-effective alternative to CO2 technology, but they also offer many benefits that can boost productivity (up to 70%) and improve overall quality. FIBRE technology allows cutting of sheets and other materials of varying thicknesses — from very thin to very thick. The wavelength of a FIBRE laser is 1.064 micrometres, producing an intensity 100 times greater than that of CO2 lasers of comparable power.
MAIN ADVANTAGES OF THE LASER
- maintenance-free fibre source
- no consumable parts
- fibre laser source occupies about one-third less space
- high energy efficiency – 100,000 h of operation
- universal application (special steels, mild and stainless steel, copper, brass, aluminium, titanium)
Fibre laser
- increases productivity by 80%
- reduces maintenance costs by 70%
- saves 80% of energy
- minimises gas consumption
- saves 30% of workshop space
Dual Functionality and Cost Efficiency

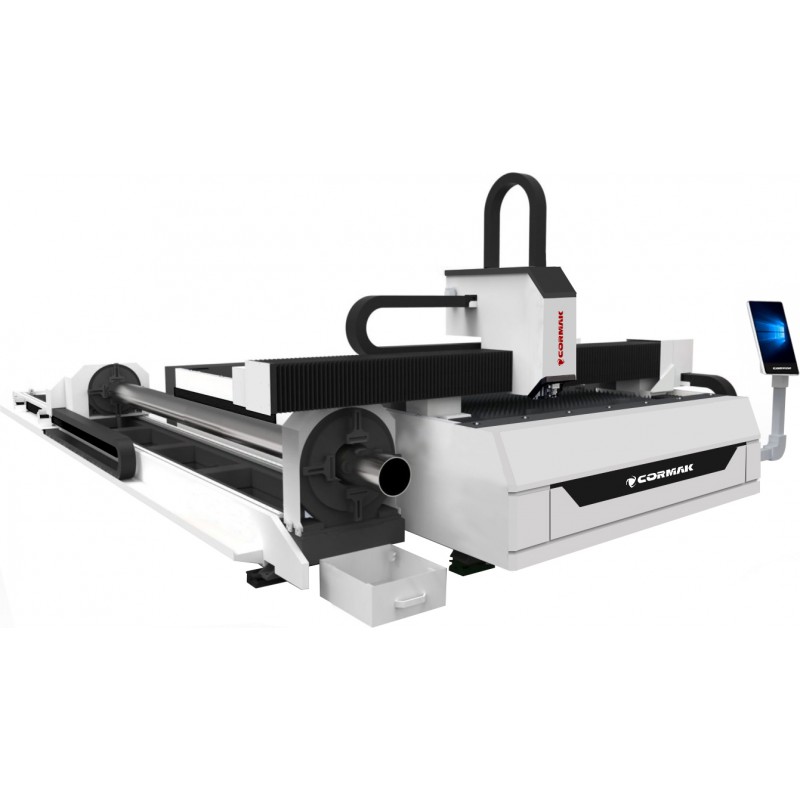

The LF3015EPR fibre laser cutting machine not only cuts sheet metal but also tubes and profiles. It offers multiple applications and saves over 50% of workspace, effectively improving production efficiency.
Electric Clamping Chuck
The chuck grips the profile in two directions and automatically performs alignment. The diagonal adjustment range is 20–240 mm.
Welded Bed Made of Rectangular Profiles
The frame features an internal honeycomb structure made of welded rectangular tubes. Reinforcements inside the tubes enhance rigidity and stability, improving guide rail precision and preventing deformation. Its high strength and durability ensure up to 20 years of operation without distortion.
Automatic Tube Support
The intelligent tube support system effectively prevents deformation during cutting of long pipes.
Raytools Cutting Head
- Automatic Focus Adjustment – Autofocus – The software automatically adjusts the focusing lens when cutting materials of different thicknesses. The autofocus speed is ten times faster than manual adjustment.
- Extended Manual Adjustment Range – Adjustment range: -10 mm to +10 mm, precision 0.01 mm, suitable for materials 0–20 mm thick – for powers below 1500W.
- Long Service Life – Collimating and focusing lenses are water-cooled, lowering the cutting head temperature and extending its lifespan.
Technical Parameters
| WORKING AREA |
1500x3000
|
| POWER |
4000W
|
| REPEATABLE POSITIONING ACCURACY |
±0.02 mm/m |
| MAXIMUM SPEED |
50 m/min |
| POWER SUPPLY |
400V 50Hz |
Cutting Parameters
Actual parameters may vary depending on technical conditions and materials used.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
