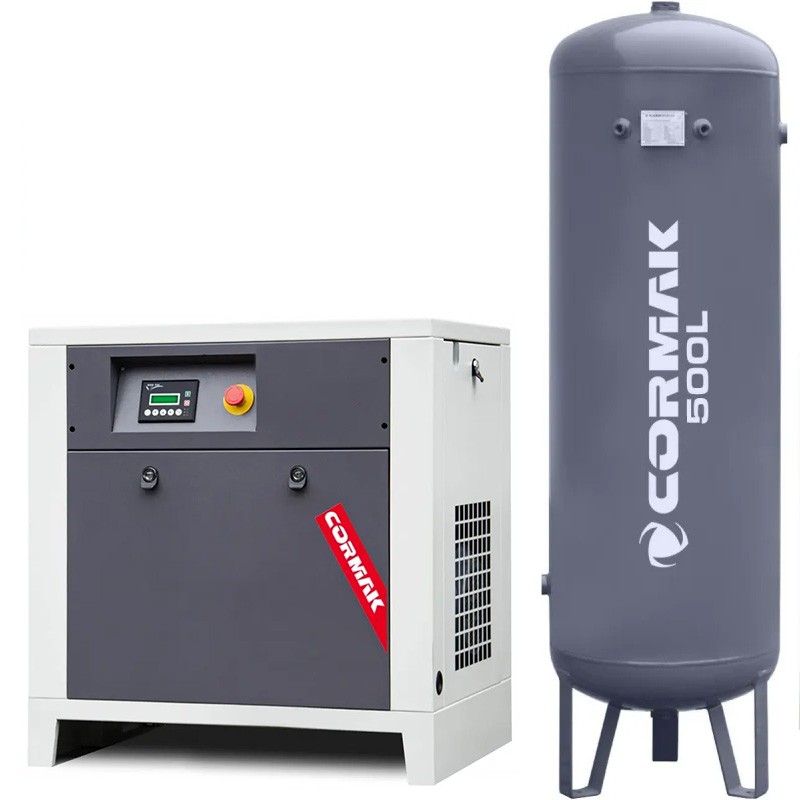

LUFT 700 Compressor Set - 5.5kW - 650L/min. + 500 L vertical cylinder

A set containing the LUFT 700 screw compressor, a vertical cylinder with compressed air accessories with a capacity of 500 l. The LUFT series screw compressor of the Polish brand CORMAK is the most modern solutions used in pneumatics combined with the use of high-quality materials and components. Low operating costs, ease of use, ergonomic and solid construction and high efficiency of the device guarantee effective and trouble-free operation.

Variant

THEOR 30 compressor set with inverter + IZBERG N30S dehumidifier + 500L vertical cylinder

THEOR 30 compressor set with inverter - 22kW - 3200 L/min. + IZBERG N30S dehumidifier + 1000L vertical cylinder

LUFT 1000 Compressor Set - 7.5kW - 950 L/min. + IZBERG N10S dehumidifier + 500 L vertical cylinder

LUFT 1000 Compressor Set - 7.5kW - 950 L/min. + IZBERG N10S dehumidifier + 1000 L vertical cylinder

THEOR 50 compressor set with inverter - 37kW - 7000 L/min. + IZBERG N75S dehumidifier + 1000L vertical cylinder

Set THEOR 50 compressor with inverter + IZBERG N75S dehumidifier + 500L vertical cylinder

THEOR 75 compressor set with inverter + IZBERG N75S dehumidifier + 500L vertical cylinder

THEOR 75 compressor set with inverter + IZBERG N75S dehumidifier + 1000L vertical cylinder

Set LUFT 700 compressor + IZBERG N10S dehumidifier + 500 L vertical cylinder

THEOR 50 set + 500 L vertical cylinder

THEOR 20 compressor set with inverter - 15kW - 2000 L/min. + IZBERG N20S dehumidifier + 500 L vertical cylinder

THEOR 20 compressor with inverter - 15kW - 2000 L/min. + IZBERG N20S dryer + 1000L vertical tank

THEOR 20 Compressor Set - 15kW - 2000 L/min. + IZBERG N20S Dryer + 1000L Vertical tank

THEOR 50 set + 500 L vertical cylinder

LUFT 700 Compressor Set - 5.5kW - 650L/min.+ Vertical cylinder 270 L

LUFT 700 Compressor Set - 5.5kW - 650 L/min. + IZBERG N10S dehumidifier + 270 L vertical cylinder

LUFT 1000 Compressor Set - 7.5kW - 750 L/min. + IZBERG N10S dehumidifier + 270 L vertical cylinder

LUFT 400 Compressor Set - 3.0kW - 380L/min. 230V + 270 L Vertical Cylinde

LUFT 400 Compressor Set - 3.0kW - 380L/min. 230V + N10S Dehumidifier + 270 L Vertical Cylinder

Compressor set LUFT 700 - 5.5kW - 650L/min. + Vertical bottle 200 L

Set Compressor LUFT 700 - 5.5kW - 650 L/min. + Dryer IZBERG N10S + Vertical bottle 200 L

Compressor set LUFT 400 - 3.0kW - 380L/min. 230V + Vertical bottle 200 L

LUFT 400 Compressor Set - 3.0kW - 380L/min. 230V + N10S dehumidifier + 200 L vertical cylinder

Have questions? Call us!

+48 25 631 00 27 ext.130

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

€3,012.50

The lowest price of this product in the last 30 days before the discount was €2,962.50 gross

access_time Shipping time: 7 working days after receipt of payment

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

The most important advantages

strong, compact design of a screw compressor from a European manufacturer
automation based on modern and quality-tested components to ensure safe and effective work
a specially designed cooler ensures optimal operating conditions even when the device is heavily loaded
connection of the radiator to the module through good quality hydraulic lines
the technology used allows for significant energy savings
special air outlet design for more efficient work
an efficient and solid pump is installed in the compressor
a unique filtration system with three-fold separation to ensure effective operation
The compressor uses a reliable and reliable drive transmission system using a belt transmission, which ensures high effective efficiency
low noise of the screw compressor thanks to a specially designed soundproof housing (sound-insulating boards)
electronic control from the MAM series allows you to set parameters, including: periods between service inspections, power failure alarms, phase direction changes, phase loss, overheating, others, operation in Master/Slave mode, ability to connect up to 16 devices in a pneumatic network, possibility of remote control using a computer and others

Technical parameters of LUFT 700

Engine power	5.5 kW
Tension	400V/50Hz
Dimensions	810 x 610 x 850 mm
Weight	120 kg
Efficiency	0-6 bar - average 690 L/min At 6 bar - 650 L/min At 8 bar - 650 L/min At 10 bar - 630 L/min
Outlet diameter (G)	1/2"

500l tank parameters:

Weight (kg)	145
Connections	8
Connection size	1/2", 2"
Size	209.8x60 cm
Tank capacity (l)	500
Working pressure (bar)	11
Wall Thickness(mm)	4
Diameter (mm)	Ø 500
Height (mm)	210
