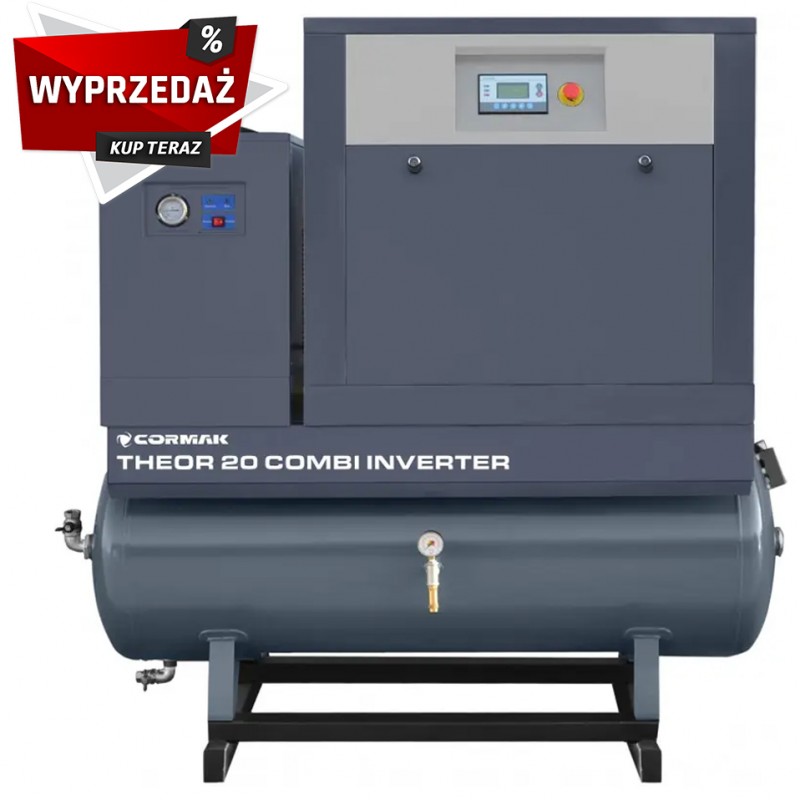

THEOR 20 COMBI-500 INVERTER - THEOR 20 INVERTER Screw Compressor + N20S Air-Dryer + 500L Container
The set includes THEOR 20 compressor INVERTER, N20S air dryer and a 500 l compressed air cylinder. The screw compressor of the Polish brand CORMAK, the THEOR series, is the most modern solutions used in pneumatics in combination with the use of high-quality materials and components. Low operating costs, ease of use, ergonomic and solid construction as well as high efficiency of the device guarantee effective and trouble-free operation.
Are you a member of the VIES group?
VAT included
€7,340.00
The lowest price of this product in the last 30 days before the discount was €7,149.16 gross
Shipping time:
7 working days after receipt of payment
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Most important advantages:
- hard, compact construction of screw compressor from the European producer
- specially designed cooling system ensures optimal working conditions even at high load of the device
- connection of the cooling system to the module through good quality hydraulic wires
- this technology allows significant energy saving
- special construction of air outlet for effective work
- efficient and solid pump installed in compressor
- unique filtration system with triple separation for effective work
- efficient motor with power 7.5 kW made in IP54 standard using a belt transmission, which ensures high effective efficiency
- lower noise of screw compressor thanks to apply specially designed soundproofed case (soundproofing plates)
- electronic controller from MAM series allow to set parameters: time between service inspections, power failure alarms, phase change, phase loss, overheating, other, work in Master / Slave mode, it is possible to connect up to 16 devices in the pneumatic network, possibility of remote control by means of a computer and other
THEOR 20 Technical data | |
|---|---|
| Motor power | 15 kW |
| Power supply | 400V/50Hz |
| Supposed air flow | 2.6 m3/min |
| Actual air flow | 1.768–2.2 m3/min |
| Dimensions | 1080 x 750 x 1000 mm |
| Weight | 290 kg |
Technical parameters of N20S
| DEW POINT TEMPERATURE AT 3 C DEGREE |
|
| WORK IN SYSTEMS UNDER PRESSURE UP TO 16 BAR | |
| Efficiency | 2800 L/MIN |
| Power | 0,73 kW |
| Voltage | 230V |
| Weight | 85 kg |
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
See online videos
