LUFT 700 Compressor Set - 5.5kW - 650 L/min. + IZBERG N10S dehumidifier + 270 L vertical cylinder

LUFT 700 Compressor Set - 5.5kW - 650 L/min. + IZBERG N10S dehumidifier + 270 L vertical cylinder -
  • LUFT 700 Compressor Set - 5.5kW - 650 L/min. + IZBERG N10S dehumidifier + 270 L vertical cylinder -
  • LUFT 700 Compressor Set - 5.5kW - 650 L/min. + IZBERG N10S dehumidifier + 270 L vertical cylinder -
  • LUFT 700 Compressor Set - 5.5kW - 650 L/min. + IZBERG N10S dehumidifier + 270 L vertical cylinder -
  • LUFT 700 Compressor Set - 5.5kW - 650 L/min. + IZBERG N10S dehumidifier + 270 L vertical cylinder -
  • LUFT 700 Compressor Set - 5.5kW - 650 L/min. + IZBERG N10S dehumidifier + 270 L vertical cylinder -
  • LUFT 700 Compressor Set - 5.5kW - 650 L/min. + IZBERG N10S dehumidifier + 270 L vertical cylinder -
  • LUFT 700 Compressor Set - 5.5kW - 650 L/min. + IZBERG N10S dehumidifier + 270 L vertical cylinder -
  • LUFT 700 Compressor Set - 5.5kW - 650 L/min. + IZBERG N10S dehumidifier + 270 L vertical cylinder -

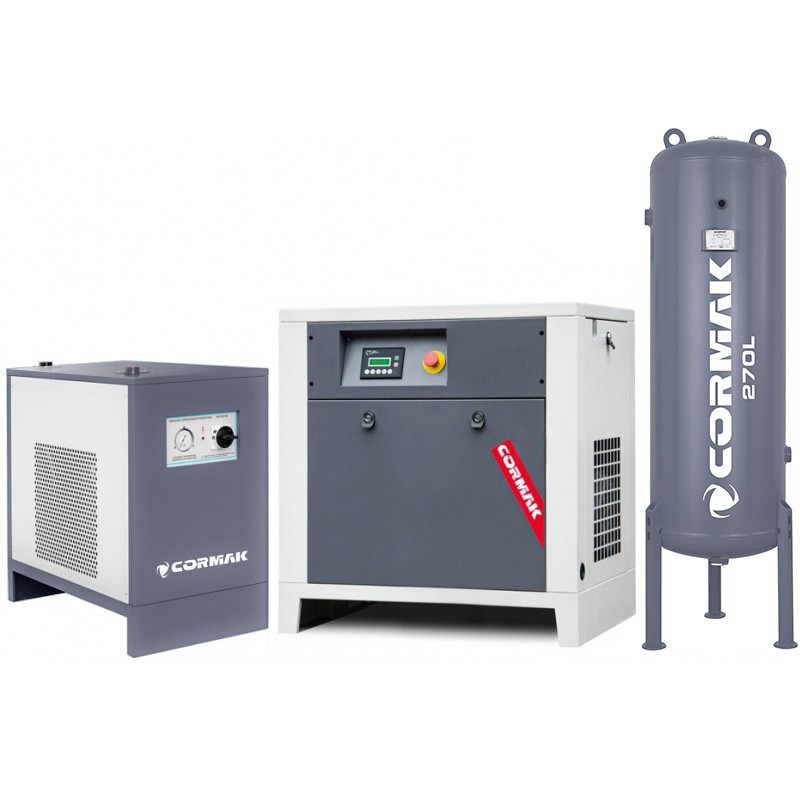

The set includes a LUFT 700 screw compressor , a vertical cylinder with compressed air accessories with a capacity of  270 l and an IZBERG N10S dryer . The screw compressor of the Polish brand CORMAK , the LUFT  series , is the most modern solutions used in pneumatics combined with the use of high-quality materials and components. Low operating costs, ease of use, ergonomic and solid construction and high efficiency of the device guarantee effective and trouble-free operation.

Variant
THEOR 30 compressor set with inverter + IZBERG N30S dehumidifier + 500L vertical cylinder
THEOR 30 compressor set with inverter - 22kW - 3200 L/min. + IZBERG N30S dehumidifier + 1000L vertical cylinder
LUFT 1000 Compressor Set - 7.5kW - 950 L/min. + IZBERG N10S dehumidifier + 500 L vertical cylinder
LUFT 1000 Compressor Set - 7.5kW - 950 L/min. + IZBERG N10S dehumidifier + 1000 L vertical cylinder
THEOR 50 compressor set with inverter - 37kW - 7000 L/min. + IZBERG N75S dehumidifier + 1000L vertical cylinder
Set THEOR 50 compressor with inverter + IZBERG N75S dehumidifier + 500L vertical cylinder
THEOR 75 compressor set with inverter + IZBERG N75S dehumidifier + 500L vertical cylinder
THEOR 75 compressor set with inverter + IZBERG N75S dehumidifier + 1000L vertical cylinder
Set LUFT 700 compressor + IZBERG N10S dehumidifier + 500 L vertical cylinder
THEOR 50 set + 500 L vertical cylinder
THEOR 50 set + 500 L vertical cylinder
THEOR 20 compressor set with inverter - 15kW - 2000 L/min. + IZBERG N20S dehumidifier + 500 L vertical cylinder
THEOR 20 compressor with inverter - 15kW - 2000 L/min. + IZBERG N20S dryer + 1000L vertical tank
THEOR 20 Compressor Set - 15kW - 2000 L/min. + IZBERG N20S Dryer + 1000L Vertical tank
THEOR 50 set + 500 L vertical cylinder
LUFT 700 Compressor Set - 5.5kW - 650L/min. + 500 L vertical cylinder
LUFT 700 Compressor Set - 5.5kW - 650L/min.+ Vertical cylinder 270 L
LUFT 1000 Compressor Set - 7.5kW - 750 L/min. + IZBERG N10S dehumidifier + 270 L vertical cylinder
LUFT 400 Compressor Set - 3.0kW - 380L/min. 230V + 270 L Vertical Cylinde
LUFT 400 Compressor Set - 3.0kW - 380L/min. 230V + N10S Dehumidifier + 270 L Vertical Cylinder
Compressor set LUFT 700 - 5.5kW - 650L/min. + Vertical bottle 200 L
Set Compressor LUFT 700 - 5.5kW - 650 L/min. + Dryer IZBERG N10S + Vertical bottle 200 L
Compressor set LUFT 400 - 3.0kW - 380L/min. 230V + Vertical bottle 200 L
LUFT 400 Compressor Set - 3.0kW - 380L/min. 230V + N10S dehumidifier + 200 L vertical cylinder
Are you a member of the VIES group?

VAT included
€3,672.50
The lowest price of this product in the last 30 days before the discount was €3,622.50 gross
access_time Shipping time: 7 working days after receipt of payment

  • CE
  • Instructions in Polish
  • Service
  • Warranty 12/24 months
  • Delivery
    Free

The most important advantages

  • strong, compact design of a screw compressor from a European manufacturer
  • automation based on modern and quality-tested components to ensure safe and effective work
  • a specially designed cooler ensures optimal operating conditions even when the device is heavily loaded
  • connection of the radiator to the module through good quality hydraulic lines
  • the technology used allows for significant energy savings
  • special air outlet design for more efficient work
  • an efficient and solid pump is installed in the compressor
  • a unique filtration system with three-fold separation to ensure effective operation
  • The compressor uses a reliable and reliable drive transmission system using a belt transmission, which ensures high effective efficiency
  • low noise of the screw compressor thanks to a specially designed soundproof housing (sound-insulating boards)
  • electronic control from the MAM series allows you to set parameters, including: periods between service inspections, power failure alarms, phase direction changes, phase loss, overheating, others, operation in Master/Slave mode, ability to connect up to 16 devices in a pneumatic network, possibility of remote control using a computer and others.

FULL DOCUMENTATION FOR UDT

Give yourself peace of mind during the inspection of the TECHNICAL INSPECTION OFFICE.

By purchasing our compressor, you will receive complete documentation, enabling trouble-free registration of the compressor at the Office of Technical Inspection. Remember that registration with  the Office of Technical Inspection  is necessary.

Documents include:

  • Declaration of conformity,
  • Certificate for the tank with a technical drawing,
  • Safety valve certificate,
  • User manual in Polish.

Remember!

By choosing our offer, you receive a device directly from a Polish manufacturer with many years of experience in selling compressors.

Technical parameters of LUFT 700

Engine power 5.5 kW
Tension 400V/50Hz
Dimensions 810 x 610 x 850 mm
Weight 120 kg
Efficiency 0-6 bar - average 690 L/min
At 6 bar - 650 L/min
At 8 bar - 650 L/min
At 10 bar - 630 L/min
Outlet diameter (G) 1/2"

Technical parameters of N10S

AIR OUTLET AND INLET PIPE DIAMETER (BSP) 1"
WORK IN PRESSURE SYSTEMS UP TO 10 BAR
INLET TEMPERATURE ≤38°C
DEW POINT TEMPERATURE 3°C at operating overpressure
EFFICIENCY 1500 l/min
POWER 0.58 kW
TENSION 230V
DIMENSIONS (L x W x H) 380x600x625mm
WEIGHT 31kg
TYPE AND QUANTITY OF COOLING AGENT  R134a, 400 g

270l tank parameters:

Weight (kg): 97.00
Connections: 4
Connection Size:  1.1/4" , 1/2", 2"
Size:  182.5 x 50cm
Tank capacity (l):  270
Working pressure (bar):  11
Diameter (mm):  Ø 500
Height(mm):  1825

Tank accessories:

  • 1 ½” cork
  • Pressure gauge + reduction to 1/2 |
  • ½" Tee
  • ½" safety valve
  • Input-Output 1/1.4-3/4”
  • ½” water drain valve
  • Quick connector for ½” hose

Manufacturer: Cormak

CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
