Screw Compressor Set CORMAK THEOR 10 – 7.5kW – 750L/min with CORMAK IZBERG N10S Air Dryer and 300L Vertical Air Tank
The set includes the THEOR 10 screw compressor, a vertical 300L compressed-air tank and the CORMAK IZBERG N10S air dryer. The screw compressor from the CORMAK THEOR series features state-of-the-art pneumatic solutions combined with high-quality materials and components. Low operating costs, ease of use, ergonomic and durable construction, and high performance ensure efficient and trouble-free operation.
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€4,100.00
Shipping time:
7 working days after receipt of payment
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Main advantages:
- strong, compact screw-compressor construction from a European manufacturer
- automation based on modern, proven high-quality components ensuring safe and efficient operation
- specially designed cooler providing optimal working conditions even under high load
- cooler connected to the module via high-quality hydraulic hoses
- technology applied allows significant energy savings
- special air outlet design for more efficient operation
- the compressor is equipped with a durable, high-performance pump
- unique filtration system with triple separation ensuring effective operation
- reliable and robust drive-transfer system using a belt transmission, ensuring high effective performance
- low noise level thanks to a specially designed sound-insulated casing (sound-absorbing panels)
- electronic control from the MAM series allowing parameter settings incl.: service interval periods, power-loss alarms, phase-sequence change, phase failure, overheating, others, Master/Slave mode operation, possibility to connect up to 16 devices in a pneumatic network, remote control via computer, and more
Technical parameters THEOR 10
| Motor power | 7.5 kW |
| Voltage | 400V/50Hz |
| Dimensions | 800 x 700 x 930 mm |
| Weight | 185 kg |
| Output | 0–6 bar – average 790 L/min At 6 bar – 750 L/min At 8 bar – 750 L/min At 10 bar – 730 L/min |
| Outlet connection diameter (G) | 1/2" |
Technical parameters N10S
| AIR INLET/OUTLET PIPE DIAMETER (BSP) | 1" |
| OPERATION IN PRESSURISED SYSTEMS | UP TO 10 BAR |
| INLET TEMPERATURE | ≤38°C |
| DEW POINT TEMPERATURE | 3°C at working overpressure |
| CAPACITY | 1500 L/min |
| POWER | 0.58 kW |
| VOLTAGE | 230 V |
| DIMENSIONS (L x W x H) | 380x600x625 mm |
| WEIGHT | 31 kg |
| TYPE AND AMOUNT OF REFRIGERANT | R134a, 400 g |
300L tank parameters:
| Weight (kg) | 110 |
| Connections | 7 |
| Connection sizes | 1/2", 1", 2" |
| Size | 204.6x50 cm |
| Tank capacity (L) | 300 |
| Working pressure (bar) | 11 |
| Wall thickness (mm) | 4 |
| Diameter (mm) | Ø 500 |
| Height (mm) | 2046 |
Tank fittings:
- 1 plug ½”
- Pressure gauge + reducer to 1/2|”
- ½” tee
- Inlet–Outlet 1/1.4–3/4”
- ½” water drain valve
- ½” hose quick coupling
Attention!!!
the safety valve is not included in the tank fittings and must be purchased separately.
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
See online videos
Related categories
Are you interested in this product?
Contact with us
phone: +48 501 944 934
export@cormak.pl
phone: +48 609 939 400
export@cormak.pl
phone: +48 609 939 051
export@cormak.pl
phone: +48 609 939 741
export@cormak.pl
16 other products in the same category:
Screw Compressor Set CORMAK LUFT 700 with IZBERG N10S Air Dryer and 200L Air Tank
The set includes a LUFT 700 screw compressor, a vertical air receiver with fittings for compressed air with a capacity of 200L , and an IZBERG N10S dryer. The CORMAK LUFT series screw compressors combine the latest pneumatic technologies with high-quality materials and components. Low ...More
- Reduced price
- Reduced price
Screw Compressor Set CORMAK LUFT 400 3.0 kW 380 L/min 230 V + 270 L Vertical Air Tank
The set includes a LUFT 400 screw compressor and a vertical air tank with fittings for compressed air, with a capacity of 270 L . The CORMAK brand LUFT series screw compressor combines the most advanced pneumatic solutions with the use of high-quality materials and components. Low operating ...More
- Reduced price
- Reduced price
LUFT 400 Compressor Set - 3.0kW - 380L/min. 230V + N10S Dehumidifier + 270 L Vertical Cylinder
The set includes a LUFT 400 screw compressor , a vertical cylinder with compressed air accessories with a capacity of 270 l and an IZBERG N10S dryer . The screw compressor of the Polish brand CORMAK , the LUFT series, is the most modern solutions used in ...More
- Reduced price
The CORMAK THEOR 30 INVERTER screw compressor set includes a high-performance 22kW compressor, an IZBERG N30S refrigeration air dryer and a 500L vertical air tank. Designed for continuous operation, it ensures stable, efficient and quiet air supply for demanding industrial applications. With a ...More
- Reduced price

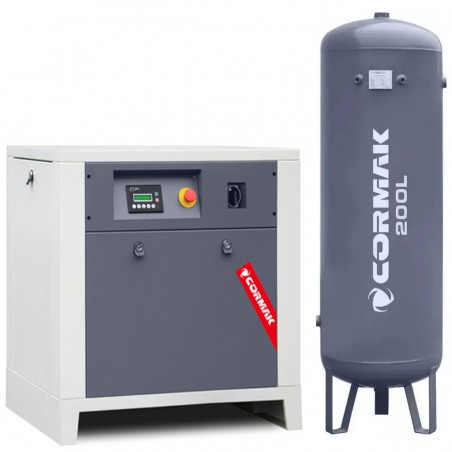

Screw Compressor Set CORMAK LUFT 700 with 200L Air Tank
