Main Advantages
- Strong, compact construction of the screw compressor from a European manufacturer
- Automation based on modern and proven quality components ensuring safe and efficient operation
- Specially designed cooler provides optimum operating conditions even under heavy load
- Connection of the cooler to the module via high-quality hydraulic hoses
- Applied technology allows significant energy savings
- Special outlet design ensures more efficient operation
- The compressor is equipped with a durable and efficient pump
- Unique triple-stage filtration system ensures efficient performance
- Reliable and durable belt-drive transmission system ensuring high effective efficiency
- Low noise level thanks to a specially designed sound-insulated housing (sound-absorbing panels)
- Electronic control from the MAM series enables setting parameters such as: service intervals, power failure alarms, phase sequence errors, phase loss, overheating, other faults, operation in Master/Slave mode, connection of up to 16 devices in a pneumatic network, and remote control via computer

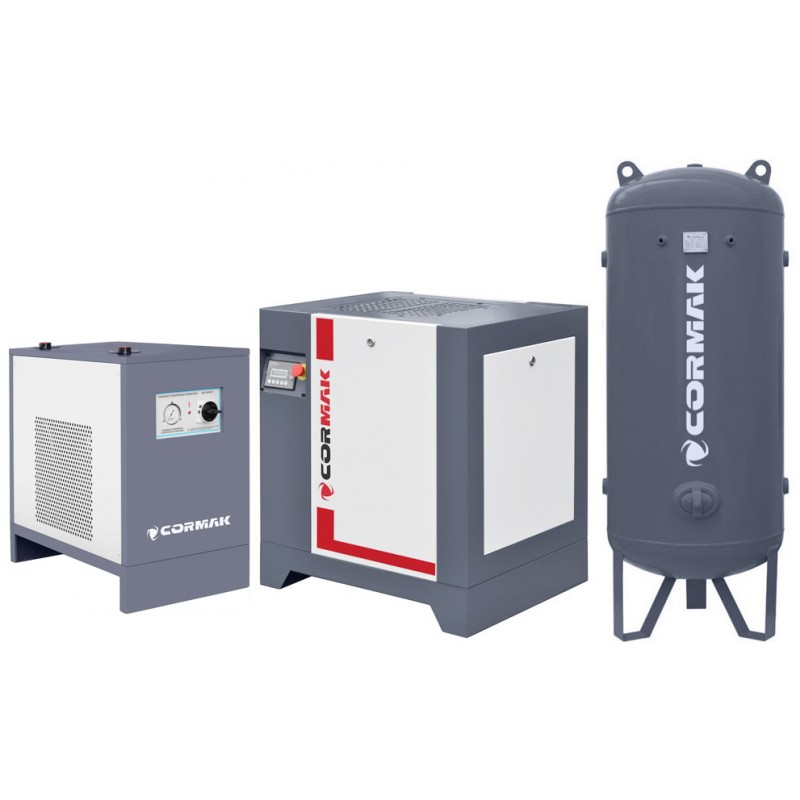

Technical Specifications THEOR 7.5
| Motor power |
5.5kW |
| Voltage |
400V/50Hz |
| Output at 0–6 bar |
690L/min |
| Output at 6 bar |
650L/min |
| Output at 8 bar |
650L/min |
| Output at 10 bar |
630L/min |
| Outlet port diameter (G) |
3/4" |
| Dimensions |
770 × 640 × 860mm |
| Weight |
170kg |
Technical Specifications N10S
| Inlet/outlet air pipe diameter (BSP) |
1" |
| Operation in pressurised systems |
up to 10 bar |
| Inlet air temperature |
≤38°C |
| Dew point temperature |
3°C at operating pressure |
| Capacity |
1,500L/min |
| Power |
0.58kW |
| Voltage |
230V |
| Dimensions (L × W × H) |
380 × 600 × 625mm |
| Weight |
31kg |
| Refrigerant type and quantity |
R134a, 400g |
Technical Specifications of 1000L Air Receiver
| Weight (kg) |
230 |
| Connections |
8 |
| Connection size |
1/2", 2" |
| Dimensions |
222.7 × 85cm |
| Tank capacity (L) |
1000 |
| Working pressure (bar) |
11 |
| Diameter (mm) |
Ø850 |
| Height (mm) |
2250 |
Fittings Set Includes:
- side top 1½" → 1" → ¾"
- side bottom 1½" → 1" → ¾"
- top plug ¾"
- bottom valve ½" + reduction ¾" → ½"
- nipple ½"
- tee ½"
- pressure gauge + reduction ½" → ¼"
Attention!
The safety valve is not included in the tank fittings and must be purchased separately.
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
