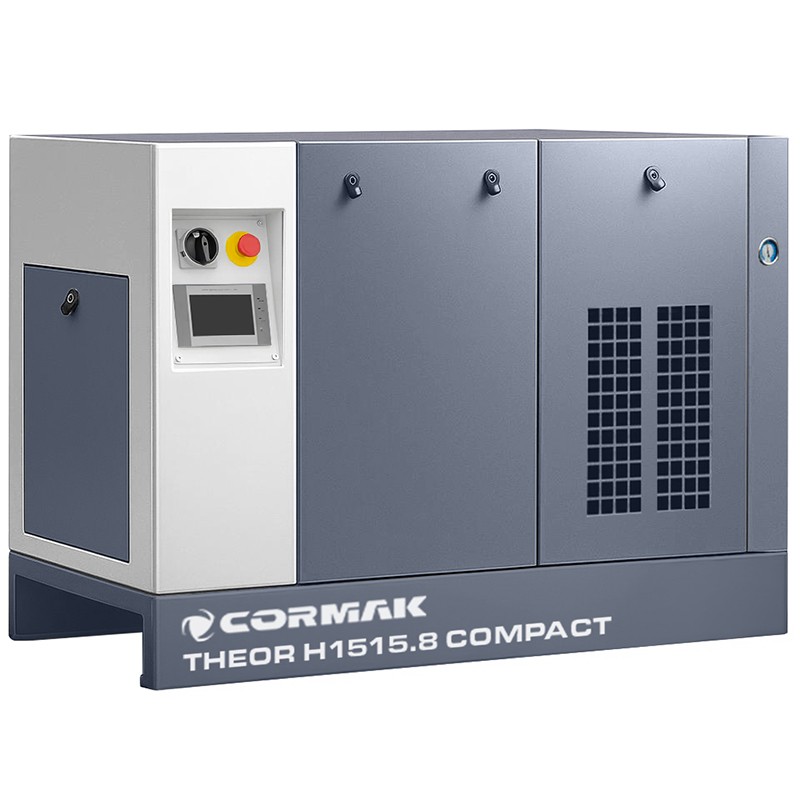

High-pressure compressor CORMAK THEOR H1515.8 Compact – ideal for Fiber laser cutters
Are you looking for a professional and compact solution to power your Fiber laser cutter? The CORMAK THEOR H1515.8 Compact screw compressor is an excellent choice, designed for precision laser cutting. With a power output of 15 kW and actual capacity of up to 1,700 L/min, it provides stable and reliable compressed air supply – essential for efficient operation of laser systems.
The THEOR H1515.8 Compact screw compressor reaches a maximum working pressure of 15.8bar, enabling effective cutting of various materials. The intuitive MAM series electronic panel gives full control over machine operation, allowing easy monitoring and adjustment of settings.
✅ Pressure: up to 15.8bar | ✅ Capacity: up to 1,700 L/min | ✅ Power: 15 kW
CORMAK screw compressors – for those who expect the highest quality and performance
Do you need solutions that exceed market standards? CORMAK compressors are synonymous with innovation and reliability, created for demanding applications such as precision laser cutting.
Innovative design
Advanced engineering, European precision workmanship, and a modern, robust housing ensure long service life and reliability in all conditions.
Integrated refrigerated dryer
The COMPACT version with integrated dryer saves space and provides a complete solution in one machine.
Quiet operation and comfort
Exceptionally low noise levels thanks to sound and vibration reduction systems ensure comfortable working conditions.
Intelligent control
The MAM electronic panel offers advanced parameter monitoring, service planning and diagnostics with remote access capability.
CORMAK – technology driving success in laser cutting
Main advantages of the 15 kW induction motor
- Stable pressure: guarantees cutting quality and operating reliability
- Longer service life: lower mechanical loads increase component durability
- Quieter operation: automatic speed control reduces noise
- Flexibility: the machine adapts to variable demand
- Advanced control: full diagnostics, monitoring and remote management
Screw module – the heart of the compressor
CORMAK screw modules provide high efficiency, durability and operating precision – essential in the laser industry.
- Energy efficiency: low energy consumption at maximum performance
- Stable pressure: reliable operation of the entire pneumatic system
- Durability: resistant to intensive operation
Integrated refrigerated dryer – air quality at the highest level
The two-stage drying system ensures effective moisture removal and protection of the pneumatic installation. The variable-speed fan automatically adjusts cooling performance to working conditions, helping to save energy.
In addition, the dryer is also equipped with a dual filtration system: a pre-filter with an accuracy of 3.0 µm, which removes larger solid contaminants, and a precision filter with an accuracy of 0.1 µm, which captures fine oil particles (aerosols) and other contaminants, providing air of the highest cleanliness.
CORMAK control panel – full control at your fingertips
- Monitoring: pressure, temperature, machine status
- Settings adjustment: quick parameter adaptation
- Notifications: faults, servicing, irregularities
Technical parameters
| Parameter | Value |
|---|
| Motor power |
15 kW |
| Voltage |
400 V / 50 Hz |
| Capacity 0–6bar |
1,700 L/min |
| Capacity at 6bar |
1,650 L/min |
| Capacity at 8bar |
1,500 L/min |
| Capacity at 10bar |
1,500 L/min |
| Capacity at 12bar |
1,350 L/min |
| Capacity at 14bar |
1,350 L/min |
| Outlet |
3/4" |
| Dimensions |
1550 × 750 × 1200 mm |
| Weight |
500 kg |
