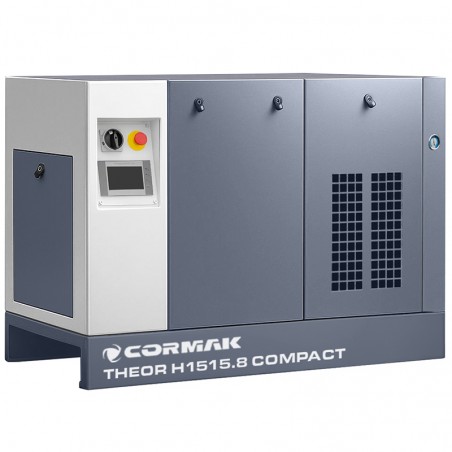

The set includes the THEOR H1515.8 COMPACT screw compressor with a built-in dryer and a vertical 1000L compressed air receiver. The CORMAK THEOR series screw compressors combine the latest pneumatic technology with high-quality materials and components. Low operating costs, user-friendly operation, ergonomic and robust construction, and high performance ensure efficient and trouble-free operation.
Looking for a professional and compact solution to power your FIBER laser cutter? The CORMAK THEOR H1515.8 Compact screw compressor is the perfect choice, designed for precise laser cutting. With 15 kW power and an actual output of up to 1,700 l/min, it provides stable and reliable compressed air delivery – essential for efficient laser system operation.
The THEOR H1515.8 Compact screw compressor reaches a maximum working pressure of 14 bar, enabling effective cutting of various materials. The intuitive MAM electronic control panel allows full control of the machine’s operation, enabling easy monitoring and adjustment of parameters.
✅ Pressure: up to 14 bar | ✅ Output: up to 1,700 l/min | ✅ Power: 15 kW
Need solutions that exceed market standards? CORMAK compressors are synonymous with innovation and reliability, created for demanding applications such as precision laser cutting.
Advanced engineering, European precision workmanship, and a modern, durable housing ensure longevity and reliability in all conditions.
The COMPACT version with an integrated dryer offers space savings and a complete solution in one unit.
Exceptionally low noise level due to vibration and sound reduction systems ensures comfortable working conditions.
The MAM electronic panel provides advanced parameter monitoring, service scheduling, and diagnostics with remote access capability.
CORMAK screw modules provide high performance, durability, and precision – key features in the laser industry.
The two-stage drying system effectively removes moisture and protects the pneumatic installation. The variable-speed fan automatically adjusts cooling performance to working conditions, providing energy savings.
Additionally, the dryer is equipped with a dual filtration system: a pre-filter with 3.0 µm accuracy that removes larger solid impurities and a fine filter with 0.1 µm accuracy that captures small oil particles (aerosols) and other contaminants, ensuring top air purity.
When purchasing our compressor, you receive complete documentation that allows easy registration and certification. Please note that CE registration is mandatory.
The documentation includes:
Note!
By choosing our offer, you receive a product directly from a manufacturer with many years of experience in the production of compressors.
| Compressor | |
| Motor power | 15 kW |
| Dimensions | 1,550×750×1,200 mm |
| Weight | 500 kg |
| Outlet thread | G 3/4" |
| General parameters | |
| Output at 0–6 bar | 1,700 L/min |
| Output at 6 bar | 1,650 L/min |
| Output at 8 bar | 1,500 L/min |
| Output at 10 bar | 1,500 L/min |
| Output at 12 bar | 1,350 L/min |
| Output at 14 bar | 1,350 L/min |
| Weight (kg) | 230.00 |
|---|---|
| Connections | 8 |
| Connection size | 1/2", 2" |
| Size | 222.7 × 85 cm |
| Tank capacity (L) | 1000 |
| Working pressure (bar) | 25 |
| Diameter (mm) | Ø 850 |
| Height (mm) | 2250 |
Attention!!!
The air receiver is not equipped with a safety valve, which must be purchased separately.
