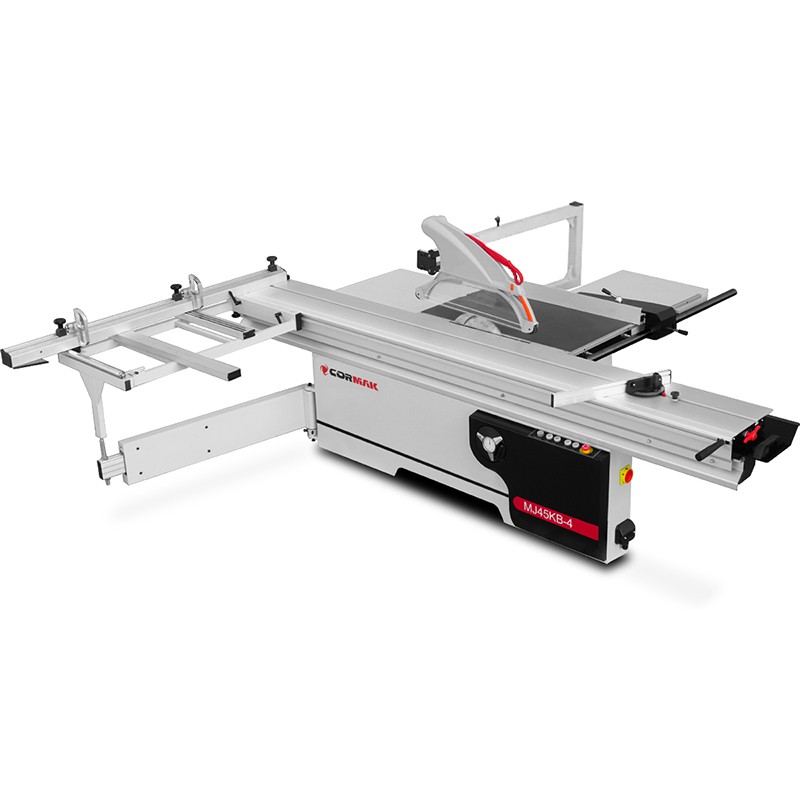

Sliding Panelsaw CORMAK MJ45-KB4 is a professional panelsaw with a scoring unit, designed for precise cutting of MDF, HDF, PVC, ABS and solid wood panels up to 3200×2800 mm. The durable construction, precise adjustment of working parameters and integrated scoring blade make this sliding panelsaw ideal for medium and large carpentry workshops.
Sliding Panelsaw CORMAK MJ45-KB4 is a powerful industrial woodworking machine designed for precision cutting of furniture boards, MDF, plywood and other wood-based materials. Equipped with a scoring unit and a large 3200 mm sliding table, it ensures high-quality, chip-free edges. This reliable solution is dedicated to furniture manufacturers, carpentry workshops and production facilities requiring high efficiency and cutting repeatability.
The CORMAK MJ45-KB4 panelsaw is designed with durability and precision in mind. Its steel bed and reinforced frame increase rigidity, ensuring stable operation even under heavy-duty conditions. Linear guide systems and ball bearings guarantee smooth and accurate movement of the table.
The scoring unit with a Ø125 mm blade rotating at 8000 rpm precisely pre-cuts the underside of the board, preventing edge chipping. The main Ø350 mm blade delivers excellent cut quality even at a maximum depth of 105 mm.
Main spindle speeds of 4000/6000 rpm allow selection of the optimal cutting speed depending on material type. Blade tilt adjustment within 0–45° enables angled cuts, while manual scoring unit adjustment ensures quick setup without interrupting operation.
The machine meets the expectations of facilities requiring repeatability, dimensional accuracy and minimal material waste.
The CORMAK MJ45-KB4 model is used in:
Choose professional panel cutting and rely on the quality of the CORMAK MJ45-KB4 machine. Contact our technical consultant or place an order online to optimise your workshop cutting process.
| Technical specifications | |
| Table dimensions | 990 x 575 mm |
| Sliding table length | 3200 mm |
| Cutting width at fence | 1250 mm |
| Crosscut capacity with crosscut fence | 3100 mm |
| Saw blade tilt | 0°–45° |
| Main saw blade diameter | Ø350 mm |
| Main blade bore diameter | Ø30 mm |
| Blade height | 0–105 mm |
| Blade height at 45° | 0–80 mm |
| Main spindle speed | 4000 / 6000 rpm |
| Scoring blade diameter | Ø125 mm |
| Scoring blade bore | Ø20 mm |
| Scoring blade speed | 8000 rpm |
| Main motor power S1/S6 | 5.5 kW / 9 HP |
| Scoring motor power S1/S6 | 0.75 kW / 1.2 HP |
| Dust outlet diameter (under table) | 100 mm |
| Dust outlet diameter (blade guard) | 80 mm |
| Machine weight | 680 kg |
Note: the machine is sold without saw blades.
