Key advantages:
- INVERTER - The system of stepless regulation of compressor speed is the most economical method of regulation. The most important advantage - compared to compressors with traditional control, lower electricity consumption and maintaining a constant set pressure
- strong, compact design of a screw compressor from a European manufacturer
- automation based on modern and quality-tested components to ensure safe and effective work
- a specially designed cooler ensures optimal operating conditions even when the device is heavily loaded
- connection of the radiator to the module through good quality hydraulic lines
- the technology used allows for significant energy savings
- special air outlet design for more efficient work
- an efficient and solid pump is installed in the compressor
- a unique filtration system with three-fold separation to ensure effective operation
- the compressor uses a reliable and reliable solution, which is a direct drive transmission system between the engine and the screw mechanism (via the so-called dog clutch), which ensures: high effective efficiency; more effective vibration reduction; eliminating the need for adjustments that occur in the case of traditional belt transmission
- low noise of the screw compressor thanks to a specially designed soundproof housing (sound-insulating boards)

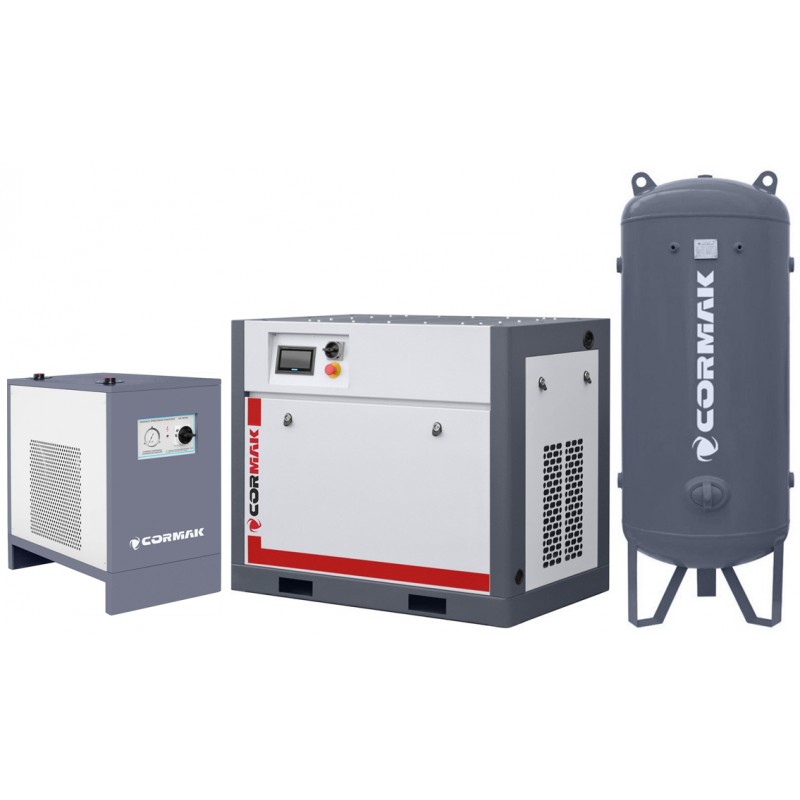

THEOR 15 INVERTER compressor parameters
| Engine power |
11 kW |
| Voltage |
400V/50Hz |
| Efficiency |
At 6 bar - 1380 L/min
At 8 bar - 1150 L/min
At 10 bar - 1030 L/min
|
| Dimensions |
1180 x 750 x 1000 mm |
| Weight |
325 kg |
Parameters of the N30S dehumidifier
| AIR OUTLET AND INLET PIPE DIAMETER (BSP) |
1 1/2" |
| WORK IN PRESSURE SYSTEMS |
DO 10 BAR |
| INLET TEMPERATURE |
≤38°C |
| DEWPOINT TEMPERATURE |
3°C at working overpressure |
| EFFICIENCY |
3800 l/min |
| POWER |
1,37 kW |
| POWER SUPPLY |
230 V |
| DIMENSIONS |
850 x 480 x 480 mm |
| WEIGHT |
95 kg |
| TYPE AND QUANTITY OF COOLING AGENT |
R410a, 900 g |
1000l tank parameters:
| Weight (kg): |
230 |
| Connections: |
8 |
| Connection size: |
1/2", 2" |
| Size: |
222,7 x 85 cm |
| Tank capacity (l): |
1000 |
| Working pressure (bar): |
11 |
| Diameter (mm): |
Ø 850 |
| Height (mm): |
2250 |
The accessories set includes:
- side from top 1 1/2" -> 1" -> 3/4"
- side bottom 1 1/2" -> 1" -> 3/4"
- cork top 3/4"
- valve 1/2" down + reduction 3/4" -> 1/2"
- 1/2" pneumatic connector
- glue
- 1/2" nipple
- tee 1/2"
- safety valve 1/2"
- pressure gauge +reduction 1/2"-> 1/4"
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
