Key benefits:

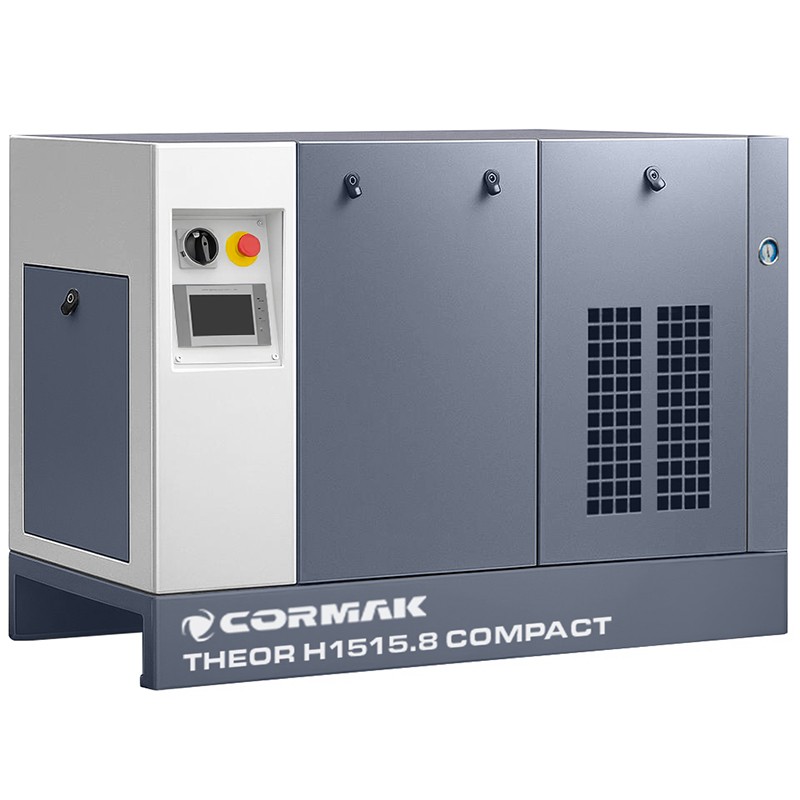

- strong, compact design of a screw compressor from a European manufacturer
- automation based on modern and quality-tested components to ensure safe and effective work
- a specially designed cooler ensures optimal working conditions even when the device is heavily loaded
- connection of the radiator with the module through good quality hydraulic hoses
- the technology used allows for significant energy savings
- special air outlet design for more efficient work
- a powerful and robust pump is installed in the compressor
- unique filtration system with triple separation for effective work
- the compressor uses a reliable and reliable solution, which is a direct drive transmission system between the engine and the screw mechanism (via the so-called claw clutch), which ensures: high effective efficiency; more effective leveling of vibrations
- low noise of the screw compressor thanks to a specially designed soundproof housing (sound insulation boards)
- electronic control from the MAM series allows you to set parameters, including: intervals between service inspections, power failure alarms, phase direction changes, phase loss, overheating.
Possibility to buy additional cylinders.
Technical parameters:
| Compressor |
| Engine power |
15kW |
| Dimensions |
1550x750x1200mm |
| Weight |
500kg |
| Exhaust thread |
G 3/4" |
| General parameters |
| Capacity at 0-6 bar |
1700L/min |
| Capacity at 6 bar |
1650L/min |
| Capacity at 8 bar |
1500L/min |
| Capacity at 10 bar |
1500L/min |
| Capacity at 12 bar |
1350L/min |
| Capacity at 14 bar |
1350L/min |
| Capacity at 16 bar |
|
| Capacity at 18 bar |
|
| Capacity at 20 bar |
|
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
