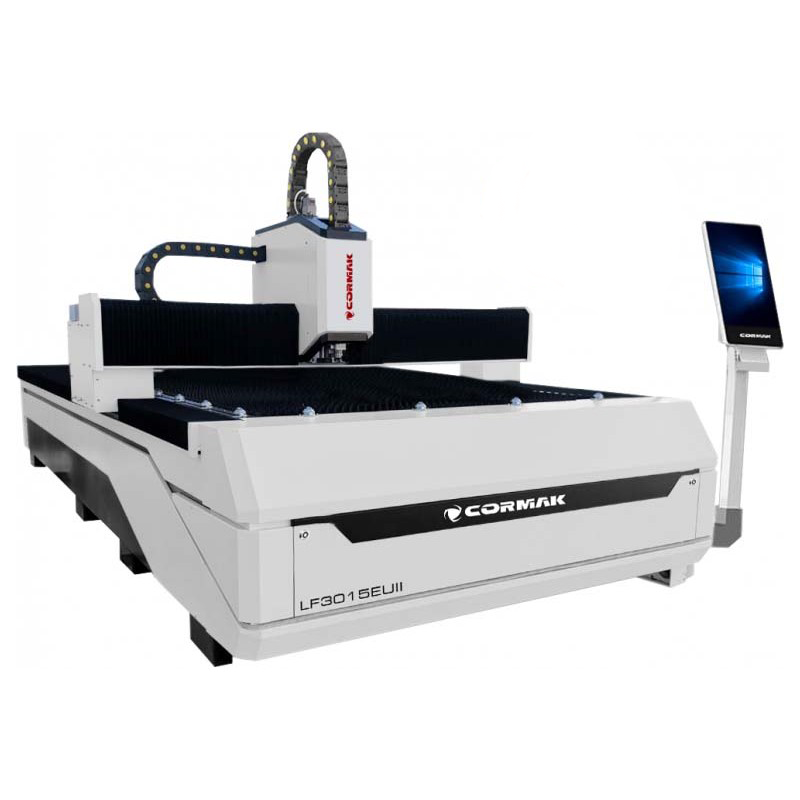

FIBER LF3015EU-4000W fiber laser IPG Germany

Fiber optic laser cutters are modern devices that are distinguished by numerous advantages. They are not only an excellent and much more profitable alternative to CO2 technology, but also have a lot of advantages in themselves that allow you to expand production (up to 70%) and improve its quality. FIBER technology allows you to cut sheets and other materials of various thicknesses, from very thin to very thick. The wavelength in the FIBER laser is 1.064 micrometers. These properties result in an intensity that is 100 times greater than that of CO2 devices of similar power.

THE BIGGEST ADVANTAGES OF A LASER ARE

Sliding gate made of seasoned aviation aluminum

The construction of the sliding gate is made of seasoned aviation aluminum formed with a force of 4300 tons, achieving incredible stiffness. Aviation aluminum has many advantages: high stiffness (greater than cast iron), low weight, resistance to corrosion and oxidation, and good machinability.

• Long life. Collimator lenses and focusing lenses have a water-cooling heatsink, which lowers the temperature of the cutting head to extend the life of the cutting head.
• More adjustment range. Adjustment range -10mm~+10mm, precision 0.01mm, suitable for various types of 0~20mm tiles.
• Auto Focus (above 1500W) - Autofocus - The software automatically adjusts the focusing lens when cutting sheet metal of different thicknesses. The autofocus speed is ten times faster than the manual focus speed.








Design screen

The screen has a vertical display with fast response time, higher contrast, wider view, low power consumption and high resolution. In addition, it has high
brightness and lower reflectivity, as well as greater durability.

Welded bed made of rectangular profiles

The construction of the bed has an internal structure resembling a honeycomb, made of many welded rectangular tubes. Stiffeners are placed inside the tubes, which increase the strength of the bed, and also increase the rigidity and stability of the guide rail to effectively prevent its deformation. High strength, stability, tensile strength, ensuring 20 years of use without distortion.

Technical parameters

Cutting parameters

Actual parameters may vary depending on technical conditions and materials used.

1. RAYTOOLS head
2. linear guides: HIWIN
3. gears and racks: YYC
4. YASKAWA servomotors
5. MOTOREDUCER gearbox
6. SMC pneumatic components
7. electronic components such as contactors, relays, sensors from: Schneider, OMRON, IDEM
8. Program CypCut
9. Chiller(water cooler): S&A
10. TNS voltage stabilizer
