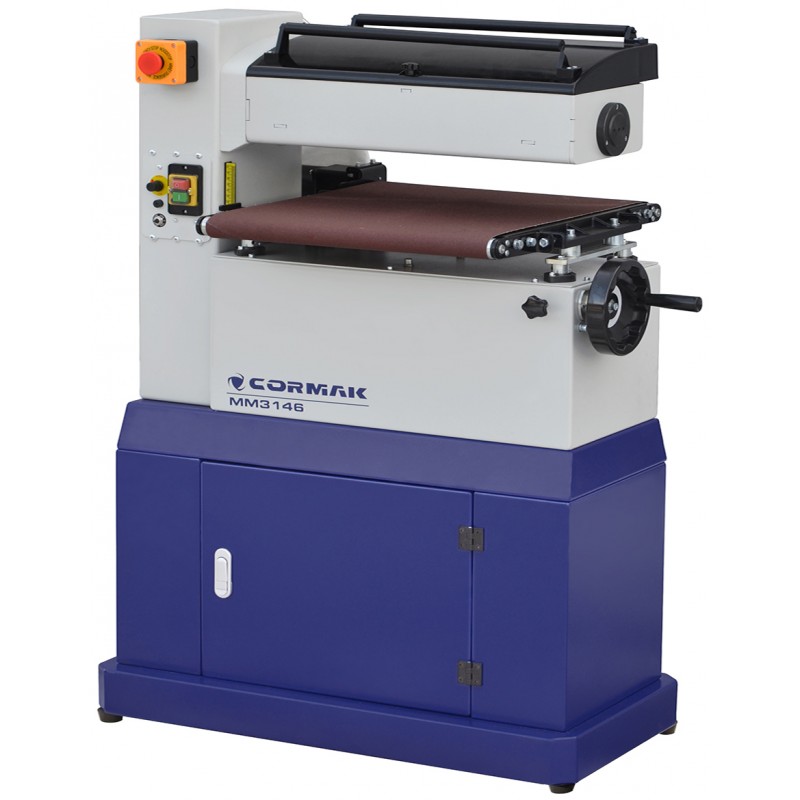

Drum Belt Sander CORMAK MM3146 230V – industrial sander for wood and metal

The CORMAK MM3146 230V drum sander is an efficient single-unit machine designed for sanding flat surfaces of solid wood, furniture panels, metal components and plastics. With its heavy-duty construction, precise feed system, and large-diameter sanding drum, the machine ensures smooth surface finishing at high productivity. It is an ideal solution for production plants, woodworking shops, and companies specialising in renovation and surface finishing.

Main machine features

• Reinforced construction – a rigid, heavy frame minimises vibrations and ensures stability even during intensive operation.
• Precise sanding thickness adjustment – mechanical height gauge allows accurate setting of the desired sanding dimension.
• Dynamically balanced sanding drum – made of drawn aluminium, ensures uniform contact with the workpiece and efficient heat dissipation.
• Versatile use – ideal for removing old paint, varnish, rust, as well as for smoothing and deburring.
• Metal drive coupling – provides durable and reliable torque transfer from motor to drum.
• Working width up to 920 mm – enables sanding of wide panels in two passes.

Construction and technology

The CORMAK MM3146 model stands out with its solid industrial design. The main motor (1.5/2.2 kW S1/S6) combined with the reinforced feed motor (60 W) provides sufficient power reserve for continuous and demanding use. The variable feed speed system (0–4 m/min) allows the operator to adjust the pace to the material type and desired surface quality.

The sanding belt 2100 × 75 mm drives a high-speed drum (2800 rpm), enabling fast and effective material removal. The sanding drum is self-cooling during operation, preventing surface overheating. The side guide has been reinforced to improve alignment and maintain stable sanding across the full working width.

Precision and performance

The CORMAK MM3146 drum belt sander guarantees consistent results thanks to its mechanical height adjustment system with a precision scale. The minimum workpiece height is 3.5 mm and the maximum 100 mm, allowing the machining of thin boards as well as thick structural components. The working width of 460 mm in one pass (or 920 mm in double feed) ensures high productivity even for large batch operations.

Applications

The CORMAK MM3146 through-feed sander is suitable for:

• woodworking and furniture production plants,
• wood restoration workshops,
• metal workshops for deburring operations,
• plastic component manufacturing,
• production lines for surface finishing and preparation.

Standard equipment

• Precision aluminium sanding drum
• Metal drive coupling
• Worktable 460 × 465 mm
• Feed belt 1120 × 450 mm
• Thickness gauge with fine scale
• Reinforced side guide
• Dust extraction port Ø62 mm

Optional equipment

• Dust extraction system with chip separator
• Set of sanding belts with various grits
• Feed roller table
• Mobile base with brake

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.

Choose performance and professional surface finishing. The CORMAK MM3146 230V drum sander is a reliable partner for both serial and single-unit production — choose quality that drives efficiency.
