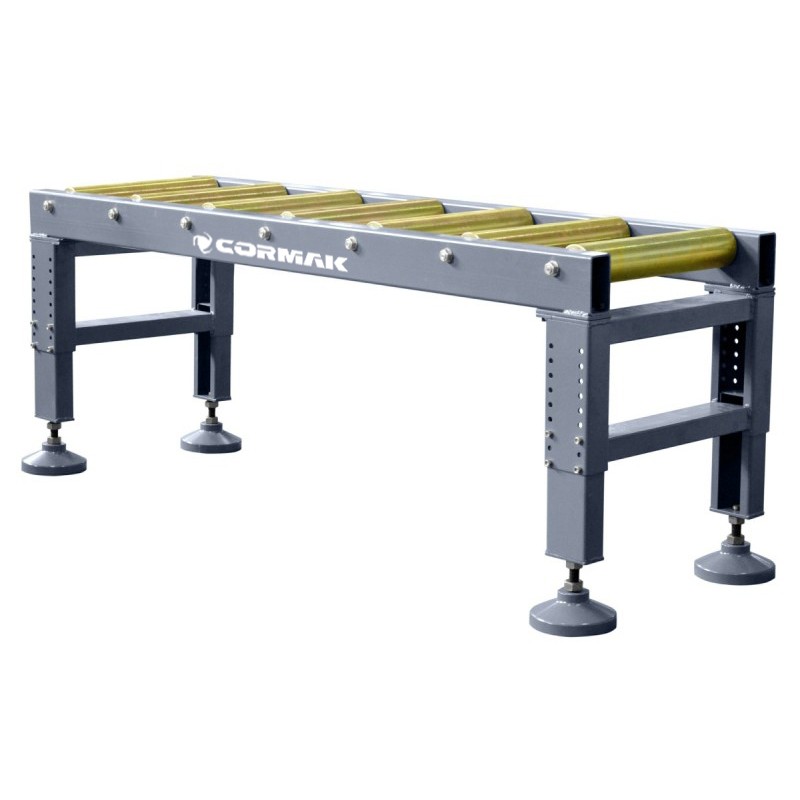

Roller Conveyor 1.5m – Heavy-Duty Conveyor for Transporting Large and Heavy Components

Roller conveyor 1.5m is a professional roller feeder designed for heavy loads and stable guidance of workpieces during machining. Built from high-strength steel components, it is ideal for industrial facilities where reliability, precision and high load capacity up to 2,000kg are required.

Main advantages

• Working length 1,500mm – compact dimensions while maintaining high load capacity
• 7 steel bearing rollers – ensures smooth, uninterrupted rolling
• Roller diameter 90mm – large contact surface provides stable support for workpieces
• Height adjustment 545–855mm – universal adaptation to main machines
• Load capacity 2,000kg – robust structure allows handling of very heavy components
• Stable frame made of cast-iron and steel profiles – resistant to torsion and deformation

Construction and technology

The structure is based on a massive steel body equipped with bearing-mounted rollers in a precisely welded frame. This solution ensures long life of the rolling elements and excellent guidance of irregularly shaped parts. The height adjustment system allows precise matching to workstations and machine tools. The entire unit is finished with powder coating, resistant to corrosion and industrial conditions.

Precision and efficiency

The arrangement of seven rollers over a 1.5m length provides optimal load distribution and smooth rolling during feeding and receiving operations. The high rigidity of the construction enables safe handling of heavy materials without the risk of displacement or deformation. The device minimises vibration and friction forces, ensuring accuracy and safety during cutting or machining processes.

Applications

Roller conveyor 1.5m is suitable for:

• feeding workpieces to band and circular saws,
• servicing milling, turning and drilling stations,
• transporting pipes, profiles and structural elements,
• working with metal cutting and processing lines.

Standard equipment

• 7 steel bearing rollers
• Adjustable working height
• Heavy-duty steel frame
• Levelling support feet

Technical parameters

Choose the robust 1.5m roller conveyor from CORMAK – the perfect solution for safe and precise handling of heavy components in any industrial environment.
