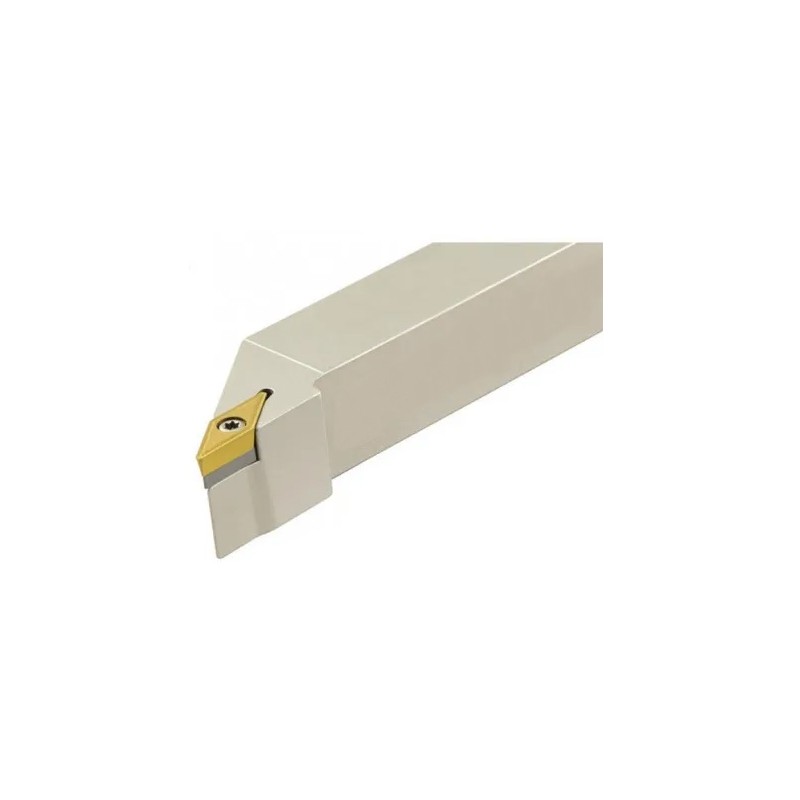

Turning Tool CORMAK SVJBL 2525 M16
Indexable turning tool SVJBL 25x25-16 from the Turkish company Akko for a VBMT 1604 multi-edge insert. Insert clamping system – “S”. Most tools for external turning, positive or negative boring tools, tool geometry. Single-sided indexable inserts mounted on the conical-arc hole surface using a countersunk screw.
The cutting insert shown in the photo is not included with the turning tool and must be purchased separately.
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€76.88
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
20,00 PLN
Product characteristics:
The “S” system is the most widely used clamping system for indexable inserts. It is characterised by simplicity, high reliability, very good repeatability of cutting-edge position and the ability to clamp small inserts.
The main application area for tools with inserts clamped in the “S” system is finishing external surfaces and hole surfaces (especially small-diameter holes), although they are also used for roughing.
Technical data:
| Shank height H | 25 mm |
| Shank height B | 25 mm |
| Overall length L | 150 mm |
| Tool width with insert f | 32 mm |
| Compatible insert | VBMT160404 insert |
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
