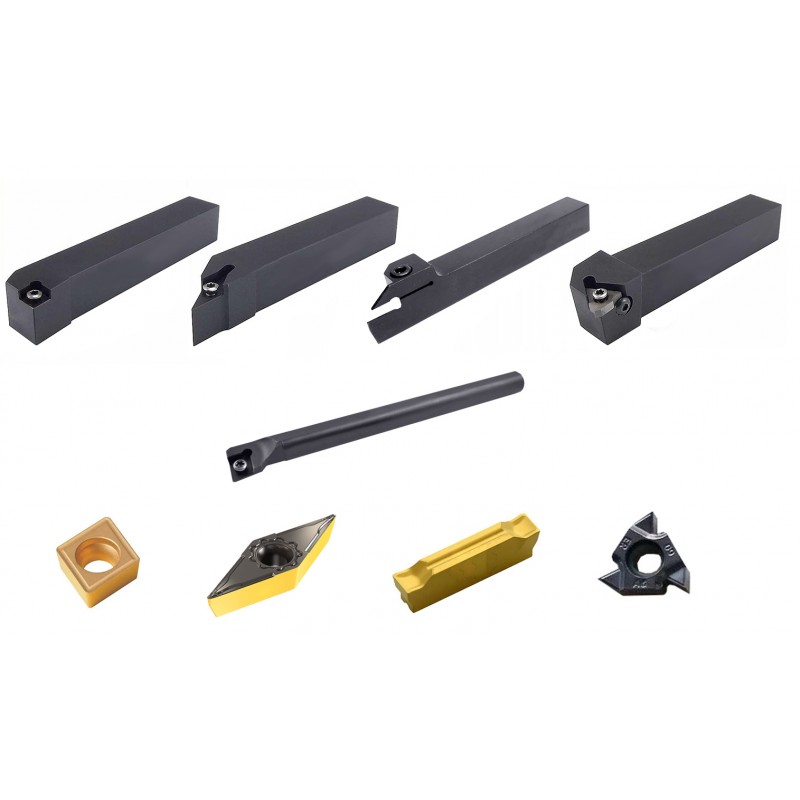

Starter Lathe Tool Set 16x16
The 16x16 Starter Tool Set includes indexable turning tools with replaceable carbide inserts. The set contains tools and inserts for roughing and finishing operations, grooving and parting, external threading, and boring.
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€401.29
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Set includes:
- Indexable turning tool: SCLCR 1616 H09 SI
- Indexable turning tool: SVJCR 1616 H16 SI
- Indexable turning tool: GDAR 1616 K200 SI
- Indexable threading tool: SER 1616 H16 SI
- Indexable boring bar: S16P-SCLCR-09
- Carbide insert: CCMT 09T308 MG CX 2555
- Carbide insert: VCMT 110304
- Insert: MGMN 200 SI
- Carbide insert: ERM 16 AG60 PC 5300
Indexable Turning Tool: SCLCR 1616 H09 SI
 |
H | B | L | F | E | λs | γo |
| 16 | 16 | 100 | 20 | 14 | 0° | 0° |
Indexable Turning Tool: SVJCR 1616 H16 SI
 |
H | B | L | F | E | λs | γo |
| 16 | 16 | 100 | 20 | 27 | 0° | 0° |
Indexable Grooving Tool: GDAR 1616 K200 SI
 |
H | B | L | F | G | G1 |
| 16 | 16 | 125 | 16.4 | 18 | 14 |
Indexable Threading Tool: SER 1616 H16 SI
 |
H | B | L | F | E |
| 16 | 16 | 100 | 20 | 23 |
Indexable Boring Bar: S16P-SCLCR-09
 |
d | d1 | h | l | L | f |
| 16 | 16 | 14.8 | 35 | 170 | 11 |
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
