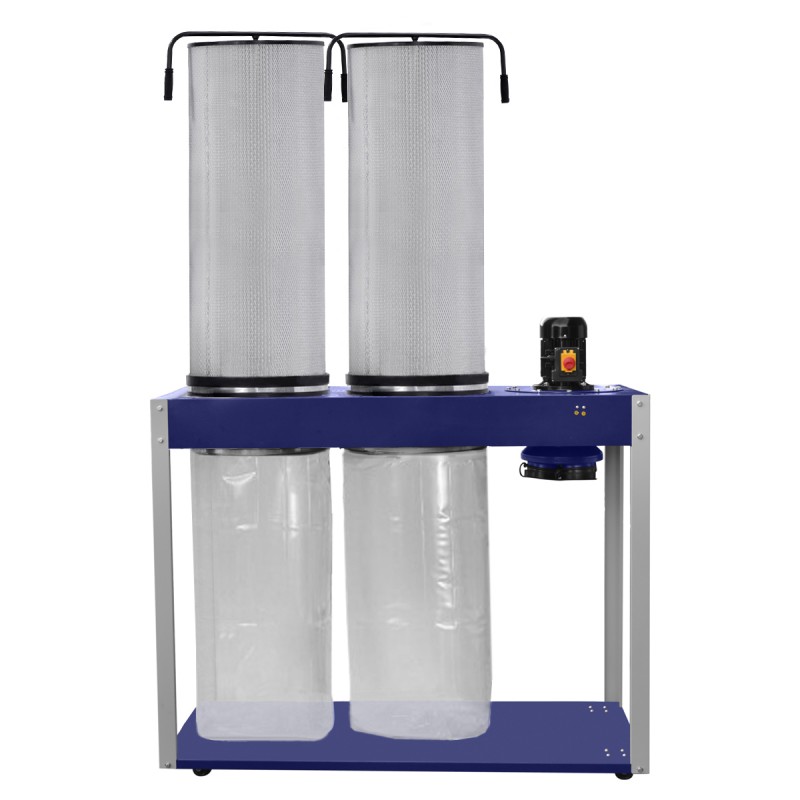

Wood Dust and Chip Extractor CORMAK FM500 with Dust Filters

CORMAK FM500 Wood Dust Extractor with Dust Filters – maximum efficiency for professional woodworking facilities

CORMAK FM500 Wood Dust Extractor with Dust Filters is a high-efficiency unit designed for effective removal of chips, sawdust and fine dust generated during wood processing. Thanks to the use of third-stage dust filters with filtration efficiency up to 2 microns, the machine ensures clean air quality at the workplace. It meets the demands of professional users, offering high suction power, durable construction and dependable performance in continuous operation.

Main features

• Very high capacity – 5,000 m³/h, ideal for connection to multiple woodworking machines simultaneously.
• Advanced dust filtration system (third stage) – captures particles as small as 2 microns.
• Balanced metal impeller – quiet, vibration-free operation.
• Three-phase 2.8 kW motor – provides constant vacuum pressure and efficiency.
• Up to four machine connections – optimises production processes.
• Air velocity up to 31 m/s – effective dust removal without residue accumulation.
• Large 480 L waste bag capacity – long working intervals without emptying.
• Mobile steel frame – easy relocation within the workshop or production hall.

Design and technology

The CORMAK FM500 has been designed for demanding industrial environments. The suction system includes a metal impeller operating at 2,950 rpm, ensuring high negative pressure and consistent suction force. The structure is built on a solid steel frame with support brackets for the bags, providing stability and resistance to deformation. With four extraction ports (1 × 200 mm / 4 × 100 mm), the unit can serve multiple woodworking machines simultaneously.

Precision and performance

The FM500 woodworking extractor stands out with its strong suction power and advanced dust filtration system. It minimises airborne dust, extends the lifespan of woodworking machines and improves workplace air quality. Its 5,000 m³/h performance and up to 2,500 Pa pressure ensure full efficiency even during long-term operation with multiple machines.

Applications

The FM500 is an ideal solution for:

• Woodworking and furniture factories,
• Workshops equipped with planers, saws, sanders, routers and thicknessers,
• Production lines requiring simultaneous extraction from multiple stations,
• Facilities where control of fine dust and airborne particles is essential.

Standard equipment

• Mobile wheeled base,
• Dust filters – third-stage filtration (up to 2 microns),
• Waste collection bags, total volume 480 L,
• Manifold with 4 extraction ports (1 × 200 mm, 4 × 100 mm).

Optional equipment*

• Extraction hoses Ø 100 mm,
• Galvanised clamps for hose mounting,

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

Technical data

Choose reliability, cleanliness and performance – select the CORMAK FM500 Wood Dust Extractor with Dust Filters and provide your workshop with the best air quality and working conditions.
