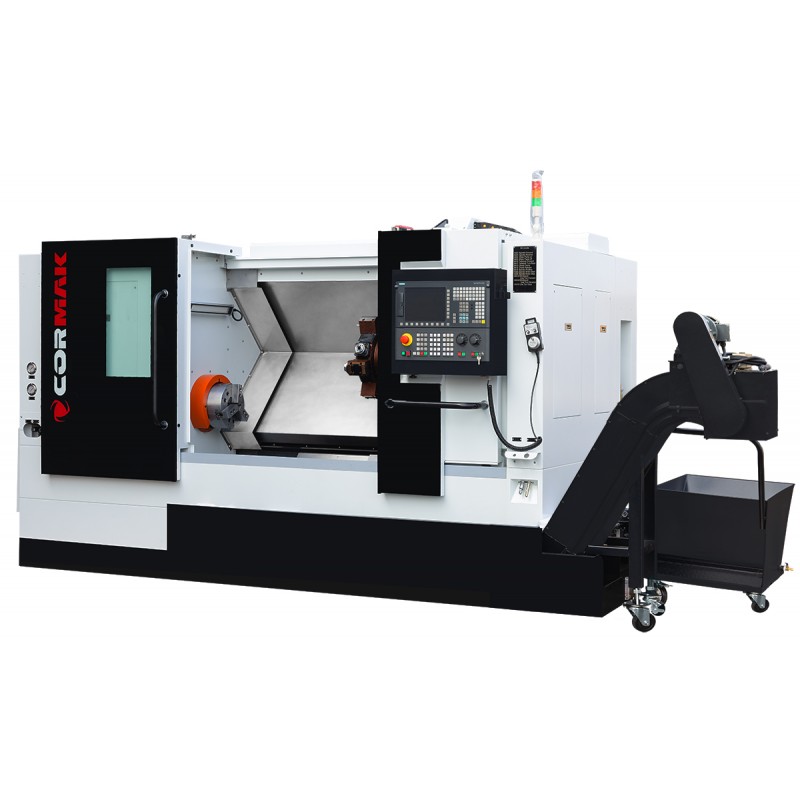

CNC Lathe CORMAK CK7160 LT12x1000 Driven Tools SIEMENS SINUMERIK

Industrial slant-bed lathe ideal for small and medium-scale production. Equipped for turning external, internal, and spherical surfaces, as well as threading. Fixed cycle control simplifies programming, while the additional driven tool allows off-axis drilling and milling operations.

Variant

CNC Lathe CORMAK CK7150 LT12x750 with Driven Tools SIEMENS SINUMERIK

CNC Lathe CORMAK CK7150LT12x1000 Driven Tools SIEMENS SINUMERIK

CNC Lathe CORMAK CK71560 LT 12x1500 Driven Tools SIEMENS SINUMERIK

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

To use the VIES group, you must have a VAT number.

Yes - show prices with VAT 0%

VAT included

€85,485.00

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

CNC Lathe CORMAK CK7160X1000 LT12 Driven Tools – precision and performance in metal machining

The CNC Lathe CORMAK CK7160X1000 LT12 Driven Tools is an advanced slant-bed CNC lathe designed for precision machining of metal parts in industrial environments. Equipped with driven tools, a 12-position turret, and Siemens Sinumerik 808D control, it ensures high performance, reliability, and versatility.

Main advantages of the CNC Lathe CORMAK CK7160X1000 LT12 Driven Tools

The CNC Lathe CORMAK CK7160X1000 LT12 Driven Tools combines modern technology with a robust slant-bed design, offering users significant advantages in production processes. Its key benefits include:

Versatile machining: Equipped with driven tools and a 12-position turret, allowing turning, milling, and drilling in a single cycle, improving efficiency and reducing machining time.
High precision: Positioning accuracy of the X/Z axes of 0.001 mm guarantees excellent surface quality, ideal for complex geometries in precision engineering industries.
Slant-bed construction: Provides high rigidity, efficient chip evacuation, and extended service life, especially when machining hard materials.
Advanced spindle: Spindle bore 52 mm and speed up to 3000 rpm, driven by an 11 kW motor, enabling efficient machining of materials such as steel, aluminium, and engineering plastics.
Compact working area: Maximum workpiece length of 1000 mm and turning diameter over bed of 600 mm allow precise machining of medium-sized components.
Intuitive operation: Siemens Sinumerik 808D control system with USB port and simple interface simplifies programming and data transfer, reducing setup time.
Stability and durability: With a total weight of 5600 kg and linear guides, the machine offers stability and safety under heavy-duty conditions.
Efficient cooling: Advanced cooling and automatic gearbox and guideway lubrication systems reduce tool wear and improve surface finish.
Cost-effectiveness: Compact dimensions of 3700x1800x2100 mm and energy-efficient motor help reduce operating costs while maintaining high performance.
Wide range of applications: Suitable for machining various materials, from light metals to high-strength alloys, within a single production cycle.
Safety and reliability: Siemens components and servo drives ensure long service life and stable operation under demanding conditions.
Easy integration: Compatible with CAD/CAM systems and automation options for seamless integration into production lines.
Operator ergonomics: Full enclosure, chip conveyor, 24V halogen lighting, and included service tools enhance safety and user comfort.
Flexible configuration: Optional automatic part ejector and advanced control systems (Siemens 828D or Fanuc Oi-TF) adapt the machine to specific production needs.
Optimised design: Compact structure and high dynamics make this metal CNC lathe an ideal solution for workshops with limited space.

The CNC Metal Lathe CORMAK CK7160X1000 LT12 Driven Tools is the perfect solution for production plants requiring a precise, multifunctional machine for both batch and single-part machining.

Structure and technology of the CNC Lathe CORMAK CK7160X1000 LT12

The CNC Lathe CORMAK CK7160X1000 LT12 Driven Tools is designed for durability, precision, and ease of operation. Key components include:

Structure and bed

The slant bed provides high rigidity and efficient chip evacuation, minimising vibration during machining. The maximum turning diameter over the bed is 600 mm, over the carriage 390 mm, and maximum workpiece length 1000 mm, allowing stable machining of medium-sized components.

Spindle and drive

The spindle with a 52 mm bore and maximum speed of 3000 rpm, powered by an 11 kW motor, ensures excellent cutting performance. The 210 mm hydraulic 3-jaw chuck provides secure workpiece clamping.

Guides and drives

Linear guides and precision Siemens servo drives in X/Z axes (travel 800 mm) provide smooth movement and high dynamic performance while minimising positioning errors.

Control system

The standard Siemens Sinumerik 808D control (optional Siemens 828D or Fanuc Oi-TF) with USB and RS-232 interfaces allows precise programming and easy CAD/CAM integration. The control panel with IP65 protection rating ensures reliability in harsh workshop environments.

Precision and performance

The industrial lathe CORMAK CK7160X1000 LT12 Driven Tools offers outstanding precision thanks to 0.001 mm positioning accuracy and advanced CNC control. The driven tools and 12-position turret enable complex operations such as milling and drilling in a single setup, reducing cycle time and increasing productivity. The 11 kW motor ensures stable cutting even under heavy loads.

Applications of the CNC Lathe CORMAK CK7160X1000 LT12

The CNC Metal Lathe CORMAK CK7160X1000 LT12 Driven Tools is used in demanding industries such as:

Automotive industry: Production of shafts, bushings, and gear components.
Machinery industry: Turning and milling structural parts for machines and equipment.
Aerospace industry: Precision machining of engine components.
Medical industry: Manufacturing high-precision components for medical equipment.
Production workshops: Batch and single-piece jobs requiring flexibility and accuracy.

Thanks to its driven tools and compact structure, the slant-bed CNC lathe is an ideal choice for production facilities with limited space, requiring a multifunctional machine.

CNC control systems – Siemens Sinumerik 808D, 828D and Fanuc Oi-TF

The CNC Lathe CORMAK CK7160X1000 LT12 Driven Tools offers professional CNC systems from renowned manufacturers such as Siemens and Fanuc, providing precision, performance, and ease of operation.

Siemens Sinumerik 808D – compact control for standard applications

Sinumerik 808D is an economical CNC control for metal lathes, providing:

Intuitive interface: Dedicated keypad and clear graphical display make programming and operation easy.
High reliability: IP65 protection rating ensures stable operation in tough workshop environments.
Advanced functions: Supports turning cycles and CAD/CAM integration.

Why choose CORMAK?

As an experienced manufacturer of CNC machines, CORMAK has been providing reliable industrial solutions for over 20 years. Our CNC metal lathes meet the highest quality standards, are CE certified, and supported by professional service. With an extensive warehouse facility of over 15,000 m² and a team of experts, we offer comprehensive technical support and consultancy.

Experience: 16 years of servicing Siemens CNC control systems.
Quality: Machines compliant with European safety standards.
Support: Professional advice and fast warranty and post-warranty service.

By choosing an industrial lathe from CORMAK, you invest in precision, reliability, and long-term productivity.

Order the CNC Lathe CORMAK CK7160X1000 LT12 Driven Tools today!

Boost your production efficiency and machining precision with the CNC Lathe CORMAK CK7160X1000 LT12 Driven Tools. Contact our team for detailed information, a personalised quotation, or to arrange a machine demonstration.
