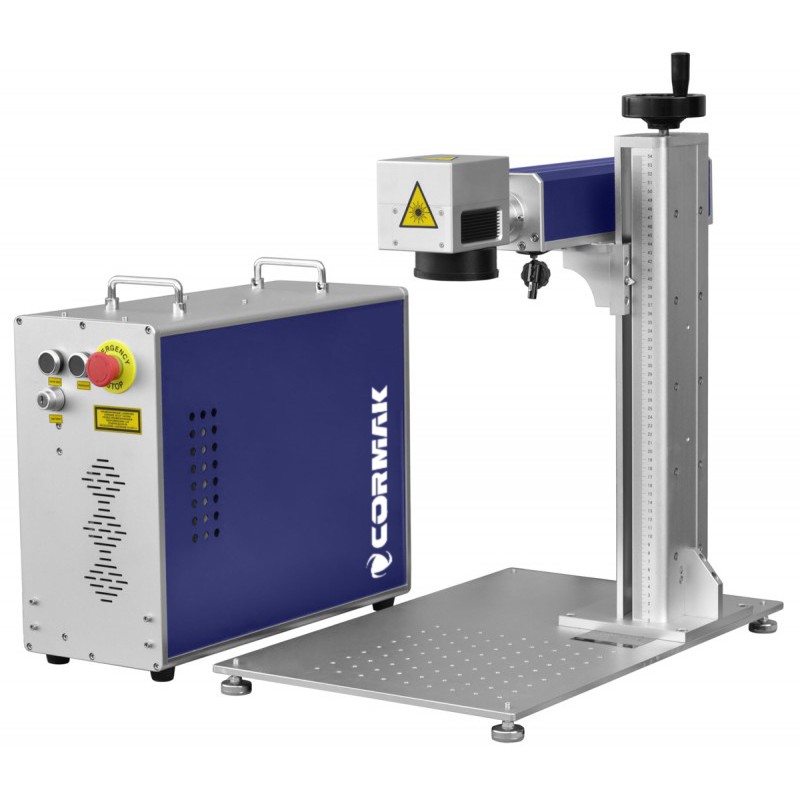

LF20 20W Fiber Laser Marking Machine

A laser fibre marker has broad capabilities. The device can machine standard metals and their alloys (iron, copper, aluminium, zinc, etc.), precious metals (gold, silver, titanium, etc.) and other metal materials. It is also great when it comes to machining non-metal materials such as plastics, colourful plexi, etc., and while marking electronic elements, statutory plates, watches, jewellery, aircraft models, packagings and many others.

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

€3,374.75

The lowest price of this product in the last 30 days before the discount was €3,287.01 gross

There are not enough products in stock

I agree to the terms and conditions and the privacy policy

Instructions in Polish
Service
Warranty 12/24 months
Delivery
150,00 PLN

The device is compliant with all safety requirements!

It has appropriate markings conforming to the regulations, as well as activates via a key.

Description:

Modest dimensions of the device allow for an easy transportation and mounting on a desk
High positioning accuracy
Laser does not require calibrating
Connection via the USB port
EzCad2 software in Polish and English
Support for the most popular graphics files
Low power consumption
Built-in fans provide cooling
Adjustable height of the laser (0–50 cm)
Optional: rotary axis

Technical data

Maximum power consumption	800W
Laser type - optical fiber	1064 nm/20W
Auxiliary laser (indicator) - red	<=5mW
Control software	EZCAD2 (English and Polish)
Input file formats	PLT, DXF, DWG, BMP, JPG, PNG
Working area	210×150 mm
Marking area (lens)	100×100 mm
Weight	48 kg
