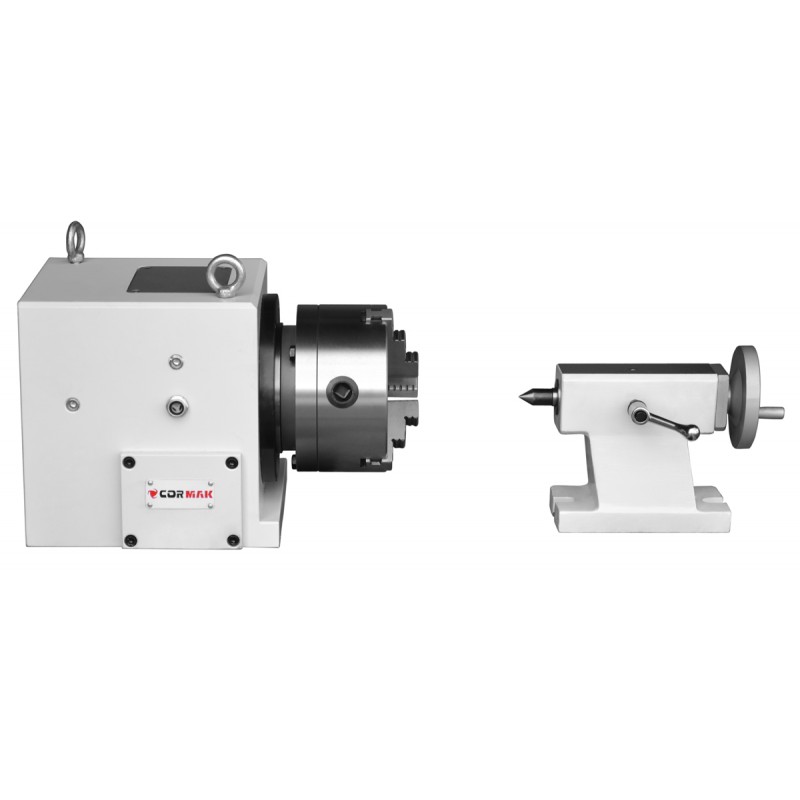

4th Axis CNC Rotary Indexer with Tailstock CORMAK

CORMAK 4th Axis CNC Rotary Indexer is a precision device designed for component machining in CNC systems. Available in three versions differing in lathe chuck diameter (Ø125 mm, Ø160 mm), centre height (110 mm, 125 mm, 145 mm) and maximum table load (from 100 kg horizontally and 50 kg vertically to 150 kg horizontally and 80 kg vertically).

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

To use the VIES group, you must have a VAT number.

Yes - show prices with VAT 0%

Are you interested in this product?

Ask for price

I agree to the terms and conditions and the privacy policy

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

4th Axis CNC Rotary Indexer with Tailstock CORMAK

CORMAK 4th Axis CNC Rotary Indexer is a precision unit enabling machining of components within CNC systems. It is available in three versions that differ by lathe chuck diameter (Ø125 mm, Ø160 mm), centre height (110 mm, 125 mm, 145 mm) and maximum table load (from 100 kg horizontally and 50 kg vertically to 150 kg horizontally and 80 kg vertically).

All models are fitted with a worm gear with a 1:90 ratio and require an air pressure range of 4–6 bar. The maximum rotational speed is 11.1 rpm, and the tailstock sleeve diameter is Ø16 mm or Ø20 mm depending on the model. The unit weight ranges from 50 kg to 90 kg.

Key features:

Lathe chuck diameter: Ø125 mm, Ø160 mm
Centre height: 110 mm, 125 mm, 145 mm
Maximum table load: From 100 kg horizontal and 50 kg vertical to 150 kg horizontal and 80 kg vertical
Worm gear: Ratio 1:90
Air pressure: 4–6 bar
Maximum rotational speed: 11.1 rpm
Tailstock sleeve diameter: Ø16 mm or Ø20 mm (depending on model)
Unit weight: 50 kg – 90 kg

Applications:

The CORMAK 4th Axis CNC Rotary Indexer with Tailstock is an ideal solution for workshops and production plants focused on high-precision machining, where rotation of components in CNC systems is required in multiple positions.

Why choose the CORMAK 4th Axis CNC Rotary Indexer?

Precision engineering: Accurate positioning of components guarantees excellent machining quality.
High versatility: Multiple configurations available, allowing adaptation to various machining requirements.
Reliability and efficiency: Durable construction and low air pressure requirements ensure long service life.

Technical specifications:

Lathe chuck diameter: Ø125 mm, Ø160 mm
Centre height: 110 mm, 125 mm, 145 mm
Maximum table load: 100 kg to 150 kg horizontal, 50 kg to 80 kg vertical
Gear system: Worm gear, 1:90 ratio
Air pressure: 4–6 bar
Maximum rotational speed: 11.1 rpm
Tailstock sleeve diameter: Ø16 mm or Ø20 mm (depending on model)
Weight: 50 kg – 90 kg

By investing in the CORMAK 4th Axis CNC Rotary Indexer with Tailstock, you gain a reliable tool for precision CNC machining of complex parts.

Technical parameters
Centre height	110 mm	125 mm	145 mm
Lathe chuck	Ø125 mm	Ø160 mm	Ø160 mm
Table T-slot width	10 mm	10 mm	100 mm
Worm gear ratio	1 : 90	1 : 90	1 : 90
Tailstock sleeve diameter	Ø16 mm	Ø20 mm	Ø20 mm
Maximum speed	11.1 rpm	11.1 rpm	11.1 rpm
Air pressure	4 – 6 bar	4 – 6 bar	4 – 6 bar
Maximum table load, horizontal	100 kg	150 kg	150 kg
Maximum table load, vertical	50 kg	80 kg	80 kg
Weight	50 kg	80 kg	90 kg
